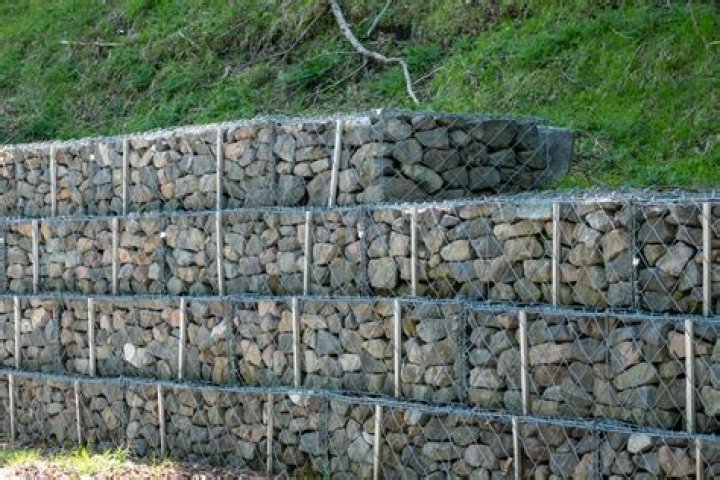

How tall can a gabion wall be

Properly constructed, the gabion wall can extend 30 feet high. This requires following proper building procedures but does produce a wall than can stabilize a high bank of soil. The open nature of the stone-filled baskets allows water to drain through the structure and can be channeled away from the soil wall.

How high can a gabion wall be?

Below photos include examples of gabion retaining walls up to 10.0m high and constructed using various wire diameters. And Small gabion walls should be designed on the same principle as a gravity mass wall, no allowance being made for the strength or mass of the wire mesh.

How deep should a gabion retaining wall be?

Most gabion retaining walls don’t need concrete foundations Depending on the wall height, a 50mm to 100mm layer of compacted 20mm road base, crushed from either blue metal or basalt rock is all that is required for most gabion walls.

Do gabion walls need foundations?

Gabion structures, whether walls or fences, do not need a concrete foundation. However, they do need some work under the surface. Otherwise, as heavy as they are, they would be easy to topple over. … Unlike many other walls, Gabion does not require a concrete foundation.

How do you size gabion walls?

The standard design for a gabion wall is a pyramid. In general, for every 1m increase in wall height, the bottom row basket depth should be increased by half a metre. For a 2m high wall the bottom row should be 1.5m deep and the top row should be 1m deep. It is still standard to use 3mm wire thickness for both rows.

How do you fill a gabion?

For gabions placed on the ground, you can simply wheelbarrow your rock filling directly into the top of the basket then attach the lid mesh. You do not require any loaders or bobcat’s to scoop the rock and fill the basket from an unmanageable height.

What are the disadvantages of gabions?

Disadvantages/Problems Gabions are more expensive than either vegetated slopes or riprap. The wire baskets used for gabions may be subject to heavy wear and tear due to wire abrasion by bedload movement in streams with high velocity flow. Difficult to install, requiring large equipment.

Are gabion walls cheap?

Gabion walls are cheap, long-lasting, and easy to install! While there are a few instances where a Gabion wall might need a foundation, most Gabion walls don’t need any sort of foundation. All you need to do is build the baskets and fill them with your stones or other filler materials.

Do gabion walls attract snakes?

Gabion walls, if just stacked stone, are a place that snakes do enjoy, but don’t let this put you off, just be aware. Snakes have plenty of other places they visit around the home, but you’ve still got to have a home right?

How long do gabion walls last?

A gabion wall’s lifespan depends on the type of wire used and the amount of salt spray it is exposed to. “Something that is very coastal tends to rust out like any metal a little quicker,” Jurgensen says. “The further inland you go the longer these tend to last but 50 to 100 years is the typical lifespan.”

Article first time published on

How do you build a gabion retaining wall?

1. STEP 1 – LAYING OUT THE SITE. …
2. STEP 2 – PROVIDE A FIRM AND LEVEL BASE. …
3. STEP 3 – GABION REINFORCEMENT – INSTALL SUPPORT COLUMNS. …
4. STEP 4 – ASSEMBLING THE GABION BASKETS. …
5. STEP 5 – FILLING THE GABION BASKETS. …
6. STEP 6 – ADDING LAYERS.

How do you cut a gabion?

Curved gabion wall with seating.

How do you support a gabion wall?

1. Free standing or retaining walls should not exceed the 2:1 ratio. …
2. Non retaining walls less than the 2:1 ratio, will need internal supports to prevent collapse. …
3. Gabion support posts must extend to at least 1.5 x Depth from the top of the gabion basket.

Can gabion walls fall over?

Possible wind and impact loads need to be considered and the design revised to accommodate these loads on the gabion retaining wall. Temporary excavations have the potential to collapse rapidly and without warning, and may become unstable during wet weather.

What size gabions do I need?

For architectural uses such as free standing walls and cladding, 4mm should be used to give the straightest face. 4mm gabions are also used for walls over 3m in height and in areas where vandalism is rife. If you’re inexperienced with gabion baskets, you may want to consider a 3mm with 4mm face basket.

What gauge wire is used for gabions?

Gabion baskets shall be a minimum of 11 gauge (0.118 in – 3.00 mm) galvanized steel wire, fabricated into hexagonal triple-twist mesh openings no larger than 3 ¼” x 4 ½”. Selvedge wire running through all edges shall be a minimum of 9 gauge (0.148 in – 3.76 mm) galvanized steel wire.

What is the cheapest way to build a retaining wall?

The cheapest type of retaining wall is poured concrete. Prices start at $4.30 per square foot for poured concrete, $5.65 for interlocking concrete block, $6.15 for pressure-treated pine, and about $11 for stone. Installation or supplies, such as drainage stone or filter fabric, are not included.

What is a gabion mattress?

The DURA-FLEX gabion mattress is a mattress shaped container manufactured from heavily galvanized wire to form a flexible and effective surface protection to defend against erosion and scouring. … The lid is formed either by a single sheet or in rolls of a specified length from the same wire as is in the main panel.

Are gabion walls sustainable?

Sustainable Gabions do not have a negative impact on the environment compared to concrete structures, which can leave a high carbon footprint. Carbon footprint analyses show that the use of Gabions can reduce CO2 emissions by up to 80%.

What is the best fill for gabion baskets?

Interlocking, angular stones are the best for filling the baskets (Class 6G). The stones have to be around 100mm – 200mm in order to be suitable for the cages, so they do not slip through the holes.

Can you fill gabions with bricks?

Old bricks and blocks These are a great option for filling gabion baskets very cheaply. You may be able to buy these for a cheap price from local constructions companies or building sites (as they may have broken bricks or deliveries they need to get rid of).

What size is gabion rock?

The rock we supply is un-weathered and solid without flaking or weathering evident. The correct size to be used must be 100-250 mm minimum size for gabions (1m high baskets).

How do I get rid of snakes in my stone wall?

Seal up any crevices or holes in stone walls so snakes won’t crawl in [source: Heyne]. Seal cracks in the house’s foundation, patio and stoop, to keep snakes out of these warm hiding places [source: Minnesota].

How do you keep snakes out of stone walls?

Avoid using damp mulch or large stones; try smaller pebble or river-rock instead. Also, retaining walls made of loose stone, such as limestone, or old railroad ties offer ideal hiding spots for rodents and will attract snakes. Replace with solid retaining wall bricks and seal cracks if they develop.

How do you keep snakes out of rock walls?

1. Replace loose rock walls. …
2. Keep plant material short. …
3. Remove or relocate other debris such as piles of rocks, bricks, brush, or wood.
4. Repellents such as mothballs or sprays do not work. …
5. Fencing or screening with holes less than ¼-inch keep snakes out.

Can you build a house with gabion walls?

Gabion cage walls can add thermal mass to homes without adding significantly to the carbon footprint of a home like concrete can. Gabion walls are retaining walls built by stacking stone in a gabion cage or gabion basket that can serve many purposes but are most often used to create tiered or leveled ground in gardens.

Do gabion baskets rust?

Galvanized gabion baskets will eventually rust, yes. The zinc-iron coating that prevents rusting doesn’t last forever.

Can you bend gabions?

You can easily create curved gabions walls by using shorter length gabions and slightly modifying the gabions onsite allowing you to kick in the corners to obtain your desired radius. Below are some sample layouts of how to achieve a curved gabion wall.

Is a gabion wall cheaper than a brick wall?

Gabion retaining walls are easy to design and build and customize to fit your unique design for your space. Comparatively speaking, they tend to run a lot cheaper than other standard walls or fences and can even be DIY’d with ease—something you could hardly do with a traditional brick and mortar wall.

Can gabion walls be load bearing?

Although gabion walls are common, they are predominantly used as retaining walls due to their strength and permeability. There is little information on the use of gabions as load bearing walls for buildings. … The challenges of simulating gabion walls will be also discussed.

Can you fill gabions with soil?

A Gabion basket is one of the most straightforward things that someone can make for their garden. It is merely a large mesh cage that is filled with earth. You can fill them with sand and soil, rocks, or concrete.
