How should an expansion tank be installed?
How should an expansion tank be installed?

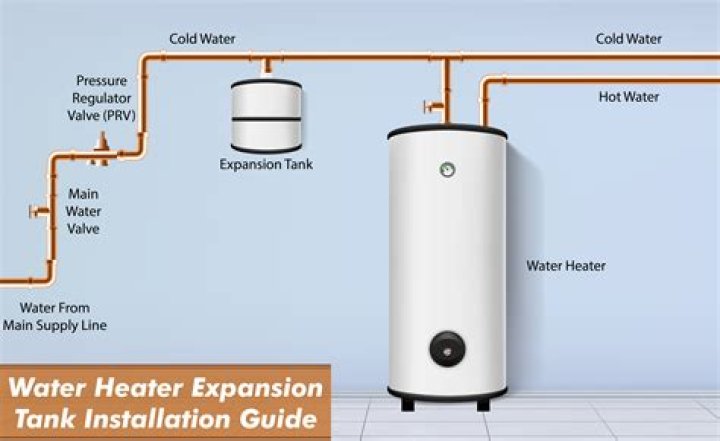

An expansion tank is generally installed directly above the water heater by means of a tee-fitting installed in the cold water delivery pipe. The expansion tank is usually installed horizontally, though it is acceptable to install it vertically if it is necessary because of space limitations.
Where can I buy a new water heater expansion tank?
You can buy a new water heater expansion tank from the local hardware supply store or order online. Turn the water supply to the heater off by closing the shut off valve. The shut off valve may be near the heater or further up on the pipeline. If you don’t find it there, you can shut off the main water to the entire house.
Where to put an expansion tank in a condo?
For complex tank sizing for multiple apartments/condos, please contact the factory for sizing information. The potable water expansion tank shall be installed in the cold water service pipe line on the supply side of the water heater (or water storage tank).
How does an extrol 4.4 gallon expansion tank work?
Extrol 4.4-Gallon Expansion Tank at SupplyHouse.com. Expansion tanks work by equalizing pressure throughout the system. An expansion tank is a small tank divided in two sections by a rubber diaphragm. One side is connected to the pipes of the heating system and contains water.
When does an expansion tank need to be replaced?
If the entire tank is warm, it is likely that the tank has completely filled with hot water, which occurs only if the diaphragm fails. If this happens, the tank must be replaced immediately. Online retailer SupplyHouse.com offers a large selection of expansion tanks and accessories from the top manufacturers in the industry.
What is the pressure setting for expansion tank?
Ideally, an expansion tank should be set at a certain pressure depending on the height of the unit. Usually the pressure is around 12 Pounds Per Square Inch (PSI).
What size expansion tank needed?
Expansion Tank Size Required = 2.34 qts. In a 13 qt System a 2.34 qt expansion tank would be required. In a situation where a large enough tank isn’t available a recovery tank can be used in order to take up some of the expansion volume needed.
How do you calculate the size of a tank?
To calculate the size of the aquarium you must do the following calculation: Length (cm) x Width (cm) x Height (cm) / 1000 = Size of Aquarium in Litres. For example: 120cm x 45cm x 45cm / 1000 = 243 litres. To arrive at this you might need to convert inches to cm which is 1 inch = 2.54cm. For example: 12 inches x 2.54 = 30.48cm.
What is the purpose of an expansion tank?
Expansion Tanks. 182. The purpose of an expansion tank is to keep the pipes and other apparatus constantly full of water. The water in the heating system expands when heated, and if it fills the apparatus when cold it will overflow it when hot, and the expansion tank serves to receive this overflow.
