How many types of laryngoscope blades are there

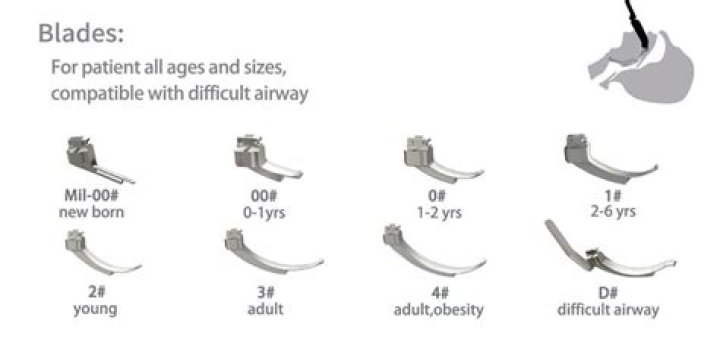

Two basic styles of laryngoscope blade are currently commercially available: the curved blade and the straight blade. The Macintosh blade is the most widely used of the curved laryngoscope blades, while the Miller blade is the most popular style of straight blade.

How many types of laryngoscope are there?

The two main types are the curved Macintosh blade and the straight blade (i.e., Miller with a curved tip and Wisconsin or Foregger with a straight tip). All blades are available in different sizes for every age of patients. The main injury caused by using laryngoscopes is damage to the teeth.

How do I choose a laryngoscope blade?

1. With Laryngoscope Blade held next to patient’s face. Blade should reach between lips and Larynx (or lips to angle of jaw) …
2. Better to choose a blade too long than too short. Estimate 1 cm longer than needed.
3. Video Laryngoscopy Blade (e.g. Glidescope)

What are laryngoscope blades?

Laryngoscope blades are used as the primary tool for examination of the interior of the larynx and for placement of an endotracheal tube. Main Feature: The Miller Laryngoscope Blade . . . The most popular of the straight types.

How do you size a laryngoscope blade?

The blade length excluding the base is measured by placing the proximal blade at the child’s upper incisor teeth with the blade tip extending to the angle of the mandible. If the blade tip is within 1 cm proximal or distal to the angle of the mandible, it is an appropriate blade length for intubation.

What is a Miller laryngoscope?

The Miller laryngoscope is a straight blade designed to obtain a view of the vocal cords by directly lifting the epiglottis. It has useful application in ‘floppy’ airways making it popular within paediatric anaesthesia. The Miller laryngoscope is the most commonly used blade today.

How many types of endotracheal tubes are there?

Types of endotracheal tubes include oral or nasal, cuffed or uncuffed, preformed (e.g. RAE (Ring, Adair, and Elwyn) tube), reinforced tubes, and double-lumen endobronchial tubes. For human use, tubes range in size from 2 to 10.5 mm in internal diameter (ID).

What is the size of laryngoscope blade for 30 weeks?

Using this rule, a 2.5mm ID endotracheal tube would be used for an infant born at 25 weeks’ gestation, a 3.0mm ID for an infant born at 30 weeks and a 3.5mm ID for an infant born at 35 weeks’ gestation.

What is a McCoy blade?

The ‘McCoy-style’ blade is based on the standard Macintosh blade. It has a hinged tip that is operated by a lever mechanism on the back of the handle. It allows elevation of the epiglottis while reducing the amount of force required.

What size is a laryngoscope?

A laryngoscope with a straight blade (size 1 [10 cm] for term infants and larger pre term infants, size 0 [7.5 cm] for premature infants < 32 w or 00 [6cm] for extremely low birth weight infants) is preferred. Some experienced operators use curved blades.

Article first time published on

When do you use a Miller laryngoscope?

However, the Miller provides a better view of the glottis in a patient with a long, floppy epiglottis, or an anterior larynx. Therefore, this laryngoscope is preferred in infants, pediatric patients, and patients with an anterior larynx [1].

Who makes GlideScope?

We joined the Roper Industries family (US ticker symbol ROP) in December 2009. Our three core brands: GlideScope®, BFlex™ and BladderScan® have achieved worldwide recognition as industry leaders in the airway management, single-use bronchoscopy, and bladder volume measurement device markets.

What blade do you use to intubate an infant?

Therefore, straight laryngoscope blades are recommended for use in children and infants under 2 years of age. In neonatal tracheal intubations, Miller blade is the most frequently utilized blade (6).

What is Murphy's eye?

The Murphy eye is a hole at the tip of the endotracheal tube to prevent tube obstruction if the beveled end of the tube is obstructed by mucus or sealed by contact with the tracheal wall. By the 1950’s it was present on most Magill endotracheal tubes, and the eponyms of ‘Murphy eye’ or ‘Murphy tube’ became standard.

What are the types of tracheostomy?

• Single Lumen Tubes.
• Double Lumen Tubes.
• Uncuffed Tubes.
• Cuffed Tubes.
• Fenestrated Tubes.
• Adjustable flange tubes.

What are the 3 phases of anesthesia recovery?

The postanesthesia period may be separated into three levels of care: Phase I, Phase II, and Extended Care. 5 Each phase of recovery may occur in one PACU or in multiple locations, which may include the patient’s room (see Table 1).

What is a polio blade?

The blade is mounted at 135 degrees to the handle. This equipment was originally designed to facilitate intubation in patients encased within iron lung ventilators during the polio epidemic. It is also useful in patients with barrel chest, restricted neck mobility or breast hypertrophy.

What is the difference between Miller and Macintosh blades?

The laryngoscope blade’s design has many forms, and the two most commonly used blades are the Macintosh and Miller blades, which are curved and straight, respectively. The Macintosh blade is easier to operate, while the Miller blade provides a better view of the vocal cords.

How do you use laryngoscopes?

1. One must first properly position the patient. …
2. Next, one must open the patient’s mouth by using the right hand. …
3. The laryngoscope is then inserted in the right side of the mouth, and the blade is then used to sweep the tongue to the left, then the blade is smoothly advanced to the epiglottis.

How do you intubate a Mac blade?

1. Place patient into sniffing position.
2. Use “scissor” technique with right hand to open mouth.
3. Insert laryngoscope blade into right side of mouth.
4. Slowly advance blade into mouth while performing “tongue sweep”
5. Identify epiglottis.
6. Advance tip of blade into vallecula.

How long should it take to intubate a neonate?

The Neonatal Resuscitation Program recommends a 20-second limit for intubation attempts. Intubation attempts by junior doctors are frequently unsuccessful, and many infants are intubated between 20 and 30 seconds without apparent adverse effect.

What does Mr SOPA stand for?

In the setting of inadequate ventilation, the most recent NRP guidelines devised the MR SOPA acronym (Figure 1) to remind resuscitators to initiate ventilation corrective steps: M (mask adjustment), R (reposition airway), S (suction mouth and nose), O (open mouth), P (pressure increase), A (alternate airway) [5].

Why do you intubate a baby?

Intubation may be done to help the baby breathe, to give special medicine into the lungs such as surfactant, to suction the airways/lungs, for surgery, or to aid when there is an obstruction (airway blockage).

Which laryngoscope is most commonly used?

The most common laryngoscope blade used for intubation in adults is the curved Macintosh blade (Figure 34-4). This is inserted into the right side of the mouth to displace the tongue laterally. The tip of the blade sits in the vallecula and is lifted forward to elevate the epiglottis and expose the laryngeal inlet.

Why is Miller laryngoscope used in children?

Views with the MAC blade were better when placed into the vallecula compared with under the epiglottis. The Miller (straight) laryngoscope blade is regarded as the preferred blade to expose the laryngeal inlet in infants and children during tracheal intubation.

How many employees does verathon have?

Verathon Inc has 400 total employees across all of its locations and generates $110.24 million in sales (USD).

How much is a GlideScope?

In comparison, the analysis argues that the Glidescope by Verathon, an endoscopic tool, has a price markup of 4361%. The device sells for nearly $10,000 and, according to the post, has a cost of raw materials for the Glidescope was approximately $113.22.

What is a GlideScope used for?

The GlideScope® videolaryngoscopy device is frequently helpful in airway management, especially in achieving a better view of the glottis in difficult intubations. It is currently used as a primary or a rescue device for several kinds of patients, from paediatric cases to those with cervical spine immobilisation.

Are et tubes reused?

Conclusions: Endotracheal tubes can be reused sterilized safely. The physical integrity of ETT cuffs may be compromised by glutaraldehyde or ethylene oxide sterilization treatments.

What is a cuffed ET tube?

The cuff of the endotracheal tube (ETT) is designed to provide a seal within the airway, allowing airflow through the ETT but preventing passage of air or fluids around the ETT.

Should you cut an ET tube?

The use of cut endotracheal tubes should be avoided in initial resuscitation of the burned patient.
