How many turns on a garage torsion spring

A rule of thumb with springs is that four quarter turns equals a full revolution and the spring needs to be tightened a full revolution for every foot of door height (e.g. 7-1/2 foot door = 7 revolutions +2 (30 quarter turns).

How many cycles should a garage door spring be?

The average garage door spring, if correctly installed, should last about 10,000 cycles of opening and closing. If you only go in and out of your garage once a day, that means you should expect a broken garage door spring around 14 years after the spring is first installed.

What size torsion springs do I need?

Length of 10 coils (in Inches)Length of 20 Coils (in Inches)Wire Size1 3/82 3/4.1351 7/162 7/8.1421 1/23.1481 9/163 1/8.156

Do torsion springs work in both directions?

Torsion springs are helical springs that exert a torque or rotary force. … Depending on the application, a torsion springs can be designed to work in a clockwise or counter-clockwise rotation, thus determining the direction of the wind.

How long should a torsion spring last?

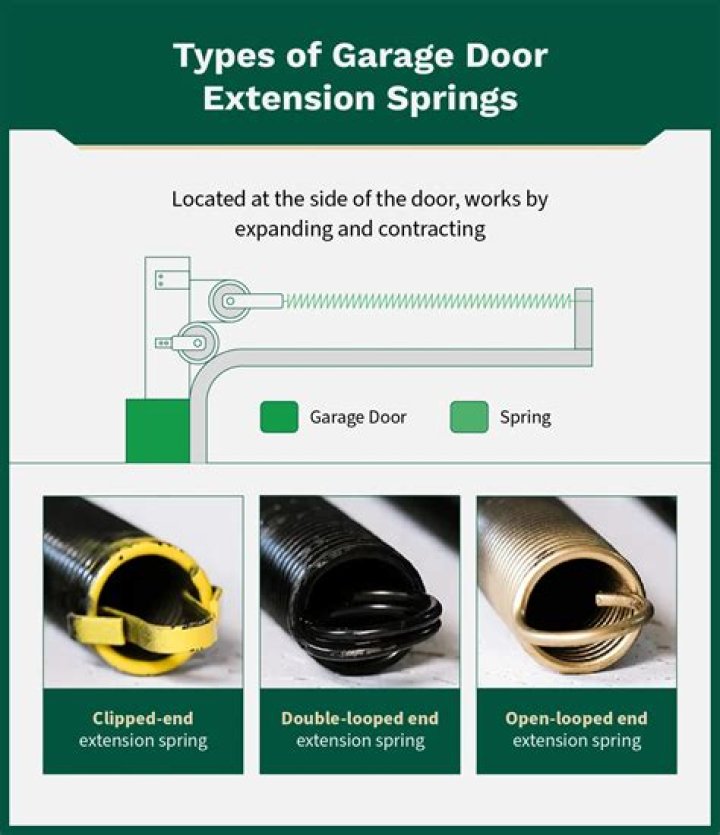

Torsion springs usually have 5,000-20,000 cycles which means they can last between 7 to 12 years (and even more). Extension Springs’ Life Expectancy: Extension springs are installed at the side of the door and act extend, rather than contract (as does the torsion spring).

How many turns on a 9ft garage door spring?

A rule of thumb with springs is that four quarter turns equals a full revolution and the spring needs to be tightened a full revolution for every foot of door height (e.g. 7-1/2 foot door = 7 revolutions +2 (30 quarter turns).

Which way do you turn torsion springs?

For a correct solution, a right-hand wound torsion spring should be mounted on one side, and a left-hand wound one on the other. A torsion spring must always be loaded in the direction of the spring wire so the spring body closes.

Does the length of a torsion spring matter?

Replacing a too-big or too-small torsion spring with the right size will balance the door and make it safe again. The door will rise with less effort and remain safely in place. The garage door opener may also need to be replaced if it has been damaged by springs that are too big or too small.

How can I make my coil spring stronger?

If you make the wire diameter larger, you will make the spring stronger and if you make it smaller, you will make it weaker. This is because, by making the wire diameter larger, you are also making the spring’s coils tighter which reduces the spring index.

How do I know if my garage door is balanced?

1. Close the door from the inside.
2. Detach the garage door from the opener using the red manual release rope.
3. Move the door open and closed manually.
4. Then lift the door halfway and release. If it stays in one place, it is properly balanced. If it closes or snaps open, the door is off-balance.

Article first time published on

How do you fix a unbalanced garage door?

1. Step 1: Close the door from inside the garage.
2. Step 2: Detach the door from the opener. …
3. Step 3: Move the door manually open and closed. …
4. Step 4: Lift the door by hand to the halfway point and carefully release it.

What do the numbers on a torsion spring mean?

The color code on a torsion spring indicates whether it is a “right wind” or “left wind” spring, with black indicating right wind and red indicating left wind. Beyond that the torsion spring is color coded so that technicians can determine the thickness, or gauge, of the wire.

Should garage door torsion springs be the same length?

In 75% of cases, you’ll want both springs to be the same dimensions; that way, they both wear out evenly and can then be replaced at the same time. Interestingly, the same size springs from two different manufacturers are sometimes different.

Can I use a longer torsion spring?

If your garage door springs have lasted less than five years, or if you plan to live where you are for many years, you may want to try the extra long life torsion springs. By using larger springs, you can, in most cases, quadruple your spring life while only doubling the cost of the springs.

How do I know if my garage torsion spring is bad?

1. Your Garage Door Won’t Open All the Way. A little troubleshooting can often solve this problem. …
2. Door Slams Down Quickly. Torsion springs balance the weight of your garage door, preventing it from closing too quickly. …
3. Appearance Changes in Springs.

What does it cost to repair a garage door spring?

Garage Door Springs Cost Garage door spring repair costs an average of $250 for both materials and labor with a typical range between $150 and $350 which includes replacing two springs. For multi-door garages or installs needing other components replaced, you might pay up to $500.

Which spring goes on which side of garage door?

The Winding of the Spring This is pretty easy to determine. Basically, door springs can either wind to the left or to the right. Right-hand winding springs wind in a clockwise manner with the end wire on the right, while left-hand winding springs go anticlockwise with their end wire on the left.

How do I know if my torsion spring is left or right wing?

In most cases, you can determine the wind of your garage door torsion spring by using the color-coded system on the cones at the end of the spring. Usually, you will have two springs on your door, which will be color-coded. In MOST (not all) cases, the end on the right hand wind is red and the left hand wind is black.

Why does my garage door only have one torsion spring?

If you only had one, the door would be lifted unevenly. In short, order that uneven pressure would create all kinds of problems. But because the torsion spring sits on the wall above the center of the door and runs parallel to the door, you really only need one.

How do I adjust garage door springs?

To adjust your garage door’s side-mounted springs, first, open your door fully and secure it in place with a c-clamp below the bottom roller. Once your garage door is secured, remove the spring hook from the track hanger, which will allow you to move the hook and adjust the spring’s tension.

How does number of coils affect spring constant?

Coil count is a part of the larger equation of spring rate, which also includes the spring diameter, wire diameter and material. When it comes to compression springs, the number of coils is twofold, it can be divided into active and inactive coils. … The more coils added to a spring, the lower the spring rate will be.

Are shorter springs stiffer?

Shorter springs have higher a higher strain for the same amount of elongation and since F (force) is affected by strain, the k value must increase.

How is spring strength calculated?

The spring force formula is expressed through the equation: F = – kx.

How much force does a garage door spring have?

If your garage door weighs 250 pounds, your torsion springs need to exert a force of 250 pounds to make the door easy to open and close.

How much weight can a garage door opener lift?

A 1/2 horsepower garage door opener can lift approximately 300 pounds, which is the average weight of a two-car steel door. A one-horsepower opener can easily lift approximately 400 pounds. The greater the horsepower, the faster the opener can lift the door, although some are designed to lift faster than others.

How much does a double car garage door weigh?

Garage door weight is determined by size, material, steel gauge, thickness, insulation and glass. The average modern steel single car door weighs around 125 pounds while double car doors weigh about 200 pounds.

How heavy should my garage door feel?

Does your garage door feel heavy when raises manually? Well, it shouldn’t. When a garage door is properly balanced it should open with very little effort or muscle. A garage door should also balance at minimum at least in the middle.

Why is one side of my garage door higher than other?

The most common cause of an uneven garage door is worn out cables that sag, so checks to make sure your cables are still in good condition. If not, you may need to call a professional to replace them.

What does it mean to balance a garage door?

When a garage door is properly balanced, the springs completely support the door, and the door remains in place with minimal upward or downward movement. If the door falls to the lower position quickly, the spring tension is too weak. If the door continues to rise, the spring tension is too strong.
