How does trip lever bathtub drain work?
How does trip lever bathtub drain work?

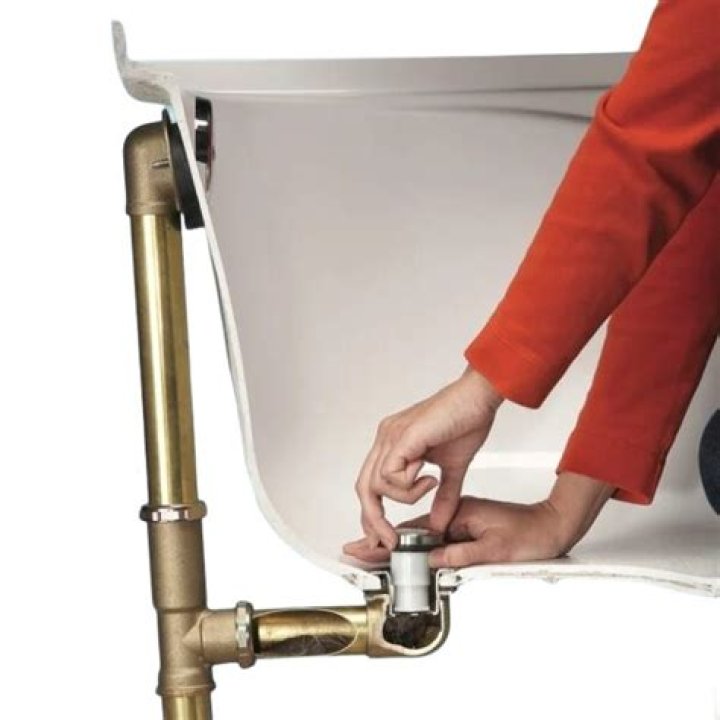

A bathtub with a trip-lever drain stopper works using an internal plunger that moves up and down inside the waste-and-overflow tube to pivot a drain stopper in the drain opening. When the plunger is down, it presses down on the stopper lever and forces the stopper up into the open position.
How do you use a bathtub drain lever?
There are also bathtub drain stoppers that can be operated with levers or knobs, including pop-up drain stoppers. A rod connects the lever or knob to a rocker arm that controls the stopper. Simply lower the lever or twist the knob to lower the stopper and lift or twist in the opposite direction to lift the stopper.
How do you snake a trip lever on a bathtub drain?
1). Slowly withdraw the trip waste mechanism and plug from the overflow pipe. Clear hair from the mechanism and run hot water down the train to flush away any debris. Then, open the trip lever on the cover plate, and feed the lever and plug back into the overflow pipe.
What is the silver thing in a tub?
That is the tub drain overflow plate, though it’s actually above the drain, not the faucet. (The opening in this plate leads to a tube that prevents the tub from overflowing by allowing water to run out even if the drain in the bottom of the tub is stopped.)
What causes a tub to not drain?
What Causes a Tub to Drain Slowly? Typically the cause of a slow-draining bathtub is a clog that is restricting water flow. Clogs are usually made up of knotted hair, dirt, grease, and/or soap. They can be difficult to remove because hair can wrap around parts of the drain.
How do you remove drain lever from bathtub?
Wedge a 3/4-in. cold chisel into the cutout slot and pound counterclockwise with a hammer to free the stopper body (use caution when hammering so you don’t scratch the enameled tub). Completely unscrew and remove the stopper body.
How do you install a new bathtub drain?
Bathtub drain installation: Install the new stopper body Slide in a new gasket. Then roll a pencil-sized bead of plumber’s putty and press it around the underside of the new stopper body rim. Stick the jaws of 8-in. pliers into the stopper body grate and thread it into the drainpipe.
How to remove a bathtub drain stopper job?
All that’s left in this how to remove a bathtub drain stopper job is to install the new bathtub drain stopper body and stopper. Slide the new rubber gasket on top of the drainpipe under the tub and insert the new drain flange with plumber’s putty on it as shown here. Use the supplied bushing if the new threads are different from the old.
What’s the best way to replace a bathtub?
The 1-hole faceplate includes an adapter for replacing plates with 2 holes. The complete kit includes an overflow plate, bath drain strainer, washer and bushing. It is constructed of durable brass with a modern chrome finish. This item is sure to complement your existing fixtures. Loading…
Wedge a 3/4-in. cold chisel into the cutout slot and pound counterclockwise with a hammer to free the stopper body (use caution when hammering so you don’t scratch the enameled tub). Completely unscrew and remove the stopper body.
Bathtub drain installation: Install the new stopper body Slide in a new gasket. Then roll a pencil-sized bead of plumber’s putty and press it around the underside of the new stopper body rim. Stick the jaws of 8-in. pliers into the stopper body grate and thread it into the drainpipe.
How does a trip lever work in a bathtub?
Sometimes, however, the trip lever operates a horizontal rocker arm that works a pop-up drain plug that fits into the bathtub drain opening. In this case, the plunger device may be a type of spring that connects to the horizontal rocker arm.
Why do I have to hold drain lever down for tub to drain?
If you have to hold your drain lever down for the tub to drain it is more than likely the tension spring on the back of the overflow plate. You can replace just this plate at your hardware store for a few dollars.
