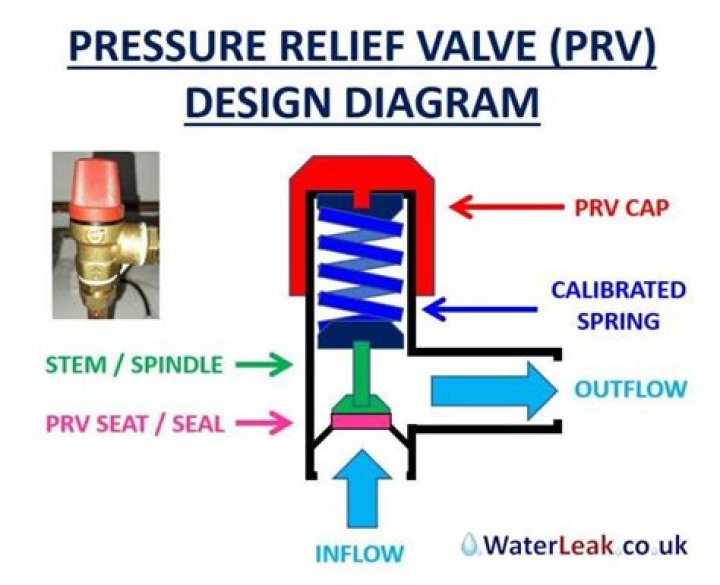

How does a water heater pressure relief valve work?
How does a water heater pressure relief valve work?
Some degree of excess pressure escapes through the water pipes connected to the water heater. In the event that it cannot, the pressure-relief valve triggers. By releasing some of the hot water and air, the valve lowers the pressure back down to safe levels.
Can a water pressure regulator be installed vertically?
Yes, you can mount a water pressure regulator vertically, however, it will wear-out more quickly. We can install for you steel pipe, concrete pipe, glass pipe, and all types of plastic pipe. Horizontal installation is recommended. However, valve can be installed in a vertical position.
Do you need a pressure release valve?
The primary purpose of installing a pressure relief valve is to protect life, property, and the environment. It’s a safety feature that stops too much pressure from rupturing your plumbing and causing injury. And one of the most dangerous situations is when there is too much water pressure in your water heater.
How do you adjust pressure relief valve?
With a slotted screwdriver, turn the screw in the center of the knob clockwise, until flow can be heard escaping from the internal valve. Slowly turn the screw counterclockwise until the flow from the relief valve stops. Turn the screw an additional 1/8 to 1/4 turn counter-clockwise. Replace the silver cap in the knob.
How much does it cost to install a water pressure regulator?
Water pressure regulators can be a fun project to DIY if you have the know-how. The part usually costs around $50, while hiring a professional plumber to install one ranges from $250-350.
How does a pressure reducing valve work on a hot water boiler?
In our photo at left the gold colored bell-shaped device pointed to by the red arrow is an automatic pressure-reducing & water feed valve for a hot water boiler. An arrow cast into the valve base shows the direction of water flow (from building supply at right into the boiler at left in this photo).
What should water pressure be at inlet valve?
A: The average water pressure at the inlet valve to a home should be about 40 to 50 psi, but your home may still experience a lower water pressure than ideal for any number of reasons. Where you notice it can help to determine the cause of the trouble and whether or not you can fix it yourself.
Where is the water pressure regulator in the House?
A water pressure regulator, if you have one, is usually located where the main water line comes into the house and after the main shut off valve.
What are the different types of pressure reducing valves?
Here we explain hot water boiler (hydronic heat) pressure reducing valves and types of manual and automatic water feeder valves used on hot water heating boilers, including when and how to add makeup water to a boiler.
How are flow control valves installed in a boiler?
Flow control valves such as the Bell & Gossett Flo-Control Valves V51843E series (Xylem brand) must be installed upright – with the operating stem or handle “up” and in the proper direction for hot water flow from the boiler into the heating zone piping as indicated by the arrow on the valve body.
What are the pressure reducing valves on a boiler?
1156F 1/2″ Bronze High Cap. Feed Water Pressure Regulator (Copper Press) 0858570 1156F 1/2″ Bronze High Cap. Feed Water Pressure Regulator (Copper Press) Questions? Call 1-888-757-4774
How does a boiler fill valve work in a hydronic heating system?
A Boiler Fill valve automatically fills and regulates the pressure in a hydronic heating system to a pre-set value. Water flow to the system will automatically stop when the pre-set value is reached.
How is a backflow preventer valve used in a heating system?
At a hot water heating system a heating system backflow preventer check valve is used to keep hot, high pressure water in the hydronic heating system from flowing backwards through a boiler water feed line into the building water supply – a sanitation concern.
