How does a quarter turn ball valve work?

How does a quarter turn ball valve work?

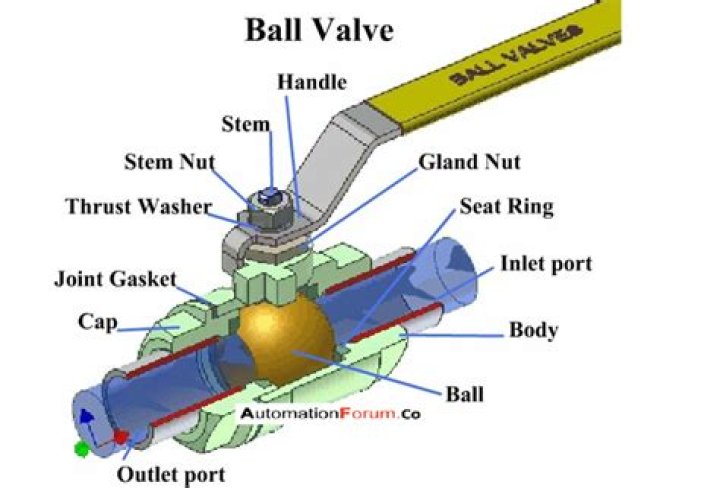

A ball valve is a shut off valve that controls the flow of a liquid or gas by means of a rotary ball having a bore. By rotating the ball a quarter turn (90 degrees) around its axis, the medium can flow through or is blocked. Moreover, they are more resistant against contaminated media than most other types of valves.

Are ball valves quarter turn?

A Ball valve is a quarter-turn rotational motion valve that uses a ball-shaped disk to stop or start flow. If the valve is opened, the ball rotates to a point where the hole through the ball is in line with the valve body inlet and outlet.

How can you tell if a ball valve is bad?

Ball valves don’t normally go “bad”….How do I know if I have bad valves?

1. Cold Engine. One of the most noticeable signs of worn or cracked valve stem seals will be just after a cold engine start.
2. Idle and Stop and Go Driving.
3. Off-Throttle Braking.
4. Oil Consumption.
5. Excessive Smoke.

Are ball valves directional?

VALVE ORIENTATION: Ball valves may be installed in vertical or horizontal pipe runs, they are bi-directional therefore flow direction is not critical, however the best practice is to set up the valve handle to point in the direction of flow whenever possible.

Can water shut off valves fail?

The most common failure found in an old shut-off valve is seizing. In extreme cases, the valve is so corroded that even a pair of pliers is useless. Another common failure is rubber stops or seals within the valve deteriorate and fail to abate the water flow completely.

Can you put a sharkbite on backwards?

General purpose, spring-loaded check valve prevents the reverse flow of water. Innovative push-to-connect design makes for quick and easy installation on PEX, copper, CPVC, PE-RT and HDPE lines. Can be installed horizontally or vertically. Ideal for working in tight spaces.

Can I install a ball valve upside down?

The preferred orientation of a globe valve is upright. The valve may be installed in other orientations, but any deviation from vertical is a compromise. Installation upside down is not recommended because it can cause dirt to accumulate in the bonnet.

What are three common valve failures?

In the failure analysis of a valvetrain, valve failures represent the most common problems. The major causes of valve failure are distortion of the valve seat, deposits on the valve, small tappet clearance, burnt valve, erosion of valves, heat fatigue, pitting, breaks, and wear [1, 2].

How does a quarter turn water shut off valve work?

Ball valves or quarter-turn valves operate via a handle on the valve stem that pivots a steel ball with a hole inside to control the flow of water. If the handle is in-line with the valve body, the valve is OPEN and water flows through the hole in the steel ball.

Which is better quarter turn valve or ball valve?

A partially open ball valve, however, can leave the silicone or PTFE seats on either end of the ball susceptible to deformity from uneven pressure. One advantage to quarter-turn valves such as ball valves is that they can be shut off quickly. The disadvantage is that this makes water hammer more likely.

What happens if you over turn a brass ball valve?

Many times a brass ball valve is damaged by a person attempting to over-turn the valve. If it turns more than 1/4 of a turn you have broken the valve! Typically there will be an arrow on the handle to indicate which direction to turn the handle for the desired affect. When opening or closing a brass ball valve do so slowly.

What happens if you turn on a water valve too quickly?

So always avoid turning on the valve fully, and too quickly. Always turn the handle just enough to let water gently refill the pipes. This will prevent water hammer and damage to your plumbing system from happening. If a ball valve is not ‘ exercised ‘ once in awhile (opened and closed) it may become frozen in place and hard to move.

What kind of quarter turn ball valve do I Need?

Lead-Free Compliant, 3/4″ Quarter Turn Ball Valve w/ Bulkhead Fitting, Thread Tape, and Polyester Wire . Only 20 left in stock – order soon.

How many turns does a brass ball valve need?

On the other hand, misuse routinely results in valve failure and an unexpected loss of water service. To open or close a brass ball valve on a water line requires only a quarter of one turn. Many times a brass ball valve is damaged by a person attempting to over-turn the valve. If it turns more than 1/4 of a turn you have broken the valve!

How does a quarter turn shutoff valve work?

They feature a stem with a rubber washer on the end, which is attached to the valve handle. When turned, the stem moves into the cavity of the valve, compressing the washer against the internal seat and forming a seal. Quarter-turn valves are a more recent addition to the plumbing arsenal, and employ a ball valve design.

What’s the difference between quarter turn and compression valve?

Compression Valve – Fully Closed. Quarter-turn valves are a more recent addition to the plumbing arsenal, and employ a ball valve design. A turn of just 90 degrees orients the hollowed-out ball inside to either block the water’s path, or allow full flow through the unit.
