How does a electrostatic speaker work
Electrostatic loudspeakers make use of a large, thin metal plate between two parallel screens. An amplified audio signal is impressed onto the screens, polarizing the metal sheet, and the resulting electrostatic force creates a motion of the sheet, producing a sound wave.
What are the advantages of using an electrostatic speaker?
Advantages of electrostatic loudspeakers include: levels of distortion one to two orders of magnitude lower than conventional cone drivers in a box. the extremely light weight of the diaphragm which is driven across its whole surface.
What are the advantages and disadvantages of electrostatic speakers?
Cons: There aren’t many around, they cost a lot, they’re difficult to drive, they need mains power, they’re big, they often don’t sound like they have much bass. Pros: People who use them won’t use anything else due to lack of treble and midrange colouration.
How does electrostatic speakers use static electricity?
Instead of using an electromagnet, electrostatic speakers vibrate air using a large, thin, conductive diaphragm panel suspended between two stationary conductive panels. … The audio signal runs a current through the suspended diaphragm panel, rapidly switching between a positive charge and a negative charge.Are electrostatic speakers hard to drive?
Electrostatic Loudspeakers – FAQ. A – ESL’s can be difficult to drive due to the low impedance presented at high frequencies and due to the reactive nature of the load. Generally, if an amplifier is capable of nearly doubling it’s output into low impedances it will be ok.
Why are electrostatic loudspeakers so expensive?
The cost of a speaker comes from more than the electronic components themselves. High-End speakers can be more expensive due to the design of the speakers, the quality of materials, the durability and weight, and even the branding. These elements are often much more important than people realize.
Do electrostatic speakers sound good?
Electrostatic speakers produce levels of distortion one to two orders of magnitude lower than conventional cone drivers in a box. Electrostatic speakers’ clarity is extraordinary. The big downside is high cost, but electrostatic speakers have been popular with audiophiles for many years.
What are the best speakers in the world?
- #1 Best Speaker in the World 2020: KEF LS50 Wireless Powered Speaker System. …
- #2 Best Floorstanding Speakers: Martin Logan Motion 60XT Speakers. …
- #3 Best for Bookshelf: Audioengine HD6 Powered Bookshelf Speakers. …
- #4 Best for Music: KEF Q950 Floorstanding Speaker.
How do Quad electrostatic speakers work?

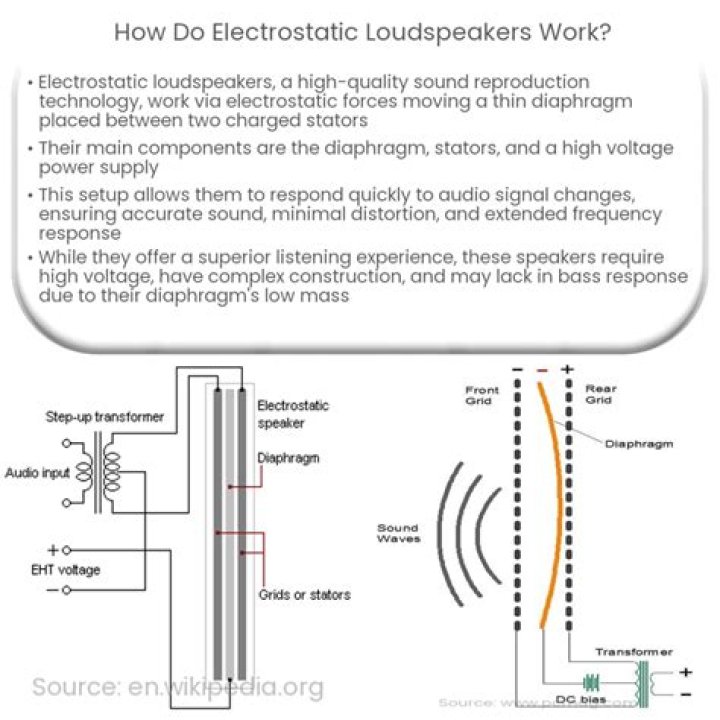

Design. An electrostatic speaker has only a frame to support the charged diaphragm. … Sound is produced when the audio signal – amplified by a step-up transformer – sets the film diaphragm into motion. The different charge between the two plates allows the diaphragm to be alternately attracted and repelled by each plate.
Are electrostatic speakers dynamic?Electrostatic and Dynamic Speakers There is a huge difference between electrostatic speakers and the more common dynamic “cone” speaker.
Article first time published onAt what frequency does a typical piezoelectric speaker emit sound?
Frequency ranges of 2kHz to 4kHz are most easily heard. For this reason, most piezoelectric sound components are used in this frequency range, and the resonant frequency (f0) is generally selected in the same range too.
What is a planar speaker?
The term planar means that the speakers have roughly rectangular flat surfaces that radiate in a bipolar (i.e., front and back) manner. Planar magnetic loudspeakers with wide diaphragms, such as woofers and midranges, usually have vertical rows of magnets with each row alternating between north and south poles.
Are Martin Logan speakers worth it?
MartinLogan Motion 40i is a great-sounding and fairly affordable entry-level audiophile speaker. Its elegant design, accurate, punchy, and controlled bass, clear and dynamic mids, and sparkling treble make it one of the best floorstanding speakers under $2,500.
What is electrostatic tweeter?
Electrostatic tweeter This type of speaker employs a thin diaphragm (generally plastic and typically PET film), with a thin conductive coating, suspended between two screens or perforated metal sheets, referred to as stators.
Where is Martin Logan speakers made?
Headquarters: Lawrence, Kansas MartinLogan’s North American manufacturing facility is located in Mississaugua, Ontario where our electrostatic speakers are hand-built by a highly-trained team of manufacturing specialists.
Why do speakers have diamonds?
The unique properties of diamond make the speakers less susceptible to distortion and thus provide a clearer sound, say their manufacturers Bowers & Wilkins (B&W), UK. The 800 Series speakers contain diamond ‘tweeter domes’ – the parts responsible for producing high-frequency sound.
What speakers do the BBC use?
The LS3/5A is a commercially produced loudspeaker driven by the need of the BBC to monitor and assess broadcast programme quality. It was derived from the LS3/5, which was conceived and developed by the BBC Engineering Department in the early 1970s, when it was under the stewardship of Dudley Harwood.
Why Bowers and Wilkins are expensive?
Sound quality: The higher the sound quality is, the greater the price value will be. … When it comes to the B&W desktop computer speaker, it sounds crisper and clearer. It also manages to offer distortion-free bass, thus, showcasing the materials used are expensive.
Where are quad speakers made?
Quad Electroacoustics is a British manufacturer of hi-fi equipment, based in Huntingdon, England.
When was speaker invented?
Alexander Graham Bell patented his first electric loudspeaker (capable of reproducing intelligible speech) as part of his telephone in 1876, which was followed in 1877 by an improved version from Ernst Siemens.
What is the most expensive speaker in the world?
- Magico Ultimate III – $700,000. …
- Wilson Audio WAMM Master Chronosonic – $850,000. …
- Cessaro Horn Acoustics Omega 1 – $1m. …
- Kharma Grand Enigma – $1m. …
- Moon Audio Opulence – $1.1m. …
- Transmission Audio Ultimate – $2m. …
- Hart Audio D&W Aural Pleasure – $5m.
Are new speakers better than old?
Speakers have advanced a lot over the years, becoming cleaner, less distorted and more detailed. … The newer speakers go louder, and despite being notably smaller than the 35cm high Missions, dig into the lows with far greater punch and authority.
Which brand is best for music system?
S.NoBrandFounded1Bose19642Sony19463Philips18914JBL1946
How do you clean electrostatic speakers?
Use a dust free cloth or a soft brush to clean your speakers and subwoofers. If your speaker (CLX or CLX Art only) features EcoSound, please refer to the following FAQ. To clean the electrostatic panel, you can vacuum them as explained here.
What is crystal loudspeaker?
[¦krist·əl ′lau̇d‚spēk·ər] (engineering acoustics) A loudspeaker in which movements of the diaphragm are produced by a piezoelectric crystal unit that twists or bends under the influence of the applied audio-frequency signal voltage. Also known as piezoelectric loudspeaker.
What is piezo buzzer element?
At the heart of all piezo-type buzzers is the piezoelectric element. The piezoelectric element is composed of a piezoelectric ceramic and a metal plate held together with adhesive. Both sides of the piezoelectric ceramic plate contain an electrode for electrical conduction.
How does a piezo make sound?
Electrical energy is then applied to the crystal, which shrinks and expands the crystal’s structure. As the crystal’s structure expands and contracts, it converts the received electrical energy and releases mechanical energy in the form of a sound wave.
What is linear sound system?
Simply put, a system is considered linear if the equations that govern it follow the simple rule that the sum of the inputs to the system yields the sum of the outputs. …
What is point source speaker?
A point source loudspeaker is just what its name suggests: a single speaker, or multiple speakers placed far apart, broadcasting a full range of sound from a single point. … Unlike the line array system, a single speaker radiates sound in a spherical pattern and therefore has less range.
Are Magnepan speakers good?
While we shy away from audiophile clichés, the Magnepan MMGs are truly one of the best values in hi-fi. … Equally generous, Magnepan allows for a very liberal trade-in during the first year (full purchase price in most cases) should you move up the ladder to one of its larger speakers.
