How do you unclog a sink air gap?
How do you unclog a sink air gap?
For softer clogs, pop the cap off of the air gap, and place a cardboard tube from a roll of paper towels over the hole. Blow through the top with a good amount of force, and any material should come loose. If this doesn’t work, though, you can use either a long bottle brush or a wet/dry vacuum to remedy the issue.
Can an air gap go under the sink?
There is no approved air gap that can be installed entirely beneath the counter. A dishwasher air gap must extend above the countertop and drain into the sink. An air gap installed under the counter could flood your under-sink area.
Should there be water in air gap?
Water coming out the air gap should not be a regular occurrence, though occasionally it might happen when, for example, someone forgets to run the garbage disposal. Regular water discharge from an air gap points to a restriction in the water flow.
Why do you need an air gap in a sink?
Air gaps prevent cross-connections and contamination by discharging water and waste across an unobstructed space (a gap of air). That space is between the fixture outlet and the “flood level rim” of a receptacle (be it a sink, floor drain, standpipe, or other approved unit).
When do you need an air gap for a floor drain?
When floor drains or sinks are used, the softener’s drain hose/pipe can simply be secured above the receptacle following local guidelines for air gap distance. Securing the line is important, as the softener discharge does exit with some force. For draining into standpipes or outlet boxes, we offer a specialized water softener air gap.
When do you need an air gap in a dishwasher?
But it can happen if the water supply pressure becomes low, or if the sink is placed well above the water supply access point. Another very commonplace for an air gap is a kitchen appliance almost everyone has – a dishwasher. As previously mentioned, most plumbing codes do require air gap installation in dishwashers.
Can a water hose be added to an air gap?
All contaminants remain in the sink itself, and will not affect potable water. An air gap should never be tampered with. As an example, a hose should never be added to the end of a faucet. This can result in the hose lying under contaminated sink water.
How do you clean an air gap?
Clean the air gap with a brush. Soak the bottle brush in household cleaner and plunge it up and down into the air gap. An air gap prevents dirty dishwater from backflowing into fresh water lines. But over time, ground-up food and grease can build up inside the air gap and form a clog.

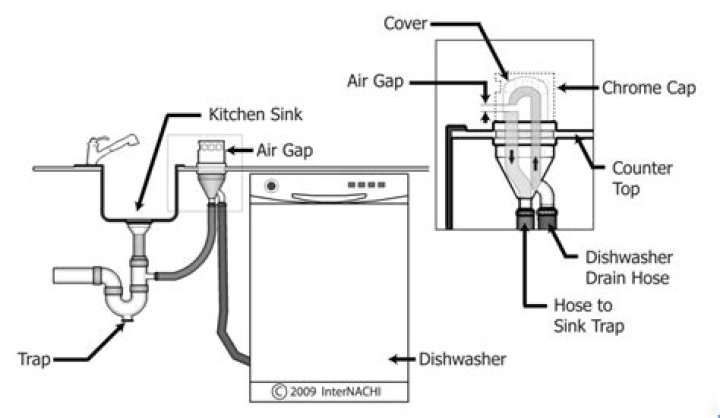

What is an air gap in a kitchen sink?
An air gap is the unobstructed space between a wall outlet and an open vessel or flood level of a fixture. An example of an air gap is the space between a faucet and the sink rim. This gap prevents the reverse flow of contaminated water from the sink back into the faucet without some modification of the system.
What is an air gap drain?
An air gap is an efficient way to prevent dirty drain water from flowing back into your clean drinking water. Whenever a drain connects an appliance to a drinking water supply, plumbing codes require backflow prevention. The air gap creates a separation in the line to the drain.
What is air gap in plumbing?
An air gap, as it relates to the plumbing trade, is the unobstructed vertical space between the water outlet and the flood level of a fixture.
