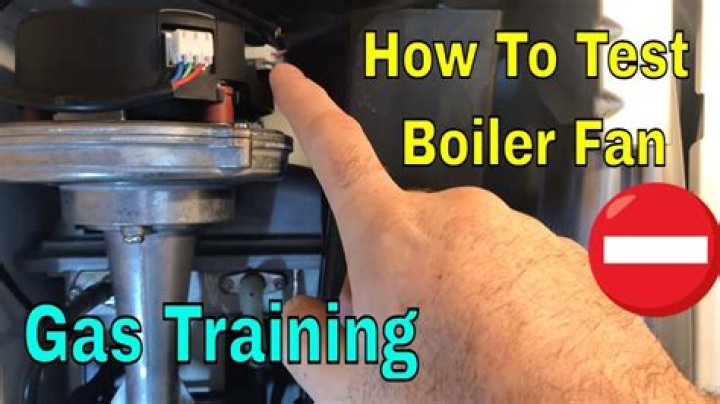

How do you test a boiler fan?
How do you test a boiler fan?
Burnt Out Motor Windings
- Electrically isolate boiler / system controls.
- Remove E N L wires from fan terminals.
- Set multimeter on ohms scale for resistance readings, across L N at fan terminals:
- less than 20 ohms = replace.
- No resistance/infinity = replace.
- (30 ohms – 100 + ohms) = ok.
Where is the reset button on a Worcester 24i junior boiler?
fault indicator button
The appliance can be reset by pressing the fault indicator button and holding in for 5 seconds when the appliance has cooled.
What does a fan do in a boiler?
We’ve mentioned that the boiler needs to know the fan is running and that there’s not a blockage, before it fires up. It’s the air pressure switch that monitors air pressure in the boiler and determines if the boiler is safe to fire up, and to continue running.
What does a fan do on a boiler?
How do you reset a Worcester Greenstar boiler?
To reset the boiler: ► Turn the Central heating temperature knob anticlockwise to the “RESET” position and hold for approximately five seconds and then turn the knob back to the original temperature setting.
How much does it cost to replace a gas valve on a boiler?
Boiler gas valve replacement costs are usually determined by the cost of the valve itself. A typical gas valve replacement price will be around £300 including parts and installation.
Why is there no hot water in my Worcester Boiler?
Is your Worcester boiler problem relating to no hot water? There are a few scenarios that can lead to a lack of hot water. These include a faulty diverter valve (typical, if the heating works, but hot water doesn’t). But, it could also be due to lack of power, a stuck Y/S-plan valve, faulty PCB unit, or even a problem with the heating pump.
How old is the boiler from Worcester Bosch?
The boiler manufacturer Worcester became known as ‘Worcester Bosch’ back in 1992, although it was actually closer to 1995 when its boilers became branded as Worcester Bosch. So, chances are, if you own an older Worcester boiler, it’s probably at least 20 years old by now.
What is the fault code for a Worcester Boiler?
[Feb, 2014] Worcester ZWB 7-30 – EA fault code, no heating, no hot water. Of all fault codes Worcester boilers may exhibit, the ignition lockout fault code has to be one of the most common faults. If you happen to have one of the Worcester Highflow/HE/CDI models, the ignition lockout with present itself as the EA fault code.
Why is my Worchester 24i fan so noisy?
Ive got a noisy Worcester 24i. An engineer said it’s the bearings on the fan and given a verbal quote of £220. Looking on ebay there are fans from around £65.
Is your Worcester boiler problem relating to no hot water? There are a few scenarios that can lead to a lack of hot water. These include a faulty diverter valve (typical, if the heating works, but hot water doesn’t). But, it could also be due to lack of power, a stuck Y/S-plan valve, faulty PCB unit, or even a problem with the heating pump.
The boiler manufacturer Worcester became known as ‘Worcester Bosch’ back in 1992, although it was actually closer to 1995 when its boilers became branded as Worcester Bosch. So, chances are, if you own an older Worcester boiler, it’s probably at least 20 years old by now.
[Feb, 2014] Worcester ZWB 7-30 – EA fault code, no heating, no hot water. Of all fault codes Worcester boilers may exhibit, the ignition lockout fault code has to be one of the most common faults. If you happen to have one of the Worcester Highflow/HE/CDI models, the ignition lockout with present itself as the EA fault code.
Ive got a noisy Worcester 24i. An engineer said it’s the bearings on the fan and given a verbal quote of £220. Looking on ebay there are fans from around £65.
