How do you tell if a ball valve is open or closed?
How do you tell if a ball valve is open or closed?

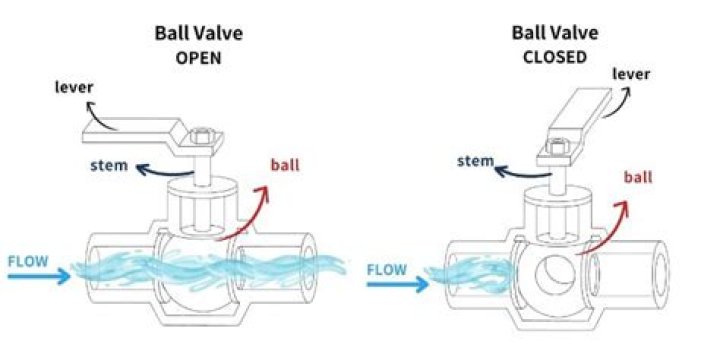

When the handle of a ball valve is parallel to the valve or pipe, it’s open. When it’s perpendicular, it’s closed. This makes it easy know if a ball valve is open or closed, just by looking at it.
How many turns does it take to open a gate valve?
The AWWA operating formula for opening/closing a gate valve is 3 times the nominal valve size plus 2 or 3 turns of the operating nut. For example, a 6-inch gate valve would require 6 x 3 = 18 turns plus 2 or 3 turns, for a total of 20 to 21 turns.
How do I turn on my gate valve?
The proper way to open a gate valve is to gently turn the handle counter-clockwise (to the left) without applying excessive force – do not ‘jerk’ the handle. A typical 1″ main control valve for a water line will take about six full turns to fully open. Stop turning as soon as there is any resistance.
How many turns on a hydrant?
Open the hydrant approximately 3 turns – standing behind and not over when operating.
Can gate valves fail?
The most common causes of gate valve failure are wear and corrosion. Gate valves tend to wear out over time. And corrosion can cause the disc to stick in either the open or closed position. When the handle is forced, the stem leading from the handle to the disc will often break, rendering the valve useless.
Is the Hammond A-105 the same as the C-3?
4 Sets Drawbars 18 Changeable Presets *Locking Top Series includes Models A-100, 101, 102, 105, 122, 143. NOTE 2: The A-105 is identical to Model C-3. The only difference is the sound system: A-105 has a built-in system and C-3 has a remote system.
Where is the Blue Book of Hammond located?
The Blue Book of HAMMOND The Hammond Organ Company 4200 W. Diversey Ave. Chicaco, IL 60639 Tel. (312) 283-2000 Note 1: Where possible, we list individual models in each series. The letter and first digit indicate series and edition; the following lists show meaning of the last two digits: digits:
Where is the Hammond Organ Company in Chicago?
The Hammond Organ Company 4200 W. Diversey Ave. Chicaco, IL 60639 Tel. (312) 283-2000 Note 1: Where possible, we list individual models in each series. The letter and first digit indicate series and edition; the following lists show meaning of the last two digits: digits:
What kind of pedals are in the Blue Book of Hammond?
SERIES A-100 – 1959/1965 MODEL *A-105 – 1961/ 2 61-Key Manuals 25 Pedals Split Vibrato Vibrato Chorus Stereo Reverb Touch Percussion Tone-wheel Generator 4 Sets Drawbars 18 Changeable Presets *Locking Top Series includes Models A-100, 101, 102, 105, 122, 143.
