How do you set up a Hunter PGP sprinkler head?
How do you set up a Hunter PGP sprinkler head?

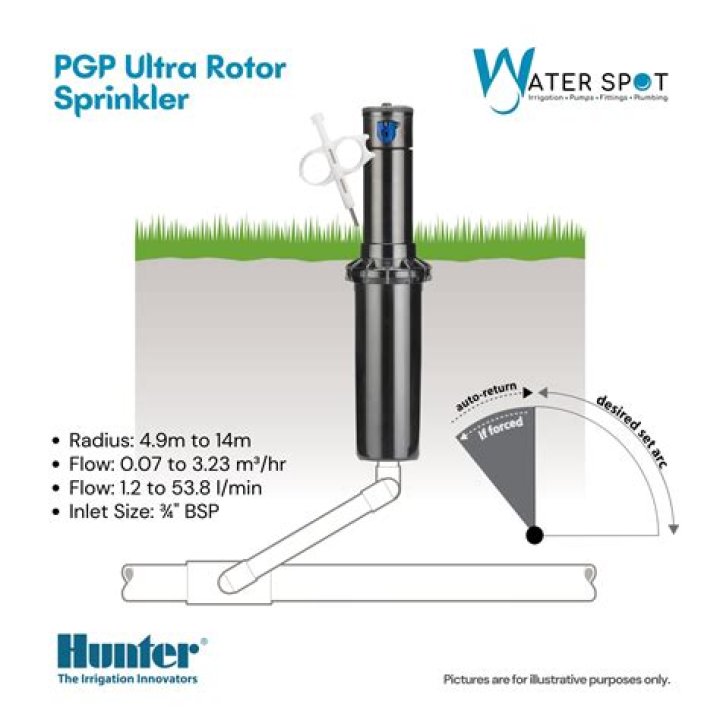

Insert the plastic key end of the Hunter wrench into the adjustment socket . While holding the nozzle turret at the right stop, turn the wrench clockwise. Each full 360° turn of the wrench will increase the arc 90°. Adjust to any arc between 40° and 360°.
How do you adjust the radius on a PGP sprinkler?
Insert the plastic key end of the Hunter wrench into the lifting socket of the sprinkler and turn 90°. Using the steel hex key of the Hunter wrench, turn the radius adjustment screw counterclockwise to be sure it is not blocking the nozzle socket opening.
How to adjust the head of a hunter sprinkler system?
In this video I show you how to make adjustments to your Hunter sprinkler heads including, left and right stops, water pressure, and spray nozzle. You’ll need a tool (see link below) to adjust the heads and replace the nozzles. Loading…
What’s the best way to adjust a sprinkler system?
Insert the plastic key end of the Hunter wrench into the lifting socket of the sprinkler and turn 90°. Pull the riser up to gain access to the nozzle socket Using the steel hex key of the Hunter wrench, turn the radius adjustment screw counterclockwise to be sure it is not blocking the nozzle socket opening.
What makes a hunter 360 degree sprinkler good?
For the precipitation rate for a 360 degree sprinkler, divide by 2. Hunter made its reputation on the quality, reliability and innovative features found in its rotary sprinkler line and continues to set the benchmark by which other manufacturer’s rotors are judged.
How do you adjust Hunter pop up sprinkler heads?
How Do You Adjust A Weathermatic Sprinkler Head. Insert the plastic key finish of the Hunter wrench into the lifting socket of the sprinkler and switch 90°. Pull the riser up to achieve entry to the nozzle socket. To regulate spray sample on the Hard Top Pop, first manually pull the pop-up out of head and locate black tip on the end of the nozzle.
How do you adjust a hunter sprinkler?
Adjust the spray pattern of the sprinkler’s jet of water by inserting the Hunter tool’s hex key into the arrow on the top of the head. Turning to the left will make the stream of water spray farther, while turning to the right will make the stream spray a shorter but broaden water spray.
How do I replace a hunter sprinkler head?
Look at how the sprinkler head you are replacing is set for guidance. The sprinkler head replacement is automatically preset at 180 degrees. Adjust the head replacement with your palm. Push down to rotate the nozzle turret counterclockwise to the left until it stops. Rotate the nozzle clockwise to the right.
How do you adjust a sprinkler?
Move the sprinkler head by hand to adjust the watering direction. Grip the spray head between two fingers. Then, rotate it by hand so it is aimed at the direction you want the water to spray. For example, if you want the water to spray towards the right, rotate the head to the right.
