How do you remove a stuck Moen shower handle?
How do you remove a stuck Moen shower handle?
Use a rotary grinder (i.e. dremel tool) then you stick a wide blade screwdriver in the groove you cut and spread the handle some to pull it off. That way you would only to need to replace the handle (assuming the valve itself is good and you get a handle).
Why is my shower handle not working?
Old Cartridge or Low Water Pressure Although you’ll probably need a special tool called a cartridge puller to do the job, you can usually fix the faucet by removing the cartridge and replacing it. Your problems may also be caused by insufficient water pressure, which can be the result of old and corroded water pipes.

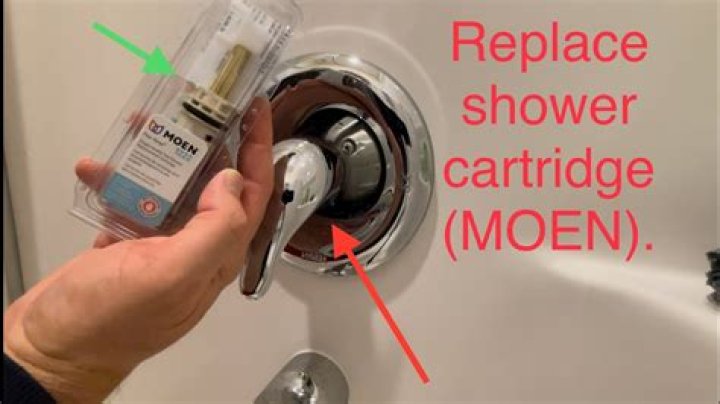

How to replace your Moen shower faucet cartridge?
Visit: for a step by step tutorial. Cartridge 1222 – (SHOWER FAUCET) Single-handle replacement cartridge, Posi-Temp®. Watch the 1222 Cartridge Removal & Installation Video: Cartridge 4000 – Unfinished replacement cartridge.
Where is the H C mark on a Moen shower valve?
Insert the cartridge into the valve body so that the “H C” marking on the face of the cartridge is on top (hot is on the left and cold is on the right). Push in the cartridge as far as it will go. Use the plastic adapter that comes with the new cartridge to help position the cartridge and push it into the valve body.
Do you need a puller to remove a Moen cartridge?
With the clip removed, you can now pull the cartridge out. A Moen cartridge puller (shown here) makes removing the cartridge a little easier, but it is not required. If you don’t have a cartridge puller, use the plastic adapter that comes with the new cartridge to remove the old cartridge.
What’s the scald guard on Moen shower handle?
Turn the water on and test the faucet to make sure the valve gets cold first, then warmer as you rotate the handle. The temperature limit stop kit is the device behind the scald guard feature on some Moen shower valves. It limits how far the handle can turn in the hot direction to prevent accidental scalding.
Visit: for a step by step tutorial. Cartridge 1222 – (SHOWER FAUCET) Single-handle replacement cartridge, Posi-Temp®. Watch the 1222 Cartridge Removal & Installation Video: Cartridge 4000 – Unfinished replacement cartridge.
With the clip removed, you can now pull the cartridge out. A Moen cartridge puller (shown here) makes removing the cartridge a little easier, but it is not required. If you don’t have a cartridge puller, use the plastic adapter that comes with the new cartridge to remove the old cartridge.
Insert the cartridge into the valve body so that the “H C” marking on the face of the cartridge is on top (hot is on the left and cold is on the right). Push in the cartridge as far as it will go. Use the plastic adapter that comes with the new cartridge to help position the cartridge and push it into the valve body.
How do you remove retaining clip from Moen shower?
To remove the retaining clip, use a pair of needle-nose pliers or a flat screwdriver. Grip the top of the clip and pull it straight out. Set the retaining clip aside; you will use it with the new cartridge. Continue to 5 of 9 below.
