How do you remove a Kohler shower spout?

How do you remove a Kohler shower spout?

With the hex key inserted into the set screw, twist it counterclockwise just enough to loosen the screw’s grip on the pipe. You don’t need to remove the set screw completely. Once the screw is sufficiently loose, the tub spout can be pulled forward until it’s completely off the water pipe.

How to replace the diverter on a Kohler kitchen faucet?

Turn off the water supply to your faucet. Remove the plug button from the back of the handle. There is a small set screw located underneath the plug button (Fig. 1) Loosen the set screw underneath the plug button using a hex wrench to remove the handle (Fig. 2).

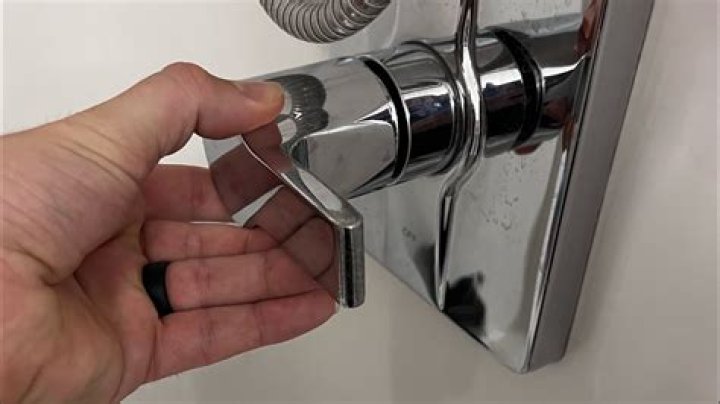

How do you remove a Kohler shower handle?

Using a Phillips screwdriver, unthread the two screws and remove the handle sleeve, shroud, and faceplate. If applicable, use a flat-blade screwdriver to remove the pin from the adaptor. Unthread and remove the adaptor from the valve.

How does a Kohler shower control valve work?

The brass, round, splined stem rotates clockwise to turn on. Push or push/pull diverter diverts water from the bottom port outlet to the top port outlet. Note: The K-305 Rite-Temp Diverter Valve features a smooth diverter stem. The K-11748 features a threaded diverter stem. Reference the photo below for more detail.

Where is the diverter on a single control kitchen faucet?

Replace the Diverter on a Single-Control Kitchen Faucet. The diverter assembly is located in the back of the faucet body, facing away from you sink. It is a small black part that is inserted into a hole in the faucet body (Fig. 4). Using a needle nose pliers, pull out the old diverter assembly by grabbing on the “fins” of the assembly.

How do you replace a Kohler shower valve?

Find a replacement Kohler shower valve at a hardware or plumbing store, make sure it is specific to your model, not just any Kohler shower faucet. You won’t be able to fix the faucet with another brand’s replacement shower valve. Insert the new Kohler shower valve and tighten the screws. Then install the trim and replace the handle.

How do you repair a Kohler kitchen faucet?

Fix a leaking Kohler faucet. Fix a leaking Kohler faucet base or handle by unscrewing the handle set screw with an Allen wrench and pulling the handle off. Then remove the bonnet nut under the handle of the Kohler faucet and take the cartridge out. Replace it with a new cartridge and reassemble the faucet to finish troubleshooting.

What is a shower valve?

Shower Valve is a bathroom tool or device that controls the water temperature and navigates the water flow. Shower valves are found in two different types and in many designs.
