How do you plumb an expansion tank?

How do you plumb an expansion tank?

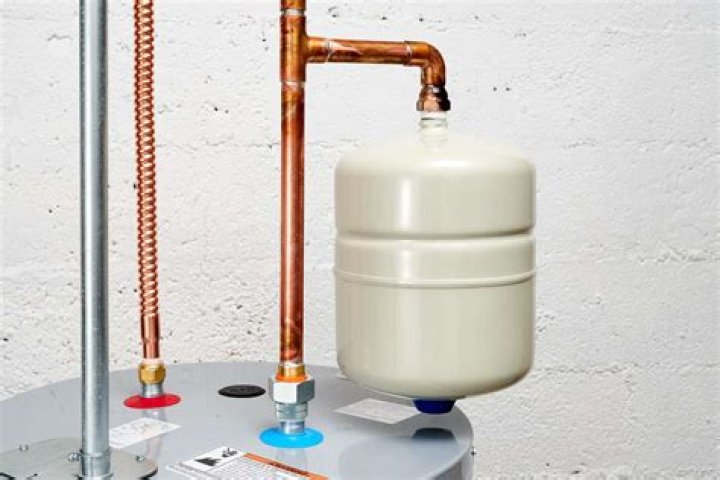

Instructions (New Water Heater Installation)

1. Attach a Dielectric Union. After the water heater is correctly positioned, attach a dielectric union to the cold water entry port.
2. Attach Copper Adapter.
3. Attach Tee Fitting.
4. Attach Expansion Tank Pipe.
5. Attach the Expansion Tank.
6. Complete the Installation.

What is the purpose of an expansion tank in plumbing?

The expansion tank is designed to handle the thermal expansion of water as it heats up in the water heater, preventing excessive water pressure. If water pressure gets to high it can damage valves in plumbing fixtures, joints in supply pipes and the water heater itself.

How much does it cost to install an expansion tank?

The cost to install a thermal expansion tank can range from $300 to $400. Often the expense of the thermal expansion tank is included in the cost of the new water heater.

Can an expansion tank be installed upside down?

Expansion tanks can be installed in any direction. Whether oriented uprightly, horizontally, or even upside down, the expansion tank will function properly without any adverse effects. When putting an expansion in an abnormal position (specifically sideways or horizontally), make sure to support the tank.

How to install a thermal expansion tank in your home?

1 Check the water pressure in your home. 2 Check the pressure of air inside the thermal expansion tank. 3 It is recommended to install the thermal expansion tank on the cold water line, horizontally and close to the water heater. 4 Use the threaded T- fitting, Teflon tape, and pipe wrench to make the watertight connection.

When do you need an expansion tank for a plumbing system?

An expansion tank is most critical in closed plumbing systems, where some form of pressure-limiting valve or back-flow valve prevents the expanding water from backing up into the municipal water main.

What happens if your water heater does not have an expansion tank?

Without inflated water tanks, the water will have nowhere to go. This condition significantly increases the pressure of water pipes and can lead to damage to pipes, household appliances and water heaters.

What to do if water drips from expansion tank?

If water drips from the base of the piercing handle shaft, tighten its connecting union carefully until it stops dripping. Alternatively, if water seeps out of the clamp, tighten the clamp screws another quarter turn. Open the hot water faucet farthest away from the tank to bleed off any air bubbles trapped in the pipes.

When do you need an expansion tank for a water heater?

For example, when water is heated from the temperature of 50 to 120 degrees Fahrenheit, the volume increases by approximately 2%. An expansion tank provides space for this expanding water, thereby reducing pressure on the water heater tank, and on the pipes and fixture.

If water drips from the base of the piercing handle shaft, tighten its connecting union carefully until it stops dripping. Alternatively, if water seeps out of the clamp, tighten the clamp screws another quarter turn. Open the hot water faucet farthest away from the tank to bleed off any air bubbles trapped in the pipes.

Can a thermal expansion tank cause water damage?

In a closed system, this extra water pressure from thermal expansion can cause the most damage because the extra water pressure cannot push back into the city water supply and therefore has nowhere to go. Most cities require that residential closed plumbing systems be equipped with expansion tanks.

What makes up the inside of an expansion tank?

Inside an expansion tank is a flexible rubber diaphragm that divides the tank into two sections—one of which accepts expansion water as it heats, the other which provides an air chamber that becomes slightly pressurized as the diaphragm expands into it.
