How do you plumb a pressure relief valve?

How do you plumb a pressure relief valve?

Pressure relief valve installation

1. Mount PRVs in a vertical position, which means upright and with the spindle vertical.
2. For flanged valves, be sure to draw the bolts down evenly.
3. Avoid overtightening the valve.
4. Apply pipe dope to the male threads only.

What is the typical pressure setting for a relief valve?

The relief valve setting(s) should be at least 10% or 15-psig, whichever is greater, above the maximum operating pressure. Where unstable process conditions exist, this differential should be at least 10% above the maximum operating pressure or 25-psig, whichever is greater.

What size line should you run to the relief valve on residential water heater?

The relief valve on your water heater has a pipe attached. Most residential water heaters have a 3/4″ threaded opening for the discharge pipe. By code, you have to run the same size as the opening which means the pipe needs to be 3/4″ in diameter.

How does a temperature relief valve work?

When a relief valve is dripping, it is typically due to thermal expansion. When water is heated, it expands. This causes excess pressure in the system. When the T&P relief valve senses this excess pressure, it opens relieving the thermal expansion* and returning the pressure back to normal conditions.

Is a pressure relief valve necessary for?

A relief valve or pressure relief valve (PRV) is a type of safety valve used to control or limit the pressure in a system; pressure might otherwise build up and create a process upset, instrument or equipment failure, or fire.

How do you adjust a relief valve?

With a slotted screwdriver, turn the screw in the center of the knob clockwise, until flow can be heard escaping from the internal valve. Slowly turn the screw counterclockwise until the flow from the relief valve stops. Turn the screw an additional 1/8 to 1/4 turn counter-clockwise. Replace the silver cap in the knob.

Does pressure relief valve need pipe?

The Temperature & Pressure Relief Valve or TPR Valve on any heated appliance that contains water, such as a heating boiler, hot water tank, water heater, water cylinder, must have a drain line or discharge tube properly installed, routed, and made of proper materials.

What is code for water heater pressure relief valve?

Item 10 requires the relief valve to terminate no more than 6 inches (152mm) above the floor surface, a waste receptor or floor drain in order to prevent hot water discharge from being directed onto a building occupant that may be nearby.

How are relief valves used in a piping system?

Relief valves are used in piping systems that service liquid commodities and are designed to open proportionally, that is, as pressure from the commodity increases so does the opening of the valve. The higher the pressure, the larger the opening. The pressure safety valve, however, is used with higher-pressure commodities such as steam and gas.

What should the pressure drop be on a relief valve?

Should the piping be rerouted due to stress requirements, the Process Department must reapprove the system. The inlet piping to a relief valve should be designed so that the pressure drop does not exceed 3% of the relief valve set pressure, see Figures 9-1, 9-2, and 9-4.

When does a relief valve need to be closed?

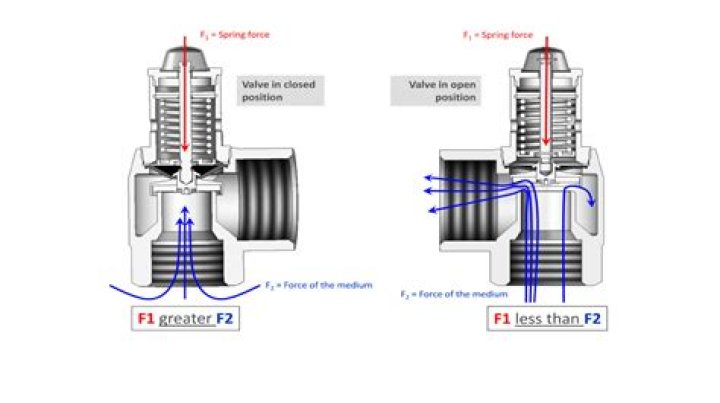

Relief valves use a steel spring as a means to automatically open when pressures reach unsafe levels. These valves can be adjusted and regulated to pop off when internal pressures exceed predetermined settings. Once internal pressures return to operational levels, the relief valve closes.

Why do you need a pressure reducing valve?

The pressure reducing valve is designed to keep the makeup water flow rate very low. It is simply for makeup. The maximum flow rate of the B&G B7-12 is around 5 GPM. If we relieve more than we makeup there will be air in the pipe. That air in the pipe will act like an expansion tank.

When to use a conventional pressure relief valve?

Conventional pressure relief valves are used when the back pressure is less than 10%. When it is known that the superimposed back pressure will be constant, a conventional valve may be used. If the back pressure percentage is between 10 to 40, a balanced bellow safety valve is used.

What is included in the pressure relief valve Engineering Handbook?

Information contained in this handbook applies to the overpressure protection of pressure vessels, lines and systems. Reference is made to the ASME Boiler and Pressure Vessel Code, Section VIII, Pressure Vessels.

Where is the pressure relief valve on a water heater?

At a home inspection I noticed that a water heater (cylinder) had no pressure/temperature relief valve installed: instead there was a pipe plug screwed into the opening where the TP valve belonged.

How are pressure loss and Reduction valves different?

The primary differences between these two types of valves are the style of operation, pressure losses through the valves and available sizes. The direct-acting, spring-loaded valve uses the tension of a spring to close the valve disc against the seat, thus providing a pressure loss or reduction as water flows through the valve.
