How do you know if a power tool is double insulated

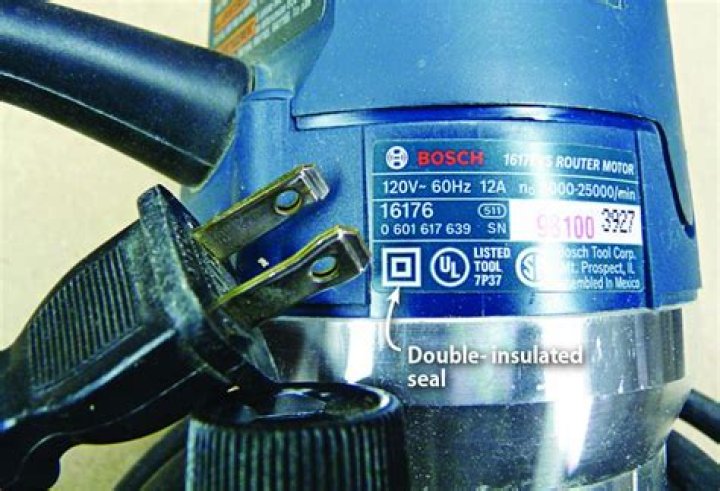

You can tell if the tool you are using is a double-insulated variety. Just look at the manufacturer’s data plate or sticker affixed to the tool, and if it is double insulated and you may see the words “Double Insulated” printed there.

Are all power tools double insulated?

Many of the newer small electrical appliances and tools do not have a the third grounding prong on the plug. Typical examples are blenders, coffee makers, blow dryers, drills, and other power tools. Appliances and tools of this type are called “double insulated”.

How do you tell if a tool is insulated?

For tools like screwdrivers, insulation starts right at the tip of the tool. That insulation goes all the way to the back end of the handle and protects you from accidental contact with high voltage.

Are Milwaukee tools double insulated?

Providing an uncompromising safety rating, Milwaukee Insulated Screwdrivers are flame retardant and impact resistant and feature a dual layer insulation for maximum protection and a visual wear indicator to issue a replacement warning to the user.

What does double insulated mean on a power tool?

Double-Insulated Tools: Hand-held tools manufactured with non-metallic cases are called double-insulated. If approved, they do not require grounding under the National Electrical Code. Although this design method reduces the risk of grounding deficiencies, a shock hazard can still exist.

What does the double insulated symbol look like?

A Class II or double insulated electrical appliance is one which has been built in such a way that it does not require a connection to electrical earth (ground). A double insulated appliance displays the symbol above; the square inside a square symbol refers to 2 layers of insulation, thus double insulation.

What is the symbol for double insulated?

In Europe, a double insulated appliance must be labelled Class II or double insulated or bear the double insulation symbol: ⧈ (a square inside another square).

What makes a tool insulated?

The thing to understand is that insulated tools aren’t just regular tools with some extra rubber on the handles or generic coating on the tool end. They are designed end to end to protect workers from electrical shock up to 1000 V ac and 1500 V dc. They provide this protection in several ways.

What must be equipped with a ground prong or double insulated?

29 CFR 1926.404(f)(7)(iv) states that electric power tools must be grounded except when they are double insulated.

What does an insulated screwdriver look like?

An insulated screwdriver is a specially designed tool that has a tough, non-conductive plastic cover over its shaft and handles. … By having the shaft of the screwdriver protectively coated with a non-conductive material, it is safe to hold the screwdriver’s shaft for balance.

Article first time published on

Do insulated pliers work?

If you doing any type of electrical work, insulated tools come highly recommended. They may even come as a requirement depending upon the job. Remember that, just because your screwdriver or pliers have plastic handles, this doesn’t guarantee they can and will insulate you from an electrical shock.

What is double insulated wire?

Double or reinforced insulation is another method of protection against electric shock, consisting of an extra layer of supplementary insulation over the basic insulation, or a single layer of special reinforced insulation directly over the live parts.

Do double insulated tools need to be grounded?

However, double-insulated tools do not require the equipment grounding conductor tests, since they are not required to be grounded. The exposure to ground-fault hazards exists when any electric tool is being used even on a grounded circuit.

What material do double insulated tools having a casing made of?

Double-insulated tools have an outer casing of plastic or some other nonconductive material and are the only tools with two-wirecord caps sold today that are approved by the Underwriters Laboratories (UL).

Is T and E double insulated?

I’d say that Re-enforced insulation = artic cable or similar toughened outer sheath. “With T&E, the live conductors are double insulated from external earth sources, by means of the conductor insulation and the sheath.” Does BS 6004 require the sheath to undergo an insulation test during manufacture?

What does class 2 double insulated mean?

Class 2 double insulated lights are designed to operate without the need for an earth wire. They usually have two layers of insulation which cover the live parts, for example the cables inside the fitting.

Do double insulated tools need PAT testing?

Earthed equipment As a result, it is recommended that Class I equipment has a portable appliance test to ensure the earth connection is sound.

Does a double insulated light need an earth?

Double insulated lights are a specialist form of lighting that do not require an earth connection. This is very useful if your homes electrics are a little older & an earth connection isn’t present.

Why are kettles and hairdryers double insulated?

Double Insulation Such appliance are designed so that there are two levels of insulating material between the electrical parts of the appliance and any parts on the outside that can be touched. These two layers are normally the insulating plastic case and the insulated cable carrying the live and neutral wires.

Why does a double insulated two pronged plug provide acceptable ground protection for a power tool?

Double insulation protects you by providing another insulation barrier, preventing a wiring defect that could allow an energized conductor to touch any metal on the tool that you can touch. … With the equipment grounding method, a third wire is added to the tool’s wiring and connected to a round pin on the tool’s plug.

What is the advantage of double insulation?

Suppose an electric appliance has an insulation failure. When one layer of insulation is breached, the second layer keeps the user from receiving an electrical shock, possibly being electrocuted. Double insulation may also remove the requirement for a ground connection.

How can you tell if an electric tool is grounded?

Check electric tools to ensure that a tool with a 3-prong plug has an approved 3-wire cord and is grounded. The three-prong plug should be plugged in a properly grounded 3-pole outlet. If an adapter must be used to accommodate a two-hole receptacle, the adapter wire must be attached to a known, functioning ground.

Are all pliers insulated?

Not every plier with a rubber or plastic handle insulates against electrical current. Most of them do not, especially for high voltages. … On the other hand, insulated handles prevent slipping, are comfortable to grip, and most importantly protect you from electric shock.

When should insulated tools be used?

The NFPA 70E standard requires insulated tools to be used when working on or near electricity greater than 50 V. This helps protect workers from injury and companies from fines and liability costs resulting from such an accident.

How do you know if a screw driver is insulated?

Electricians use insulated screwdrivers when working with high voltage. According to OSHA standards, an insulated screwdriver will have a dielectric substance separating the handle of the screwdriver from the tip. The dielectric material is very resistant to conducting electricity.

Can you get shocked with insulated tools?

against electrical shock with a sleek, multi-layer, multi-color design. From professionals to DIY-ers, insulated tools help reduce the risk of electrical shock. Even so, it’s important to keep your tools up to the task through proper use and regular maintenance.

Can you work on live wires with insulated tools?

No electrician will touch live wire but they are able to work in live circuit with insulated tools so that there body parts never come in contact with live circuit.

Why do electricians use insulated tools?

Insulated tools are hand tools used by electricians to help protect them from electrical related accidents such as electrocution. They are extremely important when completing any work on a live circuit.

Can two conductor power cords be used with double insulated tools?

SOME power tools and appliances are double-insulated on the inside and have special nonconductive plastic housings, so they can be used with ordinary two-conductor, ungrounded cords and plugs.
