How do you insulate exposed PVC pipe?

How do you insulate exposed PVC pipe?

How do you insulate outdoor PVC pipe?

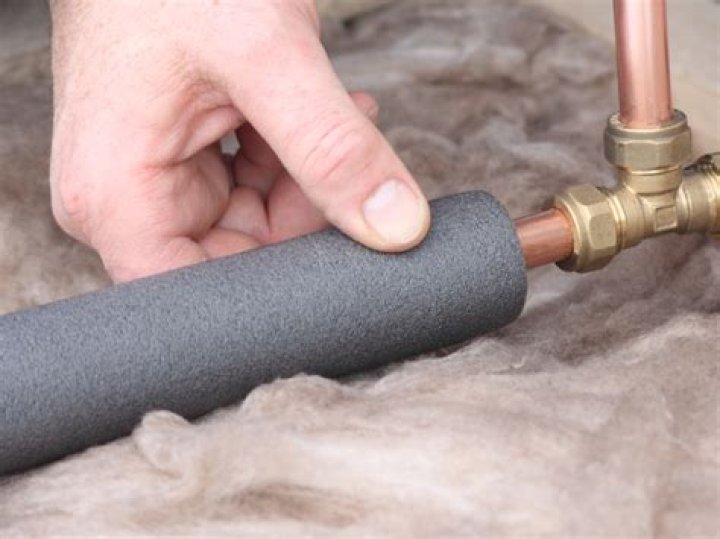

1. Purchase neoprene wrap sized to fit your PVC pipe.
2. Measure the length of the pipe to be covered.
3. Pry open the slit that runs along the side of the neoprene wrap.
4. Seal the slit with duct tape.
5. Continue adding additional neoprene wrap sections to the pipe.
6. Things You Will Need.
7. Tip.

Can you wrap PVC?

Heat tape, though, does prevent pipes from freezing. Wrap this tape around a pipe and then plug the tape into an electrical source to heat the pipe. Use heat tape featuring a thermostat to ensure that the PVC pipe is not damaged due to excess heat. …

What is the best PVC pipe insulation?

A closed cell foam insulation like AP ArmaFlex® is ideal for insulating plastic, PVC, or PEX piping.

How hot can foam pipe insulation get?

Flexible and easy-to-install, ArmaFlex is the original foam insulation and still a top solution for all kinds of piping under +220°F (104°C). ArmaFlex tubes save energy and prevent condensation.

What is the best insulation for hot water pipes?

For electric water heaters, pipe sleeves made with polyethylene or neoprene foam are the most commonly used insulation. On gas water heaters, insulation should be kept at least 6 inches from the flue.

What kind of PVC is used for pipe insulation?

Proto PVC Plastic Jacket is used to protect insulation from UV Rays outdoors and water exposure indoors. The PVC pipe Insulation Jacket can be used to protect Fiberglass Pipe Insulation , Elastomeric Rubber Pipe Insulation, or any other type of pipe insulation that needs protection from outside elements.

How big is a PVC pipe insulation jacket?

For example, if you insulate a 3″ Iron Pipe with 1″ thick insulation you would have 1″ of insulation on EACH side (2″ total) plus the 3″ diameter of the pipe plus an additional 0.5″ overlap. 2+3+0.5 = 5.5 Precut PVC Jacket.

What’s the thickness of insulation for cold water pipes?

The thickness of pipe insulation for most common residential cold water pipes is 1/2″ thick. There is usually no additional benefit of adding more than 1/2″ thick fiberglass or rubber pipe insulation to cold water piping. Hot & Cold Water (Freeze Protection):

How much insulation do you need for a heating pipe?

In almost every scenario involving a heating pipe, replacing 1/2″ thickness pipe insulation with 1″ thickness pipe insulation reduces the loss of heat transmission in half. On piping greater than 3″ the use of 1-1/2″ thickness is also cost efficient.

Proto PVC Plastic Jacket is used to protect insulation from UV Rays outdoors and water exposure indoors. The PVC pipe Insulation Jacket can be used to protect Fiberglass Pipe Insulation , Elastomeric Rubber Pipe Insulation, or any other type of pipe insulation that needs protection from outside elements.

For example, if you insulate a 3″ Iron Pipe with 1″ thick insulation you would have 1″ of insulation on EACH side (2″ total) plus the 3″ diameter of the pipe plus an additional 0.5″ overlap. 2+3+0.5 = 5.5 Precut PVC Jacket.

Do you need to insulate PVC water heater pipes?

PVC drainage pipes do not need insulation. To prevent risk of fire, do not insulate pipes within six inches of the gas water heater flue. If you must insulate this area, use unfaced fiberglass pipe-wrap insulation for this area. Do not tape the fiberglass insulation to the neoprene wrap.

How big of a wrap do I need for PVC pipe?

For example, if the circumference of your pipe is 10 inches, the diameter is 3.18 inches. Purchase neoprene wrap sized for 3 1/8-inch or 3 1/4-inch pipes. For best results, purchase a neoprene wrap size a little larger than your pipe’s diameter.
