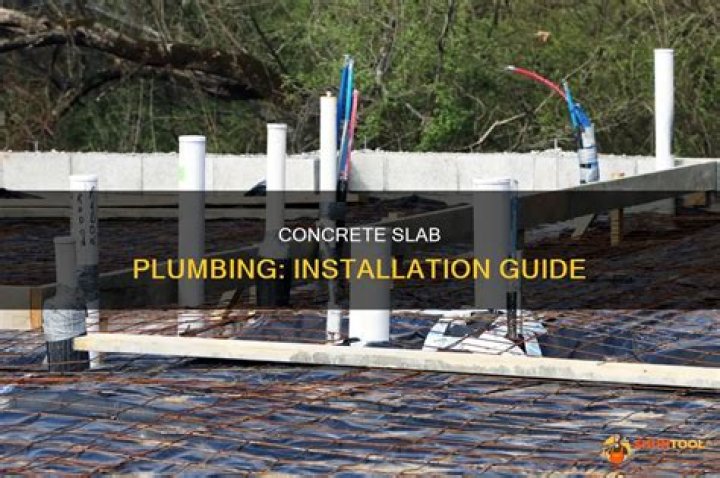

How do you install plumbing on a concrete slab?
How do you install plumbing on a concrete slab?
Step By Step Instructions
- Step 1: Take The Measurements And Purchase The Pipe.
- Step 2: Mark The Cut.
- Step 3: Cut The Concrete.
- Step 4: Install The Pipes.
- Step 5: Cover The Pipe Mouths.
- Step 6: Fill The Trench With Soil And Concrete.
- How do you install a drain in an existing concrete floor?
Do you rough in plumbing before slab?
During the initial building of a home that has a concrete slab foundation and basement level, any plumbing that runs under the home must be put in before the concrete is poured, since the plumbing runs in the dirt, not within the actual concrete.
Do you need to drip faucets on a slab?
Drip outside faucets 24 hours a day (5 drops per minute). This is not necessary unless temperatures are expected to be 28 degrees or below for at least 4 hours. (Be sure to turn off the faucets after the threat of freezing weather.)
What are the dimensions of a rough in toilet?
However, it’s useful to know that toilet’s also come in: 1 10-inch rough-in. 2 14-inch rough-in. More …
How big of a vent do you need to plumb a toilet?
So those in UPC jurisdictions, simply make sure this distance is 6 feet or less (Footnote 2 of Table 1002.2). Additionally, if you plumb your toilet with a 4 inch toilet drain (which isn’t usually necessary), the UPC still limits the trap to vent distance to 6 feet.
How do you do rough in bathroom plumbing?
First, create a map that will represent the rough-in layout for your bathroom. Next, locate the closest drain stack. Draw the path that the drain and water supply lines will take to get to the bathroom. Also, draw the location where the pipes will be installed in the bathroom.
Which is the pipe between the toilet and the vent?
The toilet’s trap arm, also referred to as the fixture drain, is the pipe between the trap and the vent. This distance depends on your local plumbing code. If you’re in the IPC, there is no limitation in length for the toilet’s trap arm. That’s right, no limitation!
Where to stub up toilet pipe before pouring slab?
The toilet flange need to be snug right on top of the FINISHED floor. So, you would just stub up the pipe and cut it down as necessary for final installation of the flange. If it were me I would spend the extra $$$ and go with 4″ pipe.
What’s the minimum vent size for a toilet?
Sizing individual plumbing vents. The minimum toilet vent size depends on your plumbing code. In the IPC toilet vents are 1.5”, in the UPC it’s 2 inches. More on venting a toilet here.
What’s the best way to rough in a toilet?
If your installing the drainage underground, excavate the trench and have a supply of clean backfill ready (sand or gravel) to grade and cover the pipe. Cut in to an existing drainage branch or stack of at least 3″ in size and install a sanitary tee for vertical stacks or a wye on horizontal drains.
Is there a way to vent and Plumb a toilet?
One SIMPLE way to vent and plumb a toilet using a handful of basic DWV fittings. Keep in mind, there are several acceptable methods to vent a toilet, but the scope of this article demonstrates one easy pattern.
