How do you install a kitchen faucet with a side sprayer?

How do you install a kitchen faucet with a side sprayer?

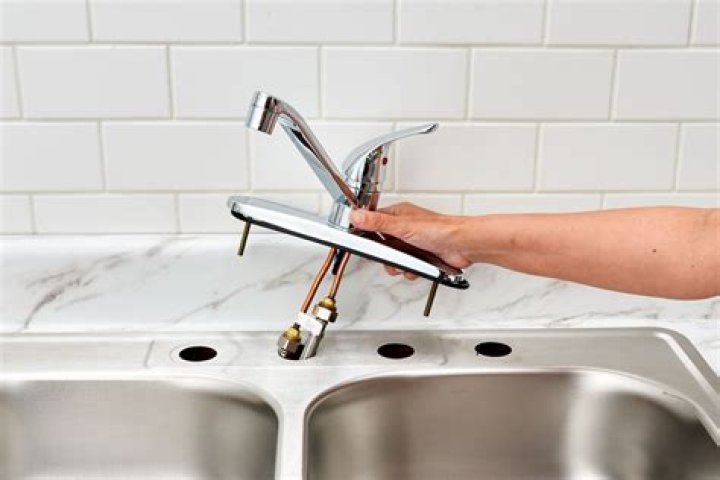

1. Turn Off Water. Turn off the water at the shut off valves under the sink or at the main water supply.
2. Connect Supply Lines to Faucet.
3. Apply Sealant and Position Faucet.
4. Screw on Mounting Nuts.
5. Connect Supply Lines to Shut off Valves.
6. Apply Sealant to Sprayer Base.
7. Screw in Mounting Nuts.
8. Screw in the Sprayer Hose.

Where is the Moen spray on a faucet?

The side spray is packaged with the faucet and is deck mounted either next to or in the same escutcheon plate as the faucet. The name “Moen” is either written or engraved on the side spray.

Do you need a Moen side spray adapter?

Moen makes a variety of side spray connection types which have changed over the years. Your original side spray may be listed as obsolete, however, each model will provide a Recommended Substitution. This will include an updated part number and in some cases a necessary adapter kit to allow you to connect the side spay hose to your faucet body.

How do you install a side spray faucet?

Install the brass adapter 168666 or 168665 by threading it to the end of threads on the underside of the faucet. Remove the white protective sleeve. 2. Remove the protective plastic cap off the end of the side spray hose. 3. Attach the side spray hose onto the quick connect and insert the end of the quick connect over the faucet body.

How to replace a side spray on a kitchen sink?

Replacing a Side Spray 1 Squeeze together the tabs on the retainer and pull down from the valve body to disengage. Back View 2 Remove the the retainer from side spray hose. This will allow the hose to pull through the hose guide. 3 From above the sink, grab ahold of the side spray and pull through the hose guide.

How to change side spray on Moen faucet?

Service Kit (s): Quick Connect Side Spray & Adapter 168666 (Male) or Adapter 168665 (Female) 1. Install the brass adapter 168666 or 168665 by threading it to the end of threads on the underside of the faucet. Remove the white protective sleeve. 2. Remove the protective plastic cap off the end of the side spray hose.

How does a Moen Chateau kitchen faucet work?

The Moen Chateau kitchen faucet is a single-handle faucet with an optional side sprayer and a lever-style handle for convenience. The faucet complies with the Federal Safe Drinking Water Act and is easy to install. If you’re installing the faucet on a new sink, all you have to do is secure the faucet and connect the water lines.

Can a Moen kitchen sink be used with a dishwasher?

The Moen Adler Single-Handle Low Arc Standard Kitchen Faucet with Side Sprayer in Chrome is designed for use in most standard residential kitchen sink applications. Moen fixtures have not been tested for potential compatibility with portable dishwasher attachments; therefore, we cannot recommend any of our products to be used in this manner.

Why does my Moen kitchen sink have a leak?

Related Articles. Kitchen faucet sprayers offer added convenience to any kitchen sink. The sprayers attach to a water supply outlet on the faucet body underneath the sink. Because of excessive use as well as hard-water mineral deposits, the sprayer end can develop a leak or become clogged, causing significant pressure loss.
