How do you fix a bathtub drain stopper lever?

How do you fix a bathtub drain stopper lever?

How to Fix a Pop-Up Drain Stopper

1. Remove the Cover Plate and Plunger. Back out the mounting screws that hold the overflow cover plate to the overflow tube.
2. Clean the Spring. Clean away any debris on the spring at the end of the stopper linkage.
3. Adjust the Connecting Rod.
4. Reassemble the Stopper.

Should bathtub trip lever be up or down?

(continued) Page 2 the pop-up should seat itself and plug the drain opening; when the trip lever is down, the plug should be pushed up so the tub will drain. The drain line itself will generally have a trap that prevents the sewer gases from leaking into the bathroom.

What is a trip lever tub?

The trip lever is the lever that makes the tub drain go up and down.

How do you remove a trip lever drain stopper?

How to Remove a Trip-Lever Drain Stopper:

1. Set the drain to its open position.
2. Unscrew the faceplate that is mounted to the overflow drain.
3. Pull the faceplate free and the rest of the drain stopper’s connected hardware should follow.
4. You may need to wiggle the drain stopper to free its entire length.

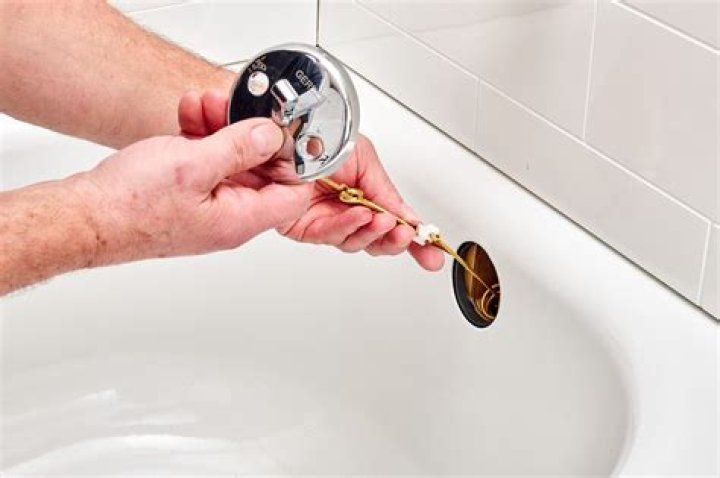

How can I get the trip lever out of my bathtub?

Once the screws are removed, pull the overflow plate away from the tub, and the upper linkage, which is hidden inside the tub, should easily follow. Afterward remove the old stopper and the stopper body, which is the circular metal ring around the drain. The stopper should either pull out or twist out without any issues.

How does a trip lever drain stopper work?

Usually, the problem is easy to fix, though the procedures vary depending on what type of tub stopper you have. Some drains have stoppers that are spring-loaded, operated by a push of the toe or by hand, while others use a trip-lever mounted on the bathtub’s overflow plate.

What are the different types of bathtub drain stoppers?

Types of Bathtub Stoppers 1. Lift-and-Turn Bathtub Drain Stopper 2. Push-and-Pull Drain Stopper 3. Toe-Touch Bathtub Drain Stopper 4. Flip-It Bathtub Drain Stopper 5. Trip Lever Drain Stopper 6. Pop-Up Drain Stopper

How does a pop up bathtub drain stopper work?

Insert the stopper and drain linkage back down through the overflow opening. Reattach the cover plate to the overflow tube. Turn on the water and operate the stopper several times to make sure it is working properly. A trip-lever drain that operates a pop-up stopper uses a slightly different mechanism.

Once the screws are removed, pull the overflow plate away from the tub, and the upper linkage, which is hidden inside the tub, should easily follow. Afterward remove the old stopper and the stopper body, which is the circular metal ring around the drain. The stopper should either pull out or twist out without any issues.

Where is the stopper on a bathtub drain?

You operate this drain stopper by using a trip lever that is installed on the overflow drain on the side of the tub, just below the faucet. This lever is attached to a rod that runs through the overflow drain and connects to and controls a stopper that is inside the drain, rather than on the tub’s floor.

Can a trip lever drain stopper be removed?

When the plunger is pulled up, it levers the drain stopper down into the closed position. From time to time you may need to remove this drain plunger or order to work on the drain, and this can be hard to do if for some reason the plunger has become stuck in the waste-and-overflow tube.

What should I do if my bathtub stopper doesn’t work?

Richard Epstein is a licensed master plumber with over 40 years experience in residential and commercial plumbing. Any bathtub drain stopper that doesn’t do its job is an annoying inconvenience. Usually, the problem is easy to fix, though the procedures vary depending on what type of tub stopper you have.
