How do you control water pressure in high-rise buildings?
How do you control water pressure in high-rise buildings?
For this reason, when water pressure at the upper floors of a tall building with a rooftop reservoir is adequate, there is often overly high pressure at the lower levels. The solution is to install pressure reducing valves (PRVs) to bring the overly high water pressure at these levels back down to acceptable standards.
How does water get to higher floors?
To climb any higher, the water needs help. That’s where the pump comes in, pushing water to the top of the building, where it sits in a reservoir, the familiar wooden water tank. Turn on the faucet and the water travels back down to you. The physics don’t change, even for skyscrapers.
How do high rises get water pressure?
In buildings with roof tanks, pressure is created by gravity, and is lowest near the roof. In buildings with pumps, pressure starts high in the basement in order to get the water all the way to the top floors. In either case, pressure reducing valves are used to keep all apartments below 85 PSI, says Nolte.
Is water pressure lower on higher floors?
All things being equal, water pressure on higher floors is lower than it is on lower floors.
Where is the water tank usually located in a high-rise building?
A water tank is placed in front of the pump system and filled with water from the mains. This allows the capacity of the mains to be lower than the building’s peak demand, ensuring constant pressure even in peak flow situations.

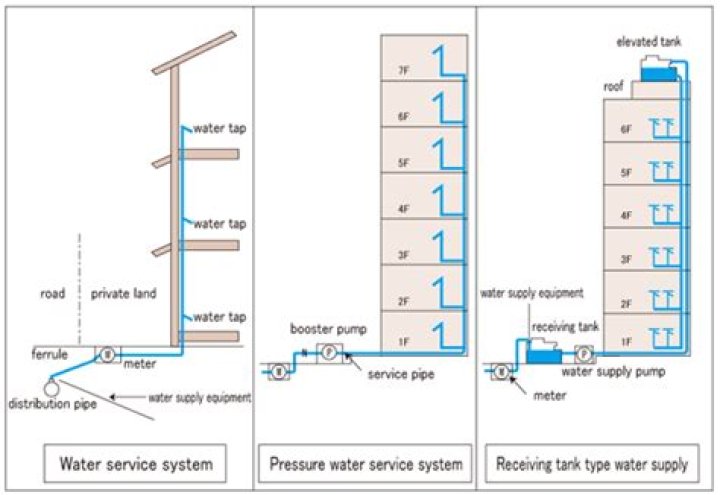

What is the common system of pumping water in high-rise buildings?
The use of overhead tanks to ensure adequate water pressure in buildings, and especially tall buildings, is very common. The alternative to overhead tanks is the use of pressurized systems, where several booster pumps provide the necessary pressure.
Are water towers still used in NYC?
Water towers in New York are everywhere. As buildings grew taller than 6 stories, the main water infrastructure couldn’t handle the water pressure. Water towers were needed to move water safely to the 7th floor and above. Although they looks like remnants of the past, they are still very much in use today.
Which pump is used in high rise building?
A typical developer-built, high-rise building will have a single or duplex booster pump in the basement. The pump serves the entire building with pressure reducing valves on all of the lower floors where the supply pressure will exceed 80 psi.
Which pump is used in high-rise building?
How does water distribution work in high-rise buildings?
When gravity tanks are used in a plumbing system, water pumps are used to pump water from the city’s municipal water system to the gravity tank. As water is used in the building, the pumps periodically turn on to supply the tank with more clean water. While this method is effective, it is not without its problems.
What is normal water pressure in a building?
Water pressure is measured in psi, or pounds per square inch, and represents the force at which water enters your home from the water main. Normal psi for a home pipe system is between 30 and 80 psi. While you don’t want the psi to be too low, it violates code to be above 80.
Why are water leaks a problem in high rise buildings?
Water leaks are exceedingly detrimental to the health of high rise buildings. Water could enter the building envelope through different paths – from damp construction materials during the construction stage, through leaking roofs, basements, water features, wet areas and leaking water installations.
What happens if your water pressure is too high?
Water pressure beyond the normal psi for a residential home strains the water system’s fixtures and valves beyond their functionality and can cause the fixtures to break and cause a massive amount of water damage, if not contained.
When to call a plumber for low water pressure?
Call a plumber if you suspect debris buildup to be a problem. If you have verified that your main valve and regulator are functioning correctly, then you may be encountering debris buildup. Over time, calcium salts, magnesium salts, and other soluble mineral compounds can begin to accumulate in our water pipes.
Why are there so many water leaks in Melbourne?
Water leaks through defective sliding door during high winds. Many people involved in the strata industry say faults in Melbourne’s proliferating apartment buildings are common, blaming poor enforcement of construction standards and an influx of cheap materials.
Why are there so many plumbing problems in high rises?
One of the most common problems I find in high-rise building plumbing systems is pressure zone problems. Problems occur when the plumbing designer or design-build contractor fails to pay attention to the minimum requirements for pressure and maximum requirements for pressure in a plumbing system.
Water leaks are exceedingly detrimental to the health of high rise buildings. Water could enter the building envelope through different paths – from damp construction materials during the construction stage, through leaking roofs, basements, water features, wet areas and leaking water installations.
What causes a sudden increase in water usage?
It’s very important for you to pay attention to signs that leaking is occurring, such as a water usage rise. If the water use rise seems remarkably high, the issue may be in the water main that brings fresh water from the municipal supply into your home. A burst water main will result in large volumes of water waste.
Do you have to take points away for a high rise water system?
They should actually take points away for every floor operated downstream of a PRV in a high-rise water distribution system. There are some exceptions for Pressure reducing valves to reduce normal water pressures down to lower pressures for make-up water to hydronic systems, final rinse water in dishwashers, etc.
