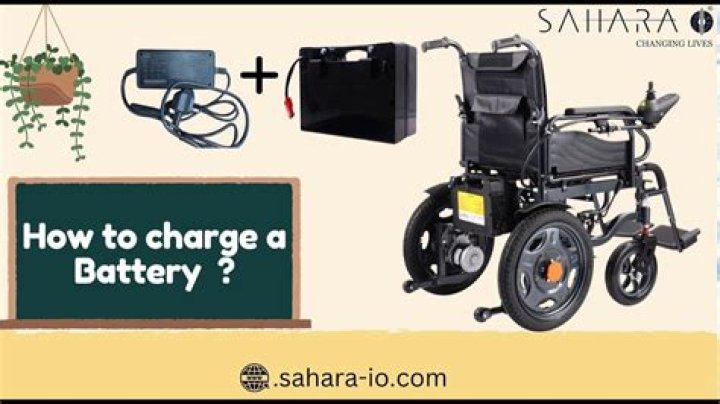

How do you charge a power chair battery

Plug the off-board charger into the off-board charger/programming socket on the controller. Plug the off-board charger into the electrical outlet. When the batteries are fully charged, unplug the off-board charger from the electrical outlet and then from the controller.

How do you charge a dead wheelchair battery?

Plug the off-board charger into the off-board charger/programming socket on the controller. Plug the off-board charger into the electrical outlet. When the batteries are fully charged, unplug the off-board charger from the electrical outlet and then from the controller.

How long do power chair batteries last?

Generally, power wheelchair batteries that are fully charged last up to 8 hours or about 10 miles. The health of the battery influences the amount of time and distance the wheelchair will run on one charge. As batteries age, the travel time on one charge lessens until a replacement is needed.

Can wheelchair batteries be recharged?

Recharge the batteries of your power wheelchair every night. Regardless of how much you have used the chair, and even if you haven’t used it at all that day, the batteries should be fully recharged every night.

How long does it take to charge an electric chair?

How long will it take to fully charge a power chair battery? It usually takes around 8 hours for power wheelchair batteries to reach a full charge. However, brand new batteries might require 10 hours or more of charging.

Why is my electric wheelchair not working?

Powered wheelchairs can commonly be plagued by electrical issues. … If your battery is fully charged and the freewheel levers are in the locked position, but you’re still having trouble getting your wheelchair to move, there could very well be an internal electrical fault.

Why won't my power chair won't charge?

If the battery doesn’t charge then it could be the fuse near the charging port that is blown, therefore the batteries aren’t receiving the charge. Last but not least, your charger could be bad, to check that you would need a multi meter to measuer the DC voltage with the charger on (you should get about 26 – 29 volts).

How long does it take to charge a Jazzy power chair?

It is an offboard charger that fully charges the batteries in 8-14 hours. Just position your chair in front of a wall outlet, turn the controller off and engage the freewheel mode, plug the charger cord into the wall outlet and the other cord into the socket on the controller.

How long should I charge my mobility scooter?

A. Only use the charger that is supplied with the vehicle. When you put your scooter or wheelchair on charge, leave it until it has been fully charged and the light shows green. Sometimes this can take 12 hours or more so we recommend charging over night.

Why won't My Jazzy chair won't charge?

Make sure the the Jazzy power switch is OFF. If the batteries do not charge there could be several problems. … The Jazzy device for routing the volt/amps from the plug in to the batteries is defective. A blown fuse or the breaker may be open and requires a reset.

Article first time published on

Are wheelchair batteries deep cycle?

wheelchair batteries are “deep cycle” batteries, which mean they have to be fully discharged before recharging. Most batteries can be recharged as much as 300 times before they lose holding power capacity.

How do I know when my Jazzy is fully charged?

If the battery of your Jazzy scooter won’t hold a charge, examine the two indicator lights on the off-board battery charger. A flashing green light indicates that the battery is charging; a solid red light indicates there is sufficient power to the charger.

What kind of battery does a wheelchair use?

There are two main types of mobility batteries used to power wheelchairs: deep cycle AGM or gel sealed lead acid batteries. Either type can be used as a replacement battery for a wheelchair. In most cases, deep cycle AGM batteries, or lead acid batteries are cheaper but require more maintenance.

How many watts does a wheelchair charger use?

Wheelchair chargers only take around 30 watts for a 2 amp charger to 200 watts for an 8 amp charger (we’re including some of the inefficiencies of the charger in the equation), so they are not significantly taxing on a generator or emergency power.

What do the lights mean on a battery charger?

The red led light indicates there is AC power to the battery charger. The yellow led light indicates the charger is charging the battery. … Flashing red means bad battery, amber lightning bolt means that the battery is charging, plain solid red means your connections to the battery are loose.

What does a red light on a battery charger mean?

Occasionally, the charger might show blinking red right to indicate bad batteries. … This indicates that the battery already have a full charge. If charging is needed, briefly drain the batteries before trying again. If the light blinks red in about 90 seconds after battery insertion, then the battery voltage is too low.

Where do I plug my charger in my scooter?

Plug the charger into the power outlet first If it says to plug the charger in the scooter first, and then in the power outlet, do as the manual says. Anyway, to avoid short circuits and malfunctions, it’s usually recommended to plug the charger in the power outlet before it’s connected to the scooter.

Where is the reset button on my Jazzy power chair?

Jazzy Reset Button: You can locate it on the battery pack of the chair. The ‘reset’ button is in the battery pack area. You can press the button if the Jazzy power chair needs to be reset.

How long does a power wheelchair last?

Power wheelchairs are built to be long-lasting and durable. Their expiration date depends on the usage and treatment they regularly endure. A well cared for power wheelchair can last up to five years or more with regular maintenance and repairs.

Where is the reset button on a mobility scooter?

Reset Button When the scooter is running on a low battery, the main circuit breaker may trip to prevent damage to the motor and electronics. Naturally, all the electrical systems go offline when the breaker trips. This will cause the reset button to pop out at the rear section of your scooter.

Why is my power chair beeping?

Beep Codes. Condition: The battery voltage is to low and can not power up the scooter. Solution: Replace charge the scooter completely, or replace the batteries. … Solution: Ensure your scooter is in drive and not neutral.

How do I know when my mobility scooter is fully charged?

Charging times can vary significantly depending on the size of the scooter, type of battery and charge remaining in the battery. However, a full charge can take anywhere from 6 to 10 hours. The battery is fully charged when the light on your charger turns green. In some cases, this light might also flash green.

Why is the red light flashing on my mobility scooter?

If the charging indicator on the battery charger is showing solid or flashing red, this means it is properly charging the battery and the battery is accepting the charge. … If the charging indicator is flashing alternate red/green, this indicates there is an electrical problem with the battery pack.

Can you leave a mobility scooter on charge all the time?

Even if you only use it for short trips, just plug it in when you get back and charge it overnight; the battery will stay charged and healthy for longer. There’s no such thing as ‘overcharging‘ the battery on a mobility scooter, so don’t be afraid to leave yours charging overnight.

What does charging inhibition mean?

RE: battery charger inhibit It usually is some sort of an open emmiter/drain type of transistor/mosfet stage that sinks whatever enable signal from the wheelchair’s motor controller to a low logic state;thus preventing a drive-away.

What does fault mean on a battery charger?

It means the charger has stopped working and is not charging the battery and we had to buy a new one, check out the internet and ask your question, we did and it gave a real good explanation.
