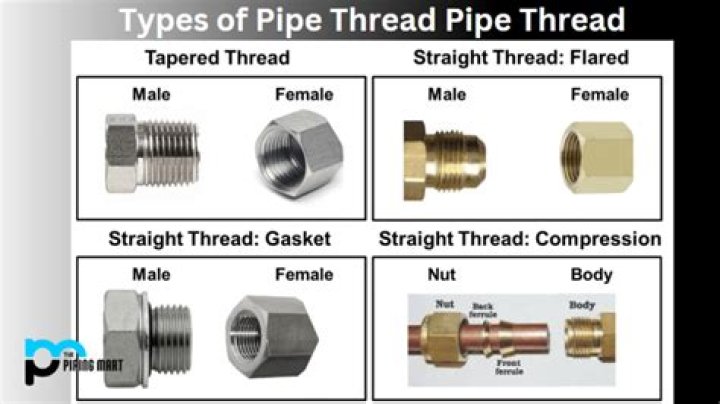

How do I tell what type of pipe thread I have?
How do I tell what type of pipe thread I have?
Thread dimensions are based on the ID of the pipe. Use a caliper, measuring tape, or ruler to measure the thread diameter of a male thread or female thread. Measure the inner diameter (ID) of the female thread and the outer diameter (OD) of the male thread. This number will help determine the thread dimension.
How many types of pipes are used commonly?
Types of Pipes There are five plumbing pipe materials that are — or were in the case of galvanized steel — most common: copper, galvanized steel, polyvinyl chloride (PVC), chlorinated polyvinyl chloride (CPVC) and cross-linked polyethylene (PEX).
Which type of piping is the most commonly used?
The most common pipes used today are copper, PVC, or ABS. However, when dealing with older homes, you might encounter a number of other piping material. For example, homes built before 1960 used galvanized steel or cast iron DWV (drain/waste/vent) pipe systems.
What kind of pipes are used in plumbing?
PVC pipe has been a very big deal in the plumbing industry in the last few decades, because it is lighter and easier to work with than traditional galvanized steel pipe. You will mainly be using PVC pipe for drain or waste pipes, or stacks (those pipes you often see sticking up out of the roofline), and not as supply pipes.
What kind of pipes were used in homes before 1960?
For example, homes built before 1960 used galvanized steel or cast iron DWV (drain/waste/vent) pipe systems. Here’s a quick look at types of pipes commonly used in homes, beginning with the pipes used for DWV systems. Cast iron: Commonly used before 1960 for the vertical drain, vent stacks, and sometimes the horizontal drain lines.
What kind of tool do you need to cut copper pipes?
To cut rigid copper, you’ll need a wheel cutter, tube cutter, or a hacksaw. Pipes are usually connected with soldered (sweat) fittings and compression fittings can connect the pipe to shut-off valves. Flexible copper, which is often used for dishwashers, refrigerator icemakers, and other appliances that need a water supply.
Which is easier to install PEx or plastic pipe?
Approved in many regions of the country, PEX is easy to install because it cuts easily, is flexible, and uses compression fittings. However, more permanent connections require a special crimping tool. PEX is three to four times more expensive than copper or plastic. Steel: Galvanized steel pipe is common in older homes.
What is the ASME B31.3 Process piping guide?
Rev. 0, 9/17/2014 REF-3 ASME B31.3 Process Piping Guide Page 5 of 171 effects, etc.), layout, serviceability, steam tracing, grounding, valve and component selections, design of pipe supports, material traceability, gasket selection, as-built tolerances, insulation, cleaning for special process, etc.
Which is the best type of sewer pipe to use?
Cast-iron sewer pipe, like clay pipe, is associated with older homes, yet it is still installed today. One of the best things about cast iron pipe is that it is incredibly strong. A four-inch diameter sewer pipe can withstand well over two tons of pressure per linear foot.
Where to get clarification on piping related codes?
A user who desires clarifications on the application of piping related Codes and Standards should contact the LANL Engineering Standards Pressure Safety Point-of-Contact. In the event of a contradiction between this and other ESM material, the other material shall have priority.
What are the different types of plumbing pipes?
Galvanized Steel Pipe and Cast Iron. 1 PEX Pipe. PEX, or cross-linked polyethylene, pipe is one of the newest and most popular pipes to hit the plumbing market. PEX is used only to supply 2 PVC Pipe. 3 Rigid Copper Pipe. 4 ABS Pipe. 5 Flexible Type Connection. More items
