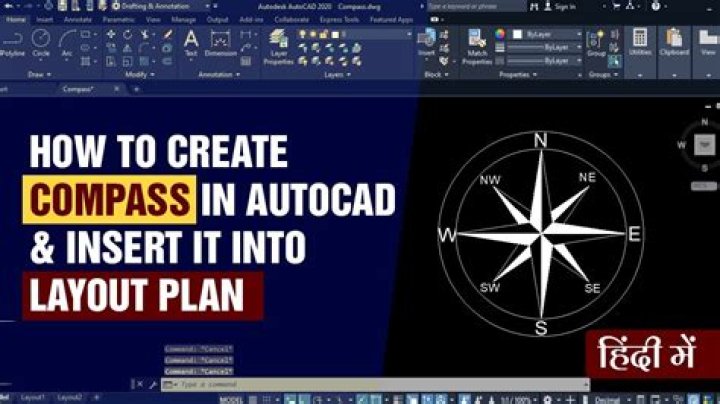

How do I show compass in Autocad

Right-click the ViewCube, and click Options. In the ViewCube Options dialog box, under Compass, select, or clear the check box for Show the Compass. When selected, the compass displays beneath the ViewCube, and indicates the direction of North for the model. When cleared, the compass is hidden.

How do I show the compass in AutoCAD?

Right-click the ViewCube, and click Options. In the ViewCube Options dialog box, under Compass, select, or clear the check box for Show the Compass. When selected, the compass displays beneath the ViewCube, and indicates the direction of North for the model. When cleared, the compass is hidden.

What is AutoCAD compass?

As you draw, the Compass guides the direction of your run. It is helpful to use the Compass to align your parts with walls, ceilings, and other architectural elements in the drawing. You can use the Compass Settings dialog box to control tick marks, snap increment, compass diameter, and color.

How do I check directions in AutoCAD?

1. Select an object in the drawing area, and click <Object> tab General panel Object Viewer.
2. Change the view direction as desired.
3. Click . Alternatively, you can right-click in the preview area, and click Set View.

Where is the symbols panel in AutoCAD?

The available symbols can be found at Ribbon panel -> View tab -> Palettes panel, to launch the palettes. Alternatively, use the keyboard combination CTRL+3 to access the same palettes. Some symbols can be found in the sample files that come with AutoCAD.

How do you make directions in AutoCAD?

1. Click Manage tab Style & Display panel Display Manager.
2. Expand Configurations.
3. Select the display configuration you want to edit.
4. Click the Configuration tab.
5. Under Display Representation Set, select the appropriate display set for each view direction. …
6. Click OK.

How do you draw a compass step by step?

Draw a small triangle on each side of the compass needle, and sketch a short, straight line on each side of the triangles. Around the outside of the dial, draw four equidistant small triangles, one at the top, bottom, left, and right sides. Draw short, straight lines along the dial edge between these triangles.

How do I change the direction of my compass in AutoCAD?

1. Click Geolocation tab Location panel Reorient Geographic Marker. Find.
2. Press ENTER.
3. At the command prompt, enter the angle from the X axis to the north direction.

How do I change the direction of an arrow in AutoCAD?

1. At the Command prompt, select a single dimension object near the arrowhead that you want to flip.
2. Right-click. Click Flip Arrow.

How do you draw North in Autocad?

1. If desired, create a display map and add any viewports you need. See To Work With Display Maps. …
2. Switch to paper space.
3. Click Layout Tools tab > North Arrow.
4. Select a north arrow style from the list. …
5. Select a viewport for the north arrow.
6. Click a spot to place the center of the north arrow.

Article first time published on

How do you add a north arrow in Autocad 2018?

Click Layout Tools tab > North Arrow. Select a north arrow style from the list. To use a custom style, click Load Custom North Arrow and navigate to the drawing containing the north arrow block. Select a viewport for the north arrow.

How do I create a symbol library in AutoCAD?

1. In the drawing area, double-click the symbol to add to the library.
2. If necessary, further customize the symbol.
3. Click Add.
4. Enter a name for the symbol.
5. Click OK.

What is a symbol library in AutoCAD?

AutoCAD Mechanical 2021. Aug 25 2020In-product view. Symbol libraries provide a convenient way of inserting frequently used symbols in a drawing.

How do I insert electrical symbols in AutoCAD?

Symbol Builder works in the AutoCAD block editor environment. Use the Symbol Builder Attribute Editor palette to insert the necessary attributes for the selected symbol type. Draw the graphics needed for the symbol. Follow the AutoCAD Electrical toolset naming conventions when saving a schematic symbol.

How do you indicate north on a drawing?

A. Maps should be drawn with north toward the top of the sheet. If this orientation is not feasible, the map should be drawn with north toward the left. A north arrow must be shown on all maps.

How do you add a north arrow in AutoCAD 2020?

Click Layout Tools tab > North Arrow. Select a north arrow style from the list. To use a custom style, click Load Custom North Arrow and navigate to the drawing containing the north arrow block. Select a viewport for the north arrow.

What is north arrow?

A north arrow maintains a connection to a map frame and indicates the orientation of the map inside the frame. When the map rotates, the north arrow element rotates with it.

What is the compass drawing?

A compass (or pair of compasses) is a drawing tool that can be used to draw circles or arcs, parts of circles. They can also be used to measure distances, in particular on maps.

How do you change to North in AutoCAD?

1. Click Geolocation tab Location panel Reorient Geographic Marker. Find. Note: The Geolocation tab displays only after you set a geographic location using AutoCAD 2014 or later.
2. Press ENTER.
3. At the command prompt, enter the angle from the X axis to the north direction.

How do you add navigation in AutoCAD?

1. Click View tab Viewport Tools panel Navigation Bar Find.
2. Select or clear the check box.

How do I create a flow arrow in Autocad?

1. Open project setup.
2. Switch to the node “P&ID DWG Settings > P&ID Class Definitions > EngineeringItems > Lines > Pipe Line Segments > <specific pipe line segment class>.
3. Click “Edit Line…”.
4. In the dialog box, select for property “Show Flow Arrows” the value “Yes”.

How do I change my UCS back to normal?

“At the command line, type “UCS” then choose the “World” option. Next type “Plan” and choose “World”. Yes, I’ve tried that. The UCS resets itself to the World position where I’d like it to remain, then on changing views reverts to the other position.

How do I change my UCS view in AutoCAD?

To display the Coordinates panel, right-click anywhere on the View tab and choose Show Panels > Coordinates. Click View tab Coordinates panel Z. To rotate the view 90 degrees clockwise, enter 90. To rotate the view 90 degrees counterclockwise, enter -90.

Where is the UCS icon in AutoCAD?

1. Click Visualize tab > Coordinates panel > Show UCS Icon at Origin. Find. Note: If the Visualize tab isn’t displayed, right-click on the ribbon tabs, then select Show Tabs > Visualize.
2. At the Command prompt, enter UCSICON. Then, enter ORigin.

How do you draw a compass rose step by step?

1. Draw Two 12′ Legs.
2. Draw Two More 6′ Legs.
3. Make Marks at 6″ up the 6′ Legs.
4. Draw the Sides of the Four N/S/E/W Legs to the Marked Points.
5. Draw Marks 6″ up the Point Edges from the First Marked Points.
6. Draw the Sides of the Short Points From the Tip to the New Marks.

How do I add a north arrow in Autocad 2019?

Click Layout Tools tab > North Arrow. Select a north arrow style from the list. To use a custom style, click Load Custom North Arrow and navigate to the drawing containing the north arrow block. Select a viewport for the north arrow.

How do I add symbols in AutoCAD 2021?

1. In the In-Place Text Editor while editing or placing mtext, right-click and select Symbol.
2. On the contextual Text Editor ribbon tab, which displays while editing or placing mtext, click Symbol.

How do I use the tool palette in AutoCAD?

Press CTRL+3 to open tool palettes, you will see many tabs arranged in this palette like annotation, construction and modeling. Right click on any tab from this palette and select new palette from the contextual menu which appears. Give your palette a name, for our example, I am naming it as Custom palette.

Where are trees in AutoCAD?

On the DesignCenter toolbar, click Tree View Toggle. In the tree view, navigate to the drawing that contains the block definition you want to insert.
