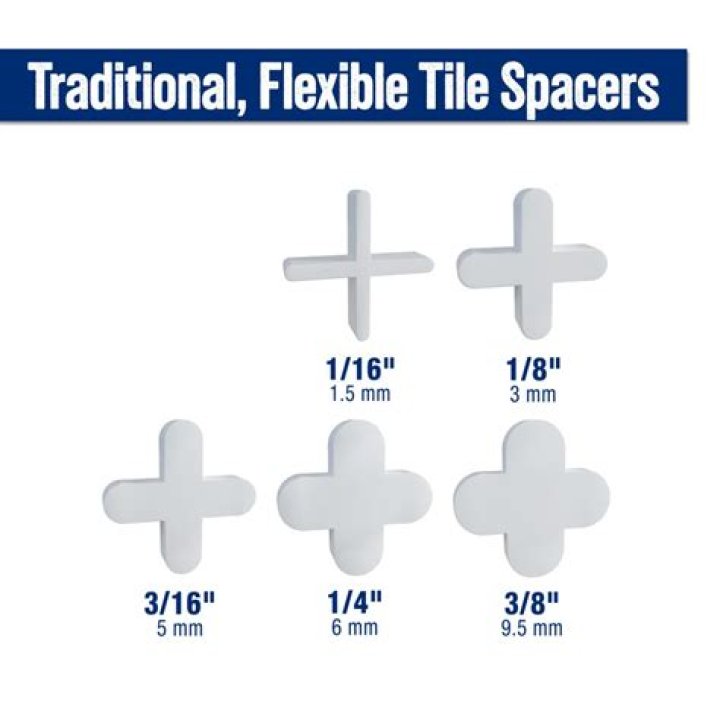

How big should tile spacers be

For a standard look, you should have 1/8 inch grout lines for the floor and 1/16 inch for the walls. If you are using regular sized tiles from 16 by 16 inches to 12 by 12 inches, you can go up by 3/16 inches, depending on the overall look you want.

How big should tile grout lines be?

Grout lines need to be at least 1/16” for the grout to even fit, and often larger than that depending on a variety of other factors. For some grouts, like sanded cement grout, 1/8” is the minimum line size.

What size spacers should I use for 12x24 tiles?

Installing 12×24 Tile: Grouting We used 1/4 inch spacers to achieve the perfect grout lines that you see here and I would definitely recommend using them, even if you think you’re pretty comfortable with tiling.

How big should the gap be between tiles?

Common practice is 2-3mm for wall tiles and 3-5mm for floor tiles. The key difference in tile type, in relation to grout lines, is whether you tile is rectified or not. A rectified tile is one which is cut or manufactured to a precise measured size.

How many spacers do I need?

After your first tile is laid, put a spacer on each corner of the tile (ensuring they are flush). Note: When using floor tiles it is also recommended to use two “square” spacers per side (in addition to the plus spacers on each corner). This provides additional accuracy along the length of the tile.

Should tile spacers be left in?

Tile spacers should be removed around 20-30 minutes after the adhesive begins to set on your tile floor. You don’t want to remove them too soon, because this can cause your tiles to shift. And, conversely, you don’t want to leave them in for too long, because this can lead to stuck spacers.

How should 12x24 tile be laid?

12×24 tiles should be laid in a fairly thick mortar bed so each tile can be adjusted flush with the other to avoid lippage. Choose tile direction according to the size of the room.

How do I choose tile spacers?

Spacers Size For a standard look, you should have 1/8 inch grout lines for the floor and 1/16 inch for the walls. If you are using regular sized tiles from 16 by 16 inches to 12 by 12 inches, you can go up by 3/16 inches, depending on the overall look you want.

How thick should floor tile adhesive be?

So a 12mm x 12mm trowel will leave a 6mm high bed of adhesive beneath the tile. A 6mm x 6mm trowel will leave a 3mm bed of adhesive beneath the tile. Using a U-notched trowel and embedding the tile into the adhesive leaves you with a bed of adhesive beneath the tile a little over 1/3 the size of the trowel teeth.

How much space do you need between 12 inch tiles?

Instead, variations up to 1/8 inch are standard when installing 12-inch tiles in the field, which is why the normal grout joint is 1/4 inch to 3/8 inch because it helps hide these inconsistencies.

Article first time published on

How thick should the Thinset be for wall tile?

In most installations, a layer of thinset 3/16 to 1/8-inch thick is sufficient. Too much thinset creates a mess and inhibits proper bonding between the tile and the substrate. For most tiles, apply a layer of thinset 3/16–1/8-inch thick.

How do you measure tile spacing?

Measure any border or edge areas in inches. Add separate areas together to get the total number of linear inches needed for borders or edge tiles. Divide this number by 12 to get the total number of linear feet needed.

What is the smallest tile spacer?

• 1 of the world’s smallest tile spacer.
• 2-sided design allows for perfect placement in tile intersections and between tiles.
• Ideal for setting marble, granite and other natural stone.

Should tiles be laid vertically or horizontal?

Lay bathroom wall tiles horizontally when you want your space to look wider horizontally. If you have a limited floor space but a tall bathroom, you might like to choose this option. It will visually open up the space, giving you the illusion that the space is wider and longer than it actually is.

Can I use pennies for tile spacers?

When laying tile, use pennies as spacers instead of store bought plastic ones. Pennies are easier to handle, more uniform and cheaper.

How long should you leave tile spacers in?

The spacers need to be in place until the tile adhesive sets, which usually takes from 20 to 30 minutes. Don’t leave them much longer than that, or they may get bonded to the adhesive. It’s never a good idea to leave spacers in place permanently and grout over them.

How long does tile have to set before grouting?

24 to 48 Hours You should wait at least 24 hours before grouting the tiles. You may notice that the edges of the thinset or the thinset showing through the grout lines looks dry. Don’t be fooled by this. The thinset under the tiles isn’t receiving as much air as the edges and is therefor not fully cured.

What size tile trowel should I use?

All tile manufacturers offer a recommended trowel size. Mosaic installations up to 2 inches can use a 1/8-inch notch, as can wall tiles of up to 4 inches, as a general rule. 16-inch tiles need a 1/2-inch-deep notch, and anything over 24 inches should use a 3/4-inch notch.

Can you use too much tile adhesive?

What happens when the adhesive is too strong? This might sound awkward, but sometimes the adhesive creates a better bonding with the substrate than with the tile, causing a weak point at the tile adhesion.

What is the thinnest grout line for tile?

First, the smallest grout lines, less than 1/8 inch, are ideal for rectified tiles. Rectified tiles are perfectly uniform, with precisely defined edges, requiring the least amount of grout.

Can you use 3mm spacers for floor tiles?

Tile spacers are key to creating a uniformed grout line for a professional finish, Regardless of the type or style of tile (porcelain, ceramic or stone) a minimum of 3mm tile spacers should be used for floor tiles. Depending on the tile, the spacer required can go as high as 10mm.

How big can grout lines be?

Finished grout lines will vary from 1/16″ to 3/16″. Note that using the smallest grout possible will increase installation time.

What size trowel should I use for 12x12 tile?

Floor tiles measuring 12 by 12 inches are considered standard, requiring a notched trowel size of either 1/4 inch by 3/8 inch or 1/2 inch by 1/2 inch.

Is back buttering tile necessary?

Although not necessary for tile coverage, back buttering can be effective by increasing the bond of the mortar to the back of the tile which is an excellent benefit.

How do you check if tiles are laid properly?

To check a row of tile, line up the laser with a grout joint and point it straight across the room. Have an assistant hold the laser while you check from one end to the next. The grout joint and edge of the tiles should match the laser right to the end; if they don’t, the tile is not straight.

How do you calculate tile layout?

1. Multiply the length of the room times the width to determine the room’s square footage. For example, a 12- by 15-foot room has a square footage of 180 feet.
2. Compare the tile size to the room size for an estimate of the amount of tile needed.

How wide should grout lines be in shower?

Regular-format tiles (up to 16-by-16 inches square) call for grout lines 1/8 inch wide for floors. Large-format tiles, 18-by-18 inches wide, require a smaller grout line (1/32 inch). In general, don’t create grout lines larger than 3/16 inch, though slate and quarry tiles can work with as much as a 1/4-inch grout line.
