How are two wire sensors designed to work?
How are two wire sensors designed to work?

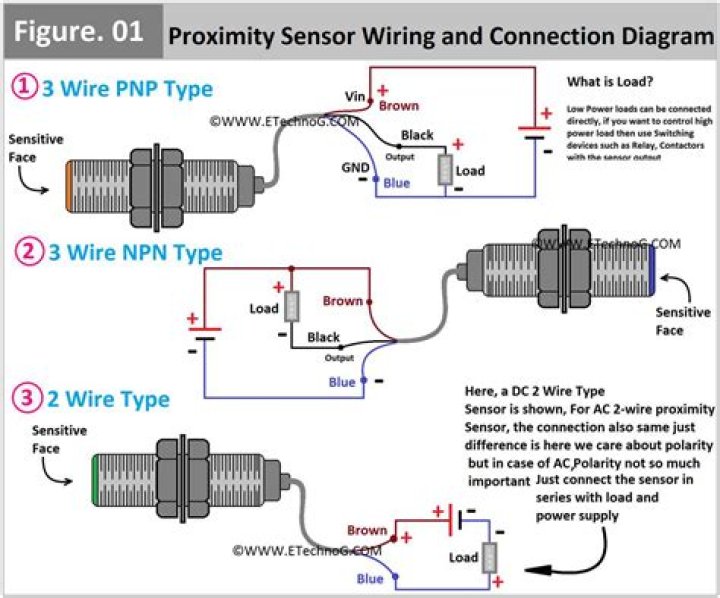

Two-wire devices are designed to wire in series with the load. In a 3-wire configuration, two of the three leads supply power while the third switches the load. Both types can be wired strategically, in series or parallel configurations, to conserve inputs or perform logic.
Is the AC transformer the same as a position sensor?
This is an inductive type position sensor which works on the same principle as the AC transformer that is used to measure movement. It is a very accurate device for measuring linear displacement and whose output is proportional to the position of its moveable core.
What do you call a failed battery sensor?
BMW calls it Intelligent Battery Sensor or IBS. A failed IBS is known to cause variety of electrical problems including a no-start. A battery sensor is a fragile device and can also be damaged when servicing or removing the battery.
Which is positional sensor does not suffer from mechanical wear problems?
One type of positional sensor that does not suffer from mechanical wear problems is the “Linear Variable Differential Transformer” or LVDT for short. This is an inductive type position sensor which works on the same principle as the AC transformer that is used to measure movement.
How are the different types of sensors work?
Basically there are two types of sensors: active and passive. The sensor working principle in each of these devices varies to a certain extent. These sensors use ultrasonic sound waves to track any movement in the specified range. The detectors emit ultrasonic sound waves and wait for the energy to be reflected back.
Why are digital sensors less susceptible to electrical interference?
This is because digital sensors are less susceptible to electrical interference and they have a lower design risk. One of the most prevalent types of sensors are sound sensors, better known as microphones. A microphone converts the air pressure variations of a sound wave into an electrical signal.
How are we making sense out of sensors?
All across that sensor, the voltage is being reduced from five down to zero as the voltage travels from one end to the other. All we are doing is tapping into that sensor’s resistor and making voltage measurements at different points across that resistor.
How are signal wires connected to a sensor?
The signal wire is connected to a sweeper inside the sensor. Wherever the sweeper is moved to along the sensor’s internal resistor, the signal’s value will change accordingly. To illustrate, look at Figure 1. At the VREF side of the sensor, we have 5 volts. At the ground side, we have zero volts.
