Does the fill valve go into the overflow tube?

Does the fill valve go into the overflow tube?

While the tank is refilling a small amount of water is also going from the Fill Valve through the Refill Tube into the Overflow Tube. The Overflow Tube empties directly into the toilet bowl. If it weren’t for the Refill Tube there would be only a small amount of water in the bottom of the bowl.

Where should water come out of fill valve?

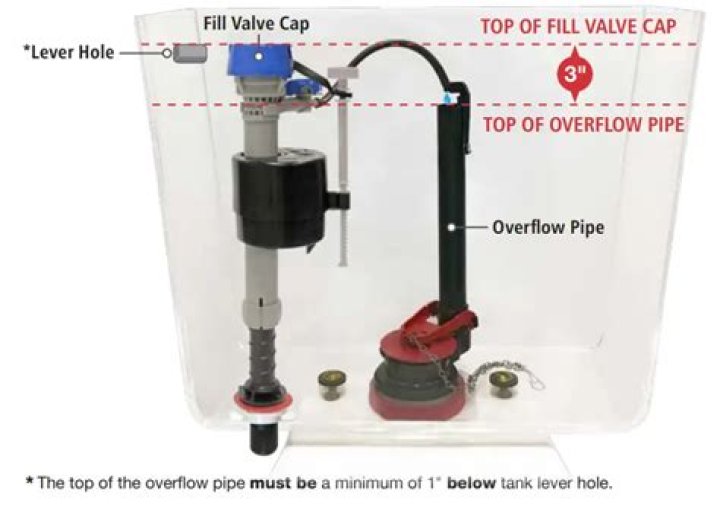

On some float cup valves, there is a plastic screw mechanism you can turn to raise or lower the float. In any case, the water level should be about 1 inch below the top of the overflow tube and the critical level mark on the fill valve.

How do you flush a toilet that won’t fill up?

What do you Do When Your Toilet Tank Won’t Fill?

1. Adjust The Toilet Float. Your toilet will either have a float ball or a float cup/cylinder.
2. Replace the Fill Valve.
3. Replace the Toilet Flapper.
4. Replace the Overflow Tube.
5. Check the Toilet Water Pressure.
6. Open the shut Off Valve.

What do you do when your toilet tank won’t fill?

What kind of fill valve does Kohler use?

The GP1138930 universal fill valve has a white cap and can replace most other KOHLER® fill valves. For specific information on what fill valve to order for your toilet, reference Finding Common Toilet Parts. For fill valve replacement instructions, view the Instructional Video. NOTE: Restrictor tolerances may alter specific refill rates shown.

How to fix a Kohler toilet overflow valve?

Corrective Actions: 1 Partially close the water supply shut-off valve. 2 Check the fill valve for debris, and clean as needed. 3 Make sure the rim feed hose (if equipped) is connected to the overflow and fill valve. 4 Replace the fill valve with a genuine KOHLER fill valve for optimal performance.

What does the flow restrictor on a Kohler toilet do?

The flow restrictor restricts the flow of water refill into the bowl during tank refill so the bowl fills in about the same period of time as the tank.

How do you change the fill valve on a toilet?

To select the correct insert, check the color on the old fill valve being replaced, and use the same color on the new valve. When a conventional toilet is flushed, the bowl simultaneously refills with water as the tank refills. However, the tank is much larger than the bowl and typically fills at a significantly slower rate.
