Does expansion tank go on cold water side?
Does expansion tank go on cold water side?
Does the expansion tank have to be installed on the cold side? Although expansion tanks can be installed on the hot side, we strongly recommend they be installed on the cold line, downstream of the shutoff valve.
Does expansion tank go on hot or cold line?

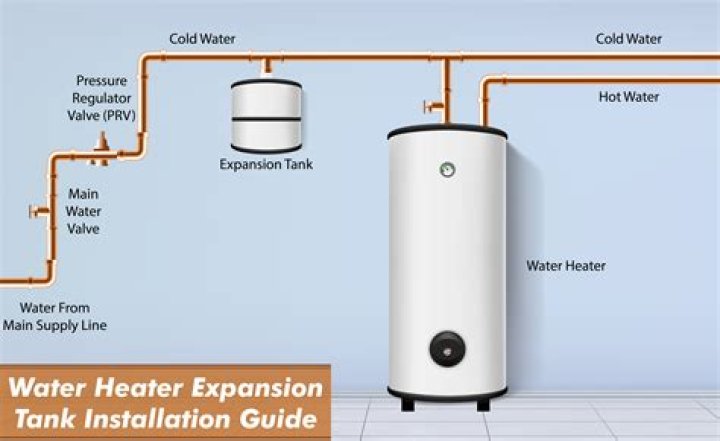

The expansion tank (potable water type) should be installed on the inlet cold-water line. It can be installed anywhere in the building on the cold-water supply (after the regulator). It is usually installed by plumbers on the cold-water inlet of the water heater.
Do I need an expansion tank on my water line?
An expansion tank is always highly recommended if you have a ‘closed-loop system’ caused by any kind of check valve or pressure regulating valve installed on your house’s water supply line. However, the long-term wear and tear of this excess pressure can reduce the life expectancy of everything in your plumbing system.
What does the cold water tank feed?
Cold water storage tanks are generally situated in the loft. They can be used to supply the hot and cold water taps on the bath. They can also act as a Feed and Expansion tank (F+E) for the heating system. Most of these tanks are fed by a ball valve on mains pressure.
Why is expansion tank on cold side?
One expansion tank manufacturer states: “We recommend the cold water side installation because the tank is not insulated. When the expanded volume enters the tank, it will cool down. With the tank on the cold water side, this expanded volume will pass through the water heater before going out to the faucets.”
Can a bad expansion tank cause low water pressure?
The expansion tank should have absolutely NO effect on your water pressure. The tank precharge is preset to the existing water pressure from the source of the domestic water.. Check your facet strainers for junk. That often happens when the water is turned off and back on.
How do you drain an expansion tank and feed?
Checklist for Draining Down: Lock off the ball valve in your feed and expansion tank. Connect a hosepipe to the drain nozzle on one of your downstairs radiators and run it to a suitable location outside. Open up the drain valve and let the water drain out of the system.
Can a water line expand into a hot water tank?
One expansion tank is for the boiler and heating system lines that are closed off. The other is for your drinking water lines which feed into a hot water tank. With the pressure reducing valve and any check valves, expanding water from the hot water tank can’t expand back out the water mains.
Can a cold water pipe be used in an immersion tank?
A cold water pipe will also feed an immersion tank if you have one. This feed will enter the immersion at the bottom, the water will then be heated and as it gets hotter, will rise to the top. The pressure from the cold feed in, will then force the hot water out of the top of the immersion when the hot taps are opened.
How does an expansion tank ( CHW ) work?
It is simply a closed tank with a connection to the chilled water system. The closed tank has extra space that is filled with air, when the temperature in the system is cold. As the temperature within the chilled water system rises, the volume expands and fills the empty space within the tank. Expansion Tank (CHW)-4
How does a cold water tank work in a cistern?
This feed will enter the immersion at the bottom, the water will then be heated and as it gets hotter, will rise to the top. The pressure from the cold feed in, will then force the hot water out of the top of the immersion when the hot taps are opened.
Where do you put an expansion tank in a hot water line?
Most plumbers install expansion tanks in the hot-water line close to or at the water heater. It seems they do this to use the shutoff valve at the water heater for servicing the expansion tank, or because they simply don’t know there are other options.
Can a hot water tank be installed in a cold water line?
Most plumbers install expansion tanks in the hot-water line close to or at the water heater. It seems they do this to use the shutoff valve at the water heater for servicing the expansion tank, or because they simply don’t know there are other options. Contrary to this common practice, the expansion tank can be installed in the cold-water line.
When to pressurize the expansion tank before adding water?
Pressurizing the air side of the tank to equal the static pressure of the water at the expansion tank location and before adding water to the system. This prevents cold water from partially compressing the air in the tank. The diaphragm only begins to compress when the water temperature rises. 2.
