Does each drain need a vent?
Does each drain need a vent?

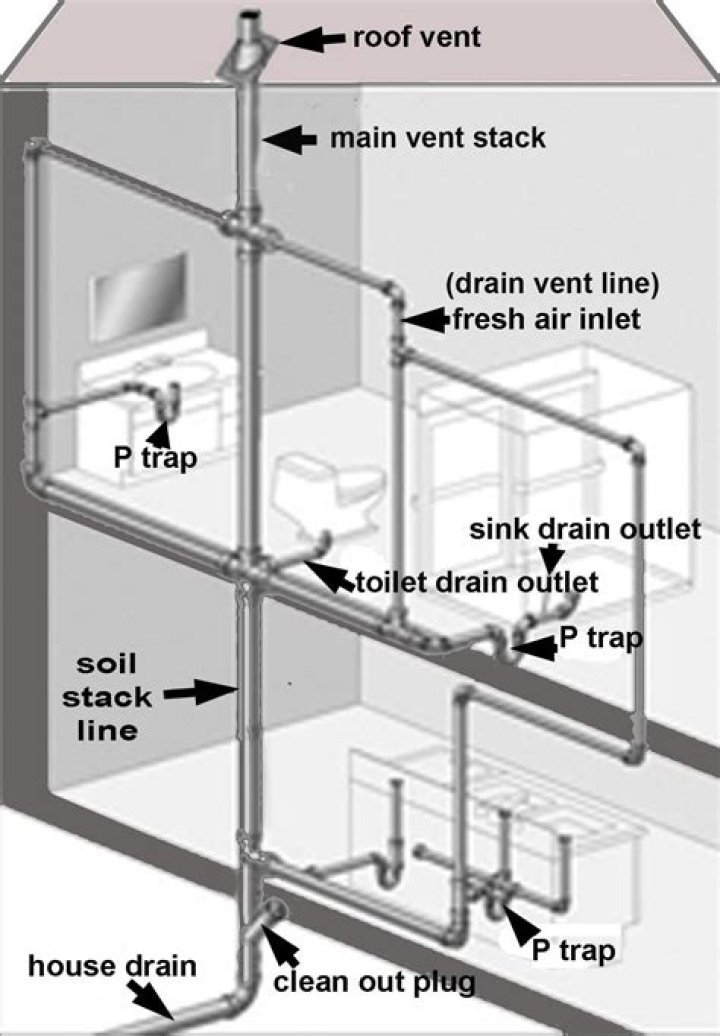

So, does every drain need a vent? The answer is yes, every drain from your kitchen sink, to toilet, shower, laundry, floor drain and more all require venting. Vents are the allowance of atmospheric pressure in drains to prevent airlock from occurring.
HOW FAR CAN 2 drain be from vent?
For a 1 ½-inc pipe the vent should be 42 inches away at the most while a 2-inch pipe must have a maximum distance of 5 feet. For pipes that have a diameter of 3 inches the distance is 6 feet and for a 4-inch pipe the most it should be away from the vent is 10 feet.
How many elbows can a plumbing vent have?
It used to be mostly straight, with one 45-degree bend. Now it has two 90-degree bends. You can install 90-degree bends in vent pipes.
Where to put drain and vent lines in a bathroom?
Drain and vent lines must be positioned precisely, so you should install them before the supply pipes. It may be possible to simplify supply runs by moving a vent pipe over a few inches.
What are the dimensions of a bathroom sink?
The bathroom sink rough-in dimensions are as follows: The center of the lav’s drain is located 18” (approximately) above the finished floor. Also notice the drain is centered right in the middle of this 30 inch vanity. The bathroom sink’s water lines are roughed-in 3 inches above the drain.
What to do if your toilet drain line runs away from the wall?
If the toilet drain does not connect directly to a vent, you must find another way to vent it. If the drain line runs away from the wall where you want the vent, use a reducing Y and a 45-degree street elbow to point the vent line toward the wall.
How big of a vent do I need for a bath LAV?
Both major plumbing codes in the U.S. permit a single basin lav to be roughed in with a 1.25” vent and a 1.25” trap. See IPC Table 709.1 or UPC Table 702.1. However, in this example, I’m going all 1.5 inches. Let’s follow this bath lav’s drain downstream. You’ll see the vertical to horizontal transition pictured below.
Drain and vent lines must be positioned precisely, so you should install them before the supply pipes. It may be possible to simplify supply runs by moving a vent pipe over a few inches.
What are the rules for venting a fixture drain?
906.2 Venting of fixture drains. The total fall in a fixture drain due to pipe slope shall not exceed the diameter of the fixture drain, nor shall the vent connection to a fixture drain, except for water closets, be below the weir of the trap.
Can a bathroom fixture be vented by a horizontal wet vent?
Any combination of fixtures within two bathroom groups located on the same floor level is permitted to be vented by a horizontal wet vent.
Can you combine work drains into a single vent?
You could functionally combine all the new work drains as drawn into a single vertical vent, but remember that it needs to be able to draw air from above their combined drain line. Depending on your code you may or may not be able to combine these into a single vent, but they will need their own vent.
