Does an ejector pump need a vent?
Does an ejector pump need a vent?

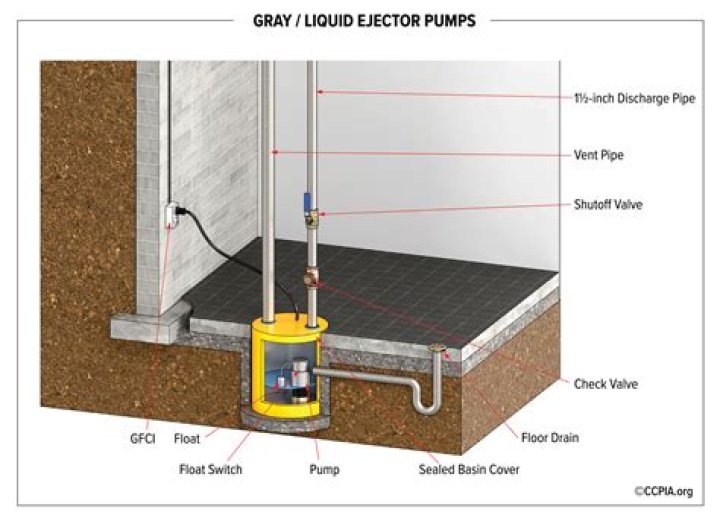

A vent is required for a sewage ejector pump installation to equalize pressure during pumping and to provide an outlet for sewer gasses.
Can you use a studor vent on a sewage ejector pump?
The engineers at Studor have concluded that their valve will allow a sealed sewage ejector pump box to work if you follow their design criteria.
Where does a studor vent go?
STUDOR vents should be installed in the vertical, and upright position. A maximum deviation of 15 degrees is allowed. The vent shall connect to the drain vertically for maintaining an unobstructed opening in the piping to the STUDOR AAVs.
Where does the sewage ejector tank vent end?
The tank vent should be a dry vent that either terminates at the exterior of the house or connects to another dry vent that terminates at the exterior.
How big of a vent do I need for my ejector tank?
The ejector tank should be vented by a connection to the top cover that’s at least 1 1/2 inches in diameter, although 2-inch vent pipe is common in this application. The tank vent should be a dry vent that either terminates at the exterior of the house or connects to another dry vent that terminates at the exterior.
How is the suction volume of a vent pump determined?
Fig. 1 Venting: The factor f is used to determine the vent pumps’ suction volume for suction and siphoning lines. It incorporates a 10 % safety margin which takes into account the gas and air content of the water. within the pump is added to that of the horizontal pipe.
What kind of pump does a venting system use?
Venting systems use water ring pumps or jet pumps (see Eductor-jet pump ). They are employed as automatic systems which keep the pump ready for operation and as start-up systems that prime the suction line and the pump just before it is started up.
The ejector tank should be vented by a connection to the top cover that’s at least 1 1/2 inches in diameter, although 2-inch vent pipe is common in this application. The tank vent should be a dry vent that either terminates at the exterior of the house or connects to another dry vent that terminates at the exterior.
The tank vent should be a dry vent that either terminates at the exterior of the house or connects to another dry vent that terminates at the exterior.
What is the plumbing code for sewage ejectors?
906.5.1 Sewage pumps and sewage ejectors other than pneumatic. Drainage piping below sewer level shall be vented in the same manner as that of a gravity system. Building sump vent sizes for sumps with sewage pumps or sewage ejectors, other than pneumatic, shall be determined in accordance with Table 906.5.1.
Where does a dry vent connect to a drain pipe?
Every dry vent connecting to a horizontal drain shall connect above the centerline of the horizontal drain pipe. 905.4Vertical rise of vent. Every dry vent shall rise vertically to a point not less than 6 inches (152 mm) above the flood level rim of the highest trap or trapped fixture being vented.
