Does a submersible pump need a control box?

Does a submersible pump need a control box?

The 2-wire motor requires no control box because is does not use a starting capacitor. Instead, a 2-wire motor has a built-in electrical device that is used to get the motor started.

How does a submersible pump control box work?

The pump control box turns the well pump motor and the Electrical Outlet on or off when the water level control box signals it. The Chlorine Feed Pump runs when the electrical outlet has power, adding chlorine solution to the source water entering the reservoir.

How do you test a 3-wire submersible well pump?

1. Step One: Determine The Voltage Of Your Well Motor.
2. Step Two: Remove The Power From Your Well Motor.
3. Step Three: Hook One Cord To The Ground And The Other Cord To A Colored Wire.
4. Step Four: Take Measurements With An Awareness Of Resistance Per Foot Readings In Ohms.

How do you bypass the control on a submersible well pump?

Shut off electricity to the pump at the breaker box. Remove the screws on the box holding the pump control. Remove the box from the wiring attached to the back of the control plate. Loosen the screws holding the two wires to the back of the control knob or switch.

How do you test a 3 wire submersible pump?

Can a submersible well pump run dry?

Domestic submersible pumps have either an o-ring seal, single mechanical seal and/or a lip seal and cannot run dry. Most industrial submersible pumps have double seals with a lubricant and these can run dry for a very short time as the seals generate heat and this can damage the seals.

What do you need to know about submersible pump control box?

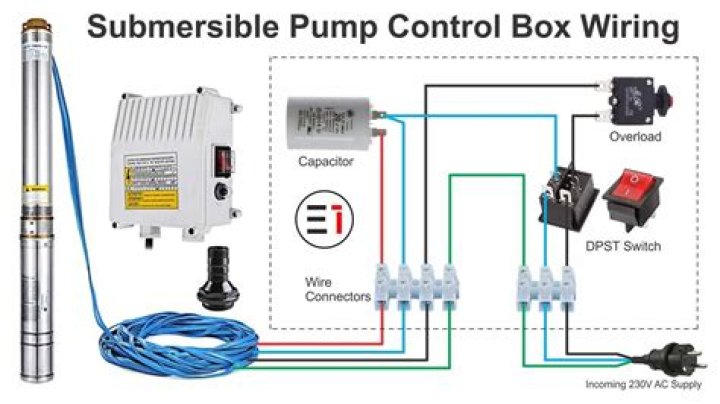

In the post you will completely learn about single phase submersible pump control box wiring diagram, and this diagram not to hard to understand like there own diagram which is mostly available in control box back side. In submersible pump control box we use a capacitor, a resit able thermal overload and DPST switch (double pole single throw).

What kind of switch does a submersible pump use?

In the submersible pump control box, we use a capacitor, a resit-able thermal overload, and a DPST switch (double pole single throw). The wiring connection of the submersible pump control box is very simple.

Why is my submersible pump not working at 300 feet?

There is a good probability the pump has failed due to sand preventing the impeller from turning or because the motor has seized up. But because pulling a pump that is set at 300 feet is a fairly difficult task, other possibilities are pursued first. It is a 3-wire system, and all electronics are mounted inside the control box cover.

How long does it take to pull a submersible pump?

Before pulling the pump, go back to the control box and take additional resistance and current measurements, referring to the information printed inside the control box. With a good helper and power locked out, you can pull a pump-motor assembly in about an hour.

How to connect a submersible pump control box?

The wiring connection of submersible pump control box is very simple. Here is the complete guide step by step. First of all switch of the main circuit breaker in your distribution board, this for that reason that you can work safely and protect himself form electric accidents. Then connect the supply to input wire connectors.

In the submersible pump control box, we use a capacitor, a resit-able thermal overload, and a DPST switch (double pole single throw). The wiring connection of the submersible pump control box is very simple.

Before pulling the pump, go back to the control box and take additional resistance and current measurements, referring to the information printed inside the control box. With a good helper and power locked out, you can pull a pump-motor assembly in about an hour.

Where does the pump control box go in a well?

The control box mounts to a wall next to the well’s water storage tank. A wire set from the storage tank’s pressure switch and a wire set that leads to the pump motor enters the control box.
