Does a dishwasher drain hose need an air gap?
Does a dishwasher drain hose need an air gap?
Hear this out loudPauseAir gaps are the most effective means of preventing your drain from cross-contaminating your dishwasher with waste. If you want to protect your dishwasher from flooding with contaminated water, you need an air gap. Dishwasher air gaps are also required by plumbing codes in many locations.
Why is dishwasher draining through air vent?
Hear this out loudPauseIn a properly functioning air gap, the dishwasher hose attaches to an input on the air gap, and the water is expelled out the end. One of the most common reasons for an air gap clog is failure to remove the knockout plug from the input where the water line enters the garbage disposal.
Can I remove dishwasher air gap?
Hear this out loudPauseThe top of the air gap, known as the tower, is visible on the countertop, usually located next to the sink. If your municipality has changed some of its water codes, you may be able to remove the air gap on a dishwasher as it is no longer needed.
How high does dishwasher drain hose need to be?
20 inches
Hear this out loudPauseDishwasher hoses should have a high loop at least 20 inches above the finished floor to prevent wastewater from entering the appliance if the drain clogs. Code requires that the hose connect to the sink drain on the sink side of the trap, typically with a branch tailpiece.
Do new dishwashers need air vent?
Hear this out loudPauseDishwasher venting prevents dirty water from re-entering the dishwasher. In some areas, a high loop is the minimum requirement, but in many other jurisdictions, an air gap must be installed with all new dishwashers.
How does dishwasher drain?
Hear this out loudPauseThe dishwasher’s jets work on the same principle. The force of the water also makes the arms that hold the spray jets rotate, just like a lawn sprinkler. When the washing and rinsing is finished, the water drains down to the basin again, where the pump propels the water out of the dishwasher.
Can you shorten dishwasher drain hose?
Hear this out loudPauseIt’s a pumped drain, you can put a full circle loops in it if there is not a good way to just shorten the hose. As long the hose is not kinked it will work fine.
Is air gap required for garbage disposal?

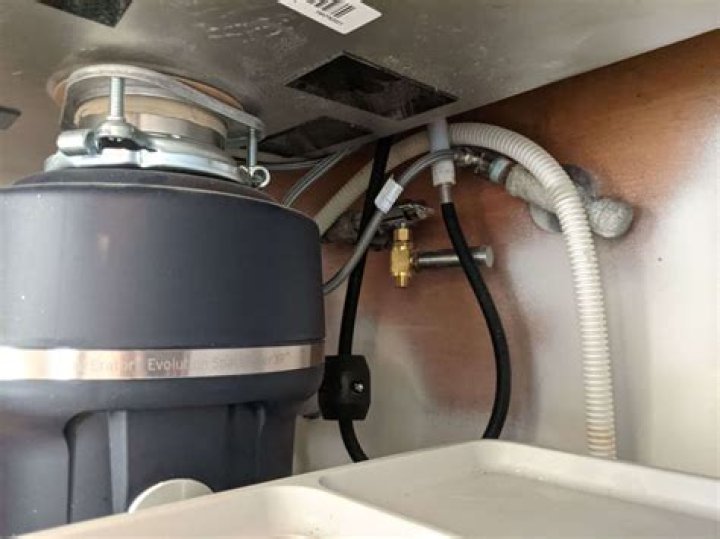

Hear this out loudPauseWhen there is a garbage disposal installed, the dishwasher drain line should run down from the air gap or high loop and connect to a side nipple on the disposal, where it connects with a hose clamp. Do not bypass the garbage disposal if it is present.
Can I extend my dishwasher drain hose?
Hear this out loudPauseThe short answer is yes. The longer the length of the hose, the greater the risk for kinking in the hose. When there are kinks or interruptions in the hose, it can prevent proper drainage and create a backlog of water in the hose. You want the hose to be long enough but with only a little bit of slack.
Does dishwasher drain need a trap?
Hear this out loudPauseYour dishwasher does need a trap in order to prevent sewer gases from wafting up into the dishwasher pump and into the dishwasher. You can use the same trap that your sink uses, though.
How to connect a dishwasher drain hose to a sink?
When connecting a dishwasher drain with an air gap, but where there is no garbage disposal, the drain hose is indirectly tied to the sink drain through the air gap Connect Hose to Air Gap First, connect the dishwasher drain hose onto the small side of the air gap, mounted on the countertop or sink deck.
How do you make an air gap in a dishwasher?
Using stainless steel hose clamps, secure the tube tightly to the air gap. Connect the air gap to the drain hose or garbage disposal. Measure and cut a length of 7/8“ tubing to connect the air gap to either your drain or your garbage disposal. Secure the tube to the air gap with a hose clamp.
Can a dishwasher drain be connected without a garbage disposal?
of 05. Air Gap to the Drain (No Garbage Disposal) When connecting a dishwasher drain with an air gap without a garbage disposal, the dishwasher air gap connection is indirectly tied to the sink drain. First, the dishwasher drain hose is connected onto the small side of the air gap, using a hose clamp.
Where do the drain lines go in a dishwasher?
Some dishwashers require separate drain lines from the top and bottom compartments of the machine, both of which can be run through one dual inlet air gap.
How does a dishwasher drain hose connect to an air gap?
The Air Gap Method. An air gap is a small metal or plastic fitting that is installed on the countertop or sink, with two hose fittings on the underside. The dishwasher drain hose connects to one fitting on the bottom of the air gap, while a secondary hose runs from a second air gap fitting to the house’s drain system.
How is the dishwasher drain connected to the sink?
When connecting a dishwasher drain with an air gap, but where there is no garbage disposal, the dishwasher air gap connection is indirectly tied to the sink drain. First, connect the dishwasher drain hose onto the small side of the air gap, using a hose clamp.
How to install a drain line on a dishwasher?
Loosen the screw on the hose clamp that holds the drain line to one of these locations. Slide the drain line off its connector. Set the hose clamp to the side. 4 Look beneath the front door for the screws holding the service panel to the bottom front of the dishwasher. Remove the screws to release the panel and set the service panel aside.
How big of a hose do I need for a dishwasher drain?
The larger side of the air gap is then hooked up to the Y-branch tailpiece on the sink drain with a 7/8-inch rubber hose. Y-branch tailpieces are available in two sizes, so make sure to get the size that fits 7/8-inch tubing running from the air gap. Connect both ends of the hose by using hose clamps.
