Do water softeners have drain lines?
Do water softeners have drain lines?

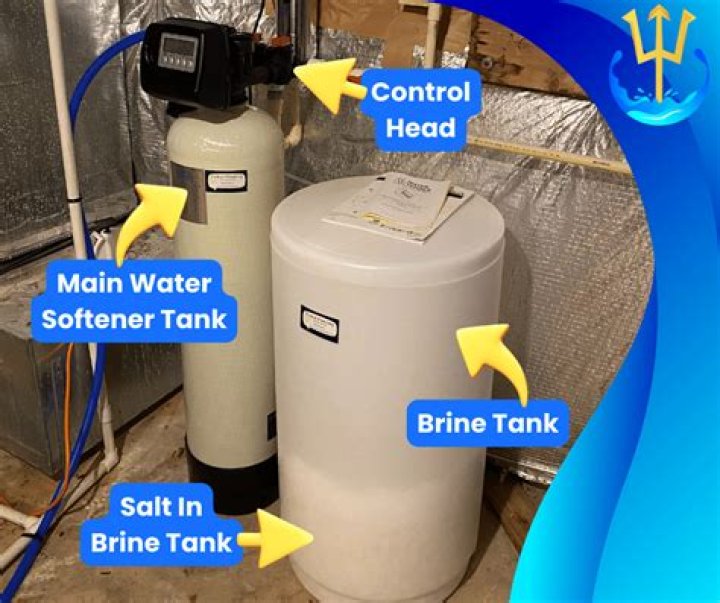

Hear this out loudPauseMost water softeners require two drain tubes. One of the drain tubes connects to the control valve and is used to void the backwash water during the regeneration cycle. The other drain tube connects to the brine tank and serves as an overflow drain.
How long can water softener drain line be?
Hear this out loudPauseWater softener drain line routing: Keep the water softener drain piping as short and low as possible: less than 30 feet in length and no more than 8 feet above the floor level. The drain line must be of adequate diameter to handle the water conditioner’s backwash flow rate.
Does a water softener drain during regeneration?
Hear this out loudPauseWhat happens during the regeneration process? During the regeneration process, the water softener floods the resin with brine water, thereby “cleaning” the hardness minerals off the resin and sending them down the drain.
Why does a water softener need a drain line?
Hear this out loudPauseWhy Does a Water Softener System Need a Drain Hose/Line? A drain hose or line is required to properly take care of the spent water that is being discharged. It allows for the water to go to a drain without issues arising and allows for less maintenance.
Can you drain a water softener into a yard?
Hear this out loudPauseWill Water Softener Backwash Kill My Grass? Yes eventually and without any precautions, watering your lawn with the backwash from your water softener will probably kill your grass. As water drains into the soil and is partly taken up by the grassroots, the salt within it is filtered out by the soil and remains there.
How often does a water softener regenerate?
every two to three days
Hear this out loudPauseIt is generally agreed upon that regular regenerations are the best, because they keep the resin bed active. This should be every two to three days, although highly efficient softeners may generate every day or even multiple times a day.
Why is my Culligan water softener full of water?
Hear this out loudPauseWater or air leakages will cause a malfunction of your water softening system and an overflow of water in the brine tank. Other causes of brine tank overflow can be due to obstructions. If your brine line float control gets clogged with salt, take it out, wash it, and check to make sure it’s working correctly.
Why does a water softener system need a drain line?
Why Does a Water Softener System Need a Drain Hose/Line? A drain hose or line is required to properly take care of the spent water that is being discharged. It allows for the water to go to a drain without issues arising and allows for less maintenance. Without a drain hose/line you will have problems with discharge and overflow.
What happens if you don’t have a drain hose?
Without a drain hose/line you will have problems with discharge and overflow. The drain hose is how the spent water (brine) from the water softener can be discharged without issues arising. If you were to only have a water line feeding hard water to the water softener, you would have either water overflow all over your floor or water line issues.
Where do you drain water softeners in a washing machine?
The locations to drain them will be to a floor drain, a washing machine, a utility sink, or a sump pit. Keep in mind if you drain it into a sump pit it can void warranties on your sump pump.
What are the installation instructions for a water softener?
Be sure to read and follow the installation instructions provided by your water conditioner manufacturer as those may differ.
How big should a water softener drain line be?
Water softener drain line routing: Keep the water softener drain piping as short and low as possible: less than 30 feet in length and no more than 8 feet above the floor level. The drain line must be of adequate diameter to handle the water conditioner’s backwash flow rate.
What’s the difference between a drain hose and a softener?
It allows for the water to go to a drain without issues arising and allows for less maintenance. Without a drain hose/line you will have problems with discharge and overflow. The drain hose is how the spent water (brine) from the water softener can be discharged without issues arising.
Can a water softener line cause a flood?
Once damaged, resin is very expensive to replace, and you end up with a huge water softener repair bill. If a drain line becomes severely restricted, it can actually blow off the softener during regeneration and cause a massive flood! On water softener service calls in Minnesota, we find a wide variety of drain line material being used.
Can a water softener be connected to a laundry sink?
Whenever there isn’t a way to connect to a laundry sink or into a floor drain you can use an Air Gap Fitting and drain over head to plumbing from above the install location. These Air Gap Fittings are plumbing code required whenever you hard plumb the drain line (waste line) of water treatment equipment to your household plumbing.
