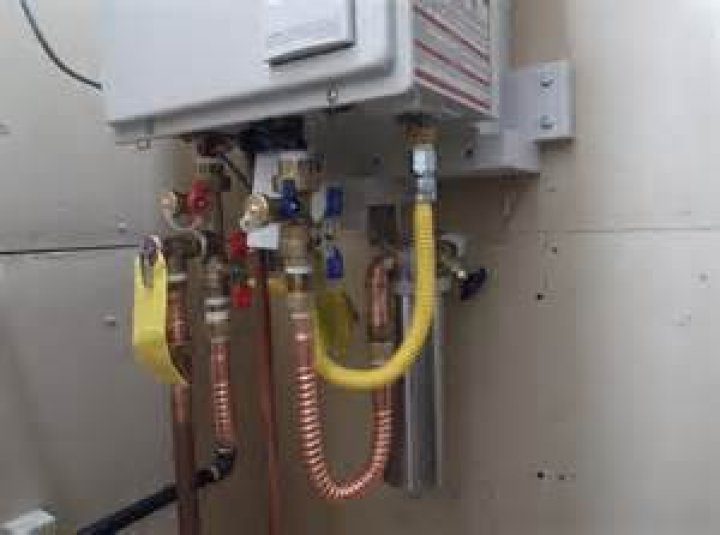

Do tankless water heaters have pressure relief valves?

Pressure-relief valves are an essential component of tankless water heaters. If there is ever an issue with your tankless water heater, the pressure relief valve is installed to serve as protection for the home and the homeowner.

How do you adjust the gas pressure on a Rinnai?

GAS PRESSURE SETTING AND ADJUSTMENT

Turn the appliance to the off position.
Remove test point screw 1/8 NPT tap with 3/16 Allen.
When unit completely stops operating, press the “SW1”
Select the correct gas type code to appear on the LED.
After selecting the appropriate gas setting above, press the.

Does a tankless water heater need a regulator?

You will need two regulators. You will need one regulator to take the tank pressure (up to 200 psi) to down to a household line pressure (2psi). You will also need a regulator to take the household pressure down to the 11″ WC needed by your hot water heater.

How to replace Pressure relief valve on Rinnai Water Heater?

I Replaced Pressure Relief Valve on Rinnai water heater (twice!!). New one does not hold ANY pressure I just finished replacing the pressure relief valve on my Rinnai hot water heater. Everything went well, I turned on the cold input and wham, water just started gushing out of the relief valve.

How to prepare for Rinnai rur98i installation and operation manual?

Prepare for installation General Instructions (continued)  The appliance must be isolated from the gas supply Parts included piping system by closing its individual manual  Tankless water heater with integrated pump shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or …

Is the Rinnai rur98 tankless water heater eco friendly?

Rinnai RUR98 tankless water heaters come with the powerful and eco-friendly gas burner that can operate with the power ranging from 15,200 to 199,000 BTU, so it can work as the point-of-use unit where the small amount of hot water is needed, or as the whole-house unit when there is high demand.

What’s the minimum water pressure for a Rinnai thermal expansion tank?

Minimum water pressure is 50 psi. Rinnai recommends 60-80 psi for maximum performance. □ Ensure thermal expansion tank is properly installed per local codes. Sequence of Operation DIP switches (SW #4, #7, & #8 in DIPSW 2) should be set correctly for recirculation mode.

Is there a warranty on a Rinnai tankless water heater?

Rinnai tankless hot water heaters are built to commercial-grade standards and each individual unit is tested for quality. So you may never need our industry-leading warranty and legendary support for the most important appliance in your home.

Why does my Rinnai Water Heater have code 10?

Remove burner and inspect copper fins in heat exchanger for a build up between fins. This will cause air flow restrictions which can lead to code 10’s. If build up is present, you will need an air compressor capable of delivering 120 psi of air to blow out the burner and heat exchanger fins.

How does the Rinnai Water recirculation system work?

Select models have the Rinnai recirculation technology and are Wi-Fi ready, allowing you to set hot water schedules or have it on demand, giving you hot water in seconds, not minutes, saving you time and reducing water waste. They can also be integrated with your smart home technology for greater control.
