Do power vent water heaters have pilot lights?
Do power vent water heaters have pilot lights?

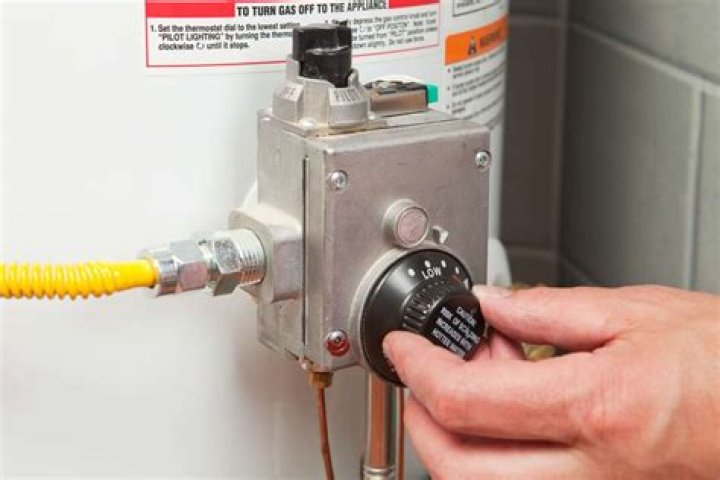

Direct vent water heaters A direct vented or atmospheric gas water heater vents its flue gas into a chimney or vent pipe that terminates above the roof. However, the water heater needs to be installed in a well-ventilated room that gets adequate combustion air otherwise the pilot light could go out!
What is the Intelli vent for hot water heater?
Note: The Intelli-Vent is the device that is in charge of the temperature, ignition, blower and ignitor control, also flame sensing and gas regulation. It also features the advanced diagnostics, and it incorporates 6 LED lights and two buttons for adjusting the temperature from warm to hot.
What is part number for Intelli vent control?
PART NO. 37-7109A 0951 The 37E73A-903/906 INTELLI-IGNITION™ control is a combination gas valve, ignition control, and thermostat for use on Power Vented water heaters. The microcomputer in the control supervises the ignition sequence and timings for the water heater, and provides diagnostic codes in case of system malfunction.
Is the Intelli-vent control water proof or water resistant?
Water Resistant While not being a “water proof” control the Intelli-Vent control does have a greater degree of resistance to water damage than previous controls. Wiring connections are on the bottom of the control and less susceptible to damage.
How to troubleshoot Intelli vent construction 6 LED indicator lights?
Page 3 INTELLI-VENT TROUBLESHOOTING GUIDE INTELLI-VENT™ CONSTRUCTION 6 LED indicator lights Temperature Probe/ECO • Temperature Settings • Error Codes / Diagnostics Supply Gas Connection Temperature adjust buttons Future side connect model is Temperature adjust buttons shown here.
How to turn off Intelli vent water heater?
1Plug in water heater and turn on power. All lights on the control will come on for about 1 – 5 seconds. All lights will then turn off. If the stored water is above 70°F (residential) and the control setting has not been increased from it’s factory setting, nothing more will happen.
What do you need to know about the Intelli vent?
INTELLI-VENT TROUBLESHOOTING GUIDE Technical Training Department Ashland City, Tennessee © 2005 1 of 24 INTELLI-VENT™ FEATURES The Intelli-Vent™ is a combination control incorporating all temperature control, ignition control, blower and ignitor control, flame sensing, and gas regulation into a single device. Advanced Diagnostics – Error Codes
Where can I get an O Smith Intelli-vent troubleshooting manual?
Page 28 Additional copies are available from the Ashland City Advertising Department Prepared by the A. O. Smith/State Water Heater Technical Training Department Ashland City, Tennessee…
What are the Erro codes on Intelli vent?
Advanced Diagnostics – Error Codes The Intelli-Vent™ features advanced diagnostics with 15 specific error codes including reversed polarityand inadequate groundingnotification. Diagnostic information is conveyed via 6 LED lights on the control. These erro r codes will help diagnose and repair the wate r heater quickly and accurately.
