Can you weld flux core without gas

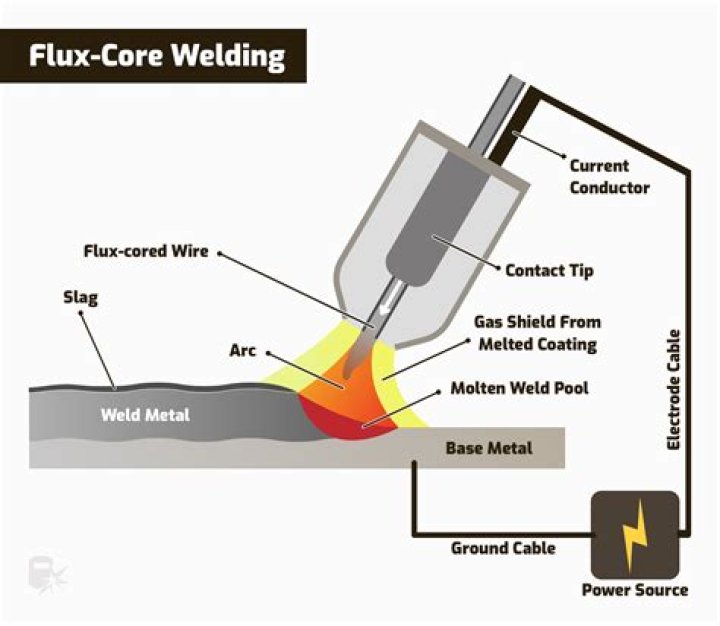

Self-shielding flux-cored wire does not require external shielding gas because the weld pool is protected by gas generated when flux from the wire is burned. As a result, self-shielding flux-cored wire is more portable because it does not require an external gas tank.

Can you use flux core without gas?

Self-shielding flux-cored wire does not require external shielding gas because the weld pool is protected by gas generated when flux from the wire is burned. As a result, self-shielding flux-cored wire is more portable because it does not require an external gas tank.

How can I weld without gas?

Fortunately, you can still MIG weld metals without using protective gases. This method is known as Flux Core Arc Welding (FCAW) or Flux Core for short. In this method, you use a special welding wire known as a “flux core welding wire”. Similar to MIG’s electrodes, these flux core wires are consumable.

Can you weld without shielding gas?

While it’s technically impossible to MIG weld without gas, it’s very possible to weld without lugging a gas cylinder and other equipment around. Self-shielding welding with flux core wire is a great option for many hobby users, and with the right welding supplies you can achieve great results!

Is gas welding better than flux core?

GMAW is not good for welding outside or in drafty conditions. This is because the shield gas has a tendency to blow away before it can do its job. Compared to FCAW the welds will be more visually appealing and will have no slag to chip off. GMAW also welds thin metals with less burn-through compared to FCAW.

Is flux core welding strong?

The deposit rate of filler material for flux-core welding is the highest of any other method. While a MIG welder can deposit up to 8 pounds of wire per hour, a flux-core welder can deliver up to 25 pounds per hour.

Do all MIG welders need gas?

Can any Mig be used for Gas AND Gasless Welding? No, a Mig Welder will be designed to either use Wire with Gas, Self Shielding (gasless) Wire, or both (Gas/No Gas). The difference lies in the Polarity of the Torch.

What is the thinnest metal you can Mig weld?

How thin can you weld with MIG welding? If you can control the amount of heat, you can even weld on virtually any sheet below 0.8 mm using MIG. However, we suggest that you use MIG for metals thicker than 0.6 mm. Ideally, you should use TIG for sheets 0.6mm or thinner.

What is self shielded flux cored wire?

Self-shielded, flux-cored wires, commonly referred to as Innershield® wires, are often described as “a stick electrode that is inside out”. … Operationally, most self-shielded wire types run on DC- polarity. They have a globular arc transfer, ranging from fine droplets to large droplets of metal.

Can you weld car panels with flux core?

Flux core welding is typically used when welding thicker metals. It is ideal for heavy-duty, industrial, or automotive applications since the finished bond is very secure. One of the main benefits of flux core welding is that it can be easily performed outside in a variety of conditions, quickly and effectively.

Article first time published on

Can you weld aluminum flux core?

But no success. The products are solid aluminum, or flux core steel wire. They won’t work on aluminum, or needs a shielding gas.

What are the disadvantages of flux core welding?

• A high level of noxious fumes which must be ventilated.
• Higher electrode wire cost compared to solid electrode wires.
• More costly equipment than many other welding processes.
• Less portable equipment than SMAW or GTAW.
• The slag covering the weld must be removed.

How thick can flux core weld?

Flux-Cored 035″ Innershield NR-211-MP will generally allow you to weld steel up to ¼”thick. Note that this is more than double the thickness maximum of 12 gauge with MIG on 115 volts.

Can you flux core weld indoors?

Flux- Cored Welding is an alternative to “stick welding.” Flux-cored is used often in automatic, fast-speed applications. … The gas keeps the metal being welded from being affected by natural elements such as oxygen. This method allows for more continuous operation. Note: MIG welding only can be done indoors.)

Can you weld with flux core and gas?

You can use gas with regular flux core, but it is a total waste of gas. The flux in dual shield wire doesn’t shield the weld, it causes better deposition rates and weld characteristics in the weld. Gas is needed with dual shield to shield the weld, but not with flux cored.

What's better gas or gasless MIG welder?

The answer? Gasless. Gasless (flux-cored) welding creates a lot more fumes than when using a shielding gas, thanks to all the things in the flux that work to protect the weld. That’s why gasless welding is much better for outdoor use.

Is flux core welding the same as MIG welding?

Flux cored arc welding is a process similar to MIG welding. Both processes using continues wire feeds, and similar equipment. The power supply for a FCAW, and a MIG welder, are the same machine. They are both considered semi automatic processes, and have a very high production rate.

Can I use TIG without gas?

Simply put, NO, you can’t Tig weld without Gas! Gas is required to protect both the Tungsten Electrode and the weld pool from Oxygen. Most Tig Welder torches are also cooled by the gas, so not using gas would risk burning out the Torch. … You might also find my article Can you use the same Gas for Mig and Tig useful.

Why is flux core thicker?

The flux coating on gas shielded flux-cored wires solidifies faster than the molten weld material. Consequently, a sort of shelf is created which holds the molten pool when welding overhead or vertically up. Gas-shielded flux wires work well when welding thicker metals.

What can you weld with a flux core welder?

Flux-cored arc welding is widely used for welding ferrous metals and is particularly good for applications in which high deposition rates are needed. At high welding currents, the arc is smooth and more manageable when compared in using large-diameter gas metal arc welding electrodes with carbon dioxide.

Can you weld copper with flux core?

How to weld copper alloys using shield metal arc welding or flux-cored arc welding. When welding copper alloys, you have to choose the right welding process. This can be a challenging task.

What is the difference between self shielded wire and flux core wire?

The difference with self-shielding wires is that they do not require a shielding gas when the arc is active, which eliminates the need for a gas cylinder. … Unlike electrodes flux cored wires don’t need to be changed over and over again which as a result reduces downtime for changeover.

What is dual shield flux core?

Dual shield welding, also known as FCAW (Flux Core Arc Welding), is a procedure where you use an arc between the weld pool formed from the metal shields and the consumable anode. … The process is known as double shielding as the two layers of shielding are offered to the weld in the welding procedure.

Why do I keep blowing holes when welding?

This means that once the weld pool has developed the wire is then dipping into a liquid. If this then becomes too runny, the dipping of the wire creates a popping effect much like a needle popping a balloon, and this can pop it causing a hole.

Can you stick weld thin metal?

You can stick weld thin metal, for instance, less than 1/8″ (3.2mm) with satisfactory results if you use the proper welding equipment, settings, and technique. … Stick welding gives good results from 1/8″ thick metal and up, but it is not the ideal welding process to weld thinner workpieces.

How do you weld thin metal without warping?

Place welds near the neutral axis, or the center of the part. Reduce warpage by providing less leverage for the shrinkage forces to pull the plates out of alignment. Balance welds around the neutral axis. Welding on both sides of the plate offsets one shrinkage force with another, to minimize warpage (Figure 4).

Can you weld 18 gauge?

When the material is 18-gauge and thicker, you may be able to use a . 030-inch wire. To weld mild steel, choose an American Welding Society classification wire such as ER70S-6, which has a weld puddle that wets out nicely. Always use a higher argon-based shielding gas, such as 75% argon/25% carbon dioxide.

What welder is best for auto body?

MIG Welding With Shielding Gas The shielding gas is fed through the gun, and basically “suffocates” the weld area from oxygen. With shielding gas, you to get clean, good looking welds on thin sheet metal. Mig welding is the best choice for welding automotive body panels.

Can I weld aluminum without gas?

Yes. Arc welding of aluminum can be done in a vacuum chamber without shielding gas because the purpose of the gas is to displace atmospheric gases which contaminate the weld and do not promote a stable Arc.

What happens if you weld aluminum without gas?

Can you weld aluminum without gas? Yes, aluminum can be welded without gas in a vacuum chamber. However, welding aluminum gasless will expose the metal to the oxygen air circulating around your workspace and will make for a less secure weld.

Can you weld stainless steel with flux core?

Flux-cored Arc Welding is widely used in welding Stainless Steels . There is minimal problems with this process and it is actually recommended when you need to weld thick plates in a short period of time. The weld deposit rates are significantly higher than other welding processes.
