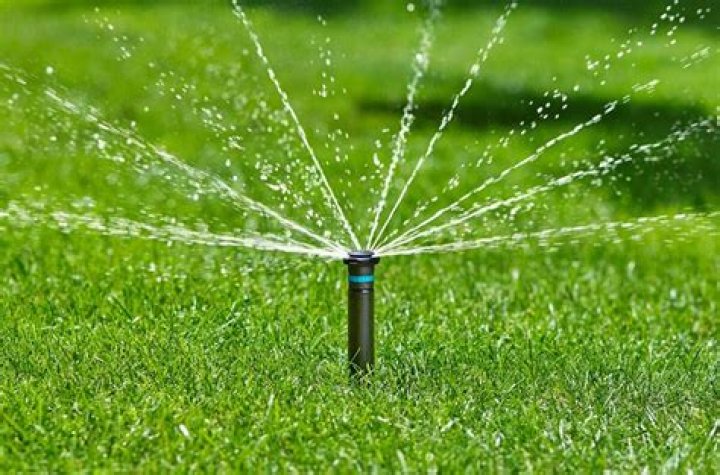

Can you connect multiple sprinklers?
Can you connect multiple sprinklers?
If all your sprinklers flow rates are 1GPM you can add 3 of them on the same line to run simultaneously. If you need more sprinklers you can set them up on a separate hose and run them at a different time, essentially creating sprinkler zones.
Is there a sprinkler valve for every zone?
An irrigation system is typically divided into several zones, each of which feeds sprinkler heads in a different area of the lawn or garden, and each zone is controlled by a valve that receives signals from a centrally located controller. Often the valves are located inside one or more in-ground valve boxes.
How do you add valves to a sprinkler system?
Unscrew the wire nut, wrap the new wire around the others and screw the wire nut back on. Connect the other wire to any unused colored wire in the wiring harness that goes to the control box with a waterproof wire nut. Repeat the procedure to add more valves, if needed.
How does a sprinkler valve stay open all the time?
You can see that the valve has a small, yellow handle that turns vertical to let water through or turns horizontal to stop the water. Once the sprinkler system is finished, this valve will stay open all the time. The valve is threaded on both ends, so it just screws on to the pipes with thread sealing tape.
How to install a sprinkler system in your backyard?
1 Our Previous Sprinkler System. In our last home, we put in a sprinkler system, but we had some help. 2 Connect to the Water Supply. Our backyard already had a hose bib (faucet for a hose), so that was our water supply. 3 Add a Shut off Valve. 4 Add a Backflow Device. 5 The Sprinkler Valves. 6 Test Your Work. …
How many solenoid valves do you need for a sprinkler system?
The number of solenoid valves you use depends on the size of your garden & the flow output of your water supply. The number of litres per minute that are available will determine the number of sprinklers or drippers you can operate at any one time.
How do you install a sprinkler control valve?
Installing & Wiring Sprinkler Valves. Install a shutoff valve just prior to the control valves. The valves are simply put together with threaded parts; you do not have to glue them. From the valves, run Schedule 80 PVC pipe, starting with a threaded piece down into the trench for the pipe runs to the sprinkler head.
Do you have to glue sprinkler valves together?
Installing & Wiring Sprinkler Valves. The valves are simply put together with threaded parts; you do not have to glue them. From the valves, run Schedule 80 PVC pipe, starting with a threaded piece down into the trench for the pipe runs to the sprinkler head. If you don’t want valves sticking up out of the ground,…
What kind of wire do you need for a sprinkler system?
Wiring Sprinkler Control Valves. Use low-voltage insulated cable approved for burial (usually AWG-14 or -18) to connect the timer to the control valves. You will need multi-strand wire with enough wires for each valve plus one more to connect the valves to the timer. (So, if you have three valves, you’ll need four-strand wire.)
How to choose the right sprinkler system for your home?
Take your water measurements and maps with you when shopping for parts. You must select your system components to match your water supply and water pressure. A mismatch will either overstress the system or provide insufficient irrigation. Valves open and close pipes to allow watering of each zone.
