Can Moen 1200 Replace 1225?
Can Moen 1200 Replace 1225?
While the Moen 1200 and the Moen 1225 cartridges are interchangeable, the Moen 1222 Posi Temp cartridge is absolutely not interchangeable with the Moen 1225 or 1200. That’s why it’s so vital that you determine which Moen shower valve you have before buying any replacement parts.
How to replace Moen 1200 and 1225 cartridge?
Step by step, from beginning to end, I figure out how to disassemble the Moen bathroom faucet and replace/install a new Moen 1200 cartridge. Moen also allows the 1225 or 1225b cartridge in this sink, but the installation is exactly the same.
How to loosen a moentrol 1225 shower cartridge?
Using the plastic twisting tool (see image A below) provided in the 1225 cartridge kit (#6), rotate the cartridge (#6) 1/4 of a turn (90 degrees) in either direction. This will help loosen the cartridge (#6). Remove the twisting tool (A) from the top of the cartridge (#5).
How do you reinstall a Moen faucet cartridge?
Push the cartridge straight into the valve, making sure that the ears of the cartridge are lined up precisely with the clear tabs filling the front and back center openings of the valve body, or 12:00 and 6:00. To reinstall the cartridge into your faucet assembly, reverse the steps that you followed to remove the old cartridge.
How do you remove a cartridge from a Philips faucet?
If you are replacing a cartridge in faucet type F continue to step 7a. To remove the cartridge from your faucet assembly, first use a flat-headed screwdriver to carefully pry the cover from the handle. Using a Philips screwdriver unscrew the handle screw. Pull the handle off from the faucet and pull the limit stop off.

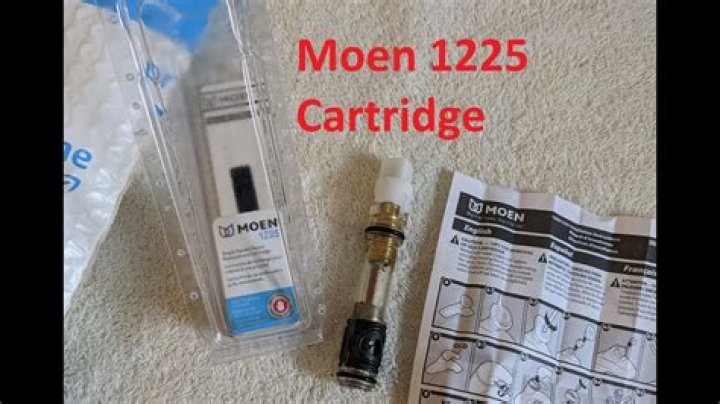

Is the Moen 1225 replacement cartridge the same as the 1225B?
The Moen Single Handle Replacement Cartridge 1225 is the same as 1225B only packaged differently. If you have additional questions, please feel free to call us at 800-289-6636.
Using the plastic twisting tool (see image A below) provided in the 1225 cartridge kit (#6), rotate the cartridge (#6) 1/4 of a turn (90 degrees) in either direction. This will help loosen the cartridge (#6). Remove the twisting tool (A) from the top of the cartridge (#5).
What kind of cartridge do I need to replace Moen kitchen sink?
The MOEN replacement cartridge installs quickly and easily, with instructions included. The MOEN Single-Handle Replacement Cartridge works with many MOEN single-handle bathroom sink and kitchen faucets. The cartridge is made with cast metal and plastic for strength.
How to reverse hot and cold for a 1225?
Under the sink, if the hot water supply line is on the left and the cold water supply line is on the right, the notch on the cartridge needs to face the front of the faucet. Under the sink, if the hot water supply line is on the right and the cold water supply line is on the left, the notch on the cartridge needs to face the back of the faucet.
