Can I run gas pipe in concrete floor?

Can I run gas pipe in concrete floor?

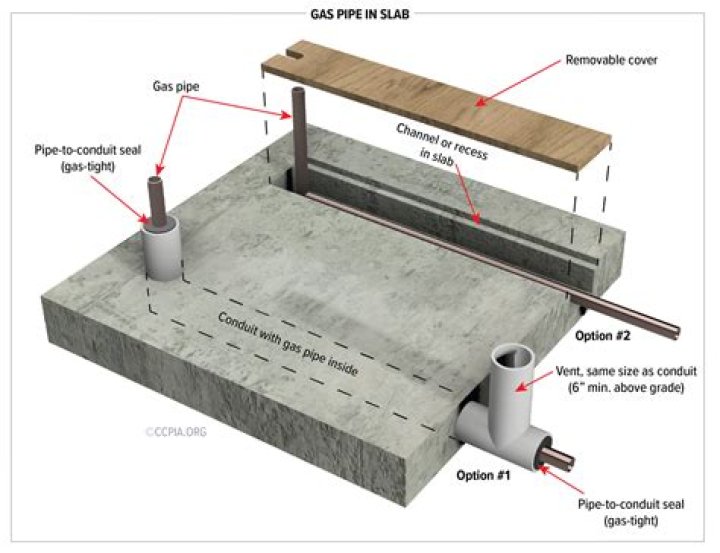

Gas pipes can be run underneath floors, however you need to make sure it is adquaetly protected with some sort of screed at around 25mm and the whole pipe should be encased to provide a protective coating. The chase you cut out should be the diameter of the pipe plus the 25mm screed.

Can flexible gas line go through floor?

Three- or six-foot long and accessible: The flexible connectors can’t go through walls, floors or ceilings, nor can they be concealed. The flexible connector length usually is limited to 3 feet except for gas ranges and clothes dryers.

What is a gas line stub out?

Connecting To The Natural Gas Stub-Out. Basically, a stub out is the part of a pipe that extends out from the wall that allows you to connect a device to it. Safely turn off your gas to the home. Turn off the shut-off valve at the location. Attach a shut-off valve if the stub out doesn’t already have one attached.

Where do you put the outlet on a gas stove?

The gas range should have an area towards the bottom of the appliance. Put the receptacle low.

What gas pipe can be buried?

Steel, copper, brass: The most common gas piping is black steel. Galvanized steel, copper, brass or CSST (Corrugated Stainless Steel Tubing) also can be used in some areas, but some utilities specifically prohibit the use of copper. In other areas, the use of copper is widespread.

Is it easy to extend a gas line?

It’s possible to add a gas line as a do-it-yourself project for $50-$150 worth of materials, but in some states certain types of flexible pipe or other special materials can only be bought by someone officially certified to install them.

What kind of pipe do you use for gas lines?

Who is responsible for piping upstream of a gas meter?

The piping downstream of the gas meter usually is the responsibility of the homeowner. The piping upstream of the gas meter and the meter itself usually are the responsibility of the gas company.

What’s the name of the gas line inside the House?

The piping inside the house is called the gas supply line or building line. Branch lines run to individual appliances. The branch line terminates in a drop line, which is a vertical pipe dropping down to the appliance from an overhead branch line.

How long does a gas line have to be in a room?

This valve has to be in the same room as the appliance. Three- or six-foot long and accessible: The flexible connectors can’t go through walls, floors or ceilings, nor can they be concealed. The flexible connector length usually is limited to 3 feet except for gas ranges and clothes dryers. For these appliances, 6 feet generally is allowed.

What are risers used for in gas pipelines?

Risers are used to transition from below ground polyethylene pipe to above ground metallic pipe. These risers are used for both natural gas and propane gas distribution. gauge. Transition fittings are used to transition from steel pipe to polyethylene pipe below grade.

Is there a home flex underground gas meter riser?

The HOME-FLEX underground in. Meter Riser allows to safely and easily transition from polyethylene pipe to a gas meter. MIP on the metal side for direct connection to the meter, no adapters needed. Durable metal construction ensures no damage will occur to pipe above the surface. You will need Adobe® Acrobat® Reader to view PDF documents.

Which is the best underground gas pipe for home flex?

These gas pipe and fittings are approved for underground application. The HOME-FLEX Underground Yellow Poly Gas Pipe is the easiest and safest way to install underground gas. It is easy to use and cuts with standard hand tools.

Can a riser be used inside a building?

Hi, Steve – The subject riser is part of a HomeFlex Underground system and, as such, should only be used outside. Risers will come out of the ground outside the building and from there you may transition to CSST (or black iron) into the building.
