Can drain pipes run horizontal?
Can drain pipes run horizontal?
Drain piping can be horizontal (1/4” per foot), vertical, or 450- vent piping shall be free of sags and be graded and connected to drip back by gravity to drain pipe it serves.
What are the changes in direction of sanitary drainage lines?
A change in direction of drainage flows from horizontal to vertical creates an increase of velocity, which also increases the carrying capacity of the pipe at the point of transition. Therefore, short pattern fittings such as sanitary tees and quarter bends are permitted.
What is the maximum load on a 2 horizontal drain pipe?
710.1 Maximum Fixture Unit Load
| DIAMETER OF PIPE (inches) | MAXIMUM NUMBER OF DRAINAGE FIXTURE UNITS (dfu) | |
|---|---|---|
| 2 | 6 | 24 |
| 21/2 | 12 | 42 |
| 3 | 20 | 72 |
| 4 | 160 | 500 |
How long can a horizontal toilet waste pipe be?
5 Answers from MyBuilder Bathroom Fitters so long there is adaquate fall the max run is 6m for a waste pipe.
How many degrees is considered horizontal?
Anything parallel to the horizon is called horizontal. As vertical is the opposite of horizontal, anything that makes a 90-degree angle (right angle) with the horizontal or the horizon is called vertical. So, the horizontal line is one that runs across from left to right.
How many toilets can you have on a 3 inch horizontal drain?
how many toilets can be on a 3 inch drain? 1 Answer. Referring to the International Plumbing Code, a bathroom group requires 5 Drainage Fixture Units. As a horizontal branch 3″ is good for 20 DFU’s or 4 bathroom groups.
How can I run a sink drain horizontally through a wall?
Once we reach the wall, cut holes, attach a 45 elbow to each line, then feed the pipes through and 90 elbow them down the wall on the opposite side. Or, if you prefer, you can 90 elbow them to the back, another 90 elbow to the left, and then 90 elbow down (this will require more complex running on your part).
What are horizontal drains and how are they used?
One way of reducing excess pore-water pressure and high seepage forces created by perched water tables or of lowering the normal water table is through the use of horizontal drains. Horizontal drains are holes drilled into an embankment or cut slope and cased with a perforated-metal or slotted-plastic liner.
Where does the drain line and the vent line go?
If the toilet drain does not connect directly to a vent, you must find another way to vent it. If the drain line runs away from the wall where you want the vent, use a reducing Y and a 45-degree street elbow to point the vent line toward the wall. The horizontal vent pipe runs right next to the closet bend.

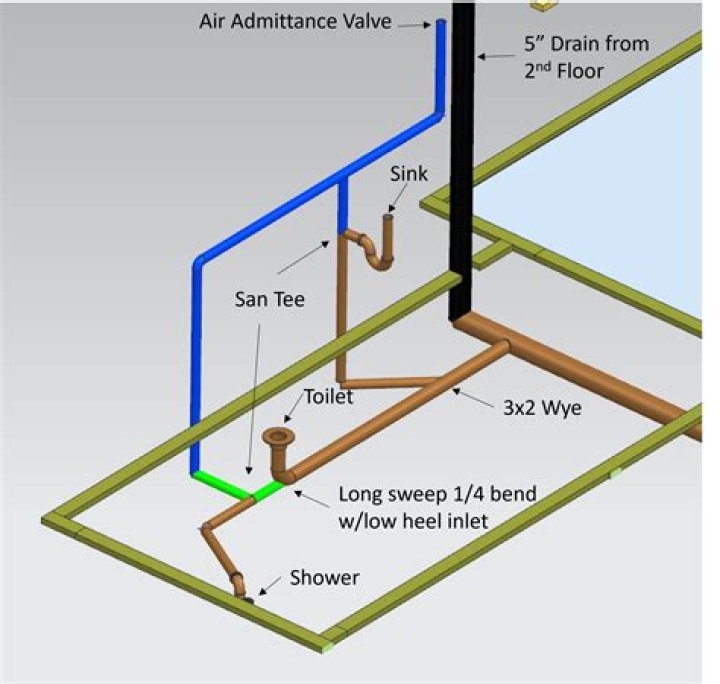

How to Run Drain and vent lines for your DIY bathroom?
You may need another elbow (of any degree) to position the vertical vent where you want it. If the vent wall is opposite the drain line, use a reducing Y and a street elbow. The fittings can be pointed straight at the wall or at an angle, as needed. Start with a length of 3-inch pipe long enough to reach the basement or crawlspace.
How are horizontal and vertical drainage lines connected?
3 Horizontal drainage lines connecting with other horizontal drainage lines shall enter through forty-five (45) degree wye branches, combination wye and one-eight (1/8) bend branches, or other approved fittings of equivalent sweep. UPC 706.4 Vertical drainage lines connection with horizontal drainage lines shall enter through
Once we reach the wall, cut holes, attach a 45 elbow to each line, then feed the pipes through and 90 elbow them down the wall on the opposite side. Or, if you prefer, you can 90 elbow them to the back, another 90 elbow to the left, and then 90 elbow down (this will require more complex running on your part).
If the toilet drain does not connect directly to a vent, you must find another way to vent it. If the drain line runs away from the wall where you want the vent, use a reducing Y and a 45-degree street elbow to point the vent line toward the wall. The horizontal vent pipe runs right next to the closet bend.
What are the benefits of a horizontal drain system?
Horizontal drain systems can be effective at lowering the water table and relieving groundwater pressures in a wide range of soil types, including relatively low permeability clays.
