Can an expansion tank be installed with PEX?
Can an expansion tank be installed with PEX?
Cut a piece of PEX to run between the expansion tank and the tee-fitting that you inserted in the hot water tank cold water supply line. If you have other fittings between the two, you will need to cut pieces of PEX to connect those as well.
Can you heat PEX to expand?
Since PEX will expand and contract 1-2.5″ per 100ft of length with every 10°F changes in water temperature, it should not be pulled tight during the installation. Expansion style fittings can be used only with PEX-A tubing and are not compatible with other PEX tubing types.
Can I use expansion fittings on sharkbite PEX?
No!!. Sharkbite is more of the DIY homeowner system. Professional use these tools and proper size PEX pipe called PEX-A and expansion PEX Collars. The expansion tool is for Wirsbo PEX.

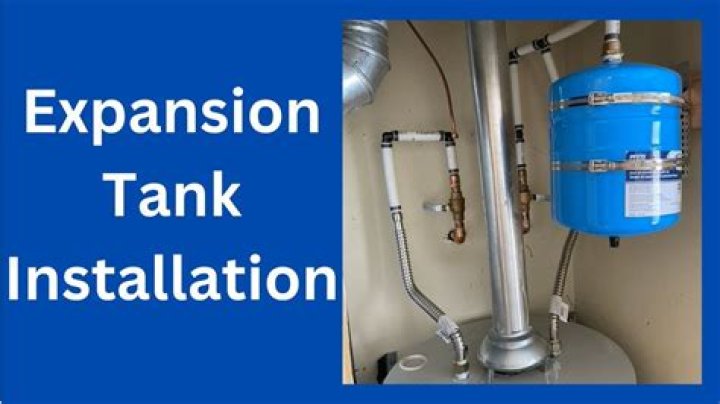

Where should a water heater expansion tank be installed?
An expansion tank is generally installed directly above the water heater by means of a tee-fitting installed in the cold water delivery pipe. The expansion tank is usually installed horizontally, though it is acceptable to install it vertically if it is necessary because of space limitations.
Can you use a heat gun on PEX B?
The PEX tube can withstand a maximum heat temperature of 200 degrees Fahrenheit. Most PEX manufacturers recommend you work with pipe at temperatures above freezing. You can heat those cold pipes and fittings with a heat gun or hair dryer, leave them in a warm vehicle for a while or keep fittings in your pocket.
How many PSI is PEX good for?
around 800 psi
PEX-a pipe can withstand a burst pressure of around 800 psi (almost two times the requirement for ASTM F876, the standard specification for PEX tubing). So neither the pipe nor the fittings are weak points, making for an extremely high-performing system in domestic water and hydronic piping applications.
Can you connect PEX A to PEX B?
There are two parts to this transition: the PEX-A MIP adapter and the PEX-B FIP adapter. These parts will thread together and allow you to join PEX-A to PEX-B. The PEX-A side will require an expansion ring while the PEX-B side requires the crimp ring.
Can I use SharkBite on PEX A?
SharkBite brass push-to-connect fittings are compatible with PEX, Copper, CPVC, PE-RT and HDPE pipe. SharkBite fittings come with a PEX stiffener pre-loaded into the fitting for PEX, PE-RT and HDPE. The PEX stiffener does not need to be removed for Copper or CPVC applications.
What should I do before adding water to my expansion tank?
1. Pressurizing the air side of the tank to equal the static pressure of the water at the expansion tank location and before adding water to the system. This prevents cold water from partially compressing the air in the tank. The diaphragm only begins to compress when the water temperature rises. 2.
How does an expansion tank work in a plumbing system?
Both products absorb the excess pressure in the plumbing system created by thermal expansion. As plumbers know, the expansion tank equalizes pressure throughout the plumbing system by providing a space for hot water to flow into.
What’s the best way to make a PEX expansion?
Be sure to lightly grease the head before operating the tool to ensure smooth expansion. First, take a ProPEX ring and slide it onto your PEX tubing as far down as you can- there is a built-in stop so you know when it’s in place. Then, using the expander head that corresponds with the size of the tubing, insert the head into the tubing.
How to calculate static pressure in an expansion tank?
Calculate the static pressure at the tank inlet using formula 1. For example: if the top of the piping circuit was 25 feet above the expansion tank connection and assuming the system is filled with water, the correct air side pressure in the tank would be:
1. Pressurizing the air side of the tank to equal the static pressure of the water at the expansion tank location and before adding water to the system. This prevents cold water from partially compressing the air in the tank. The diaphragm only begins to compress when the water temperature rises. 2.
Both products absorb the excess pressure in the plumbing system created by thermal expansion. As plumbers know, the expansion tank equalizes pressure throughout the plumbing system by providing a space for hot water to flow into.
Calculate the static pressure at the tank inlet using formula 1. For example: if the top of the piping circuit was 25 feet above the expansion tank connection and assuming the system is filled with water, the correct air side pressure in the tank would be:
What happens if you don’t have an expansion tank?
As plumbers know, the expansion tank equalizes pressure throughout the plumbing system by providing a space for hot water to flow into. Without an expansion tank, pressure would be distributed to the entire plumbing system, straining it and decreasing its lifespan.
