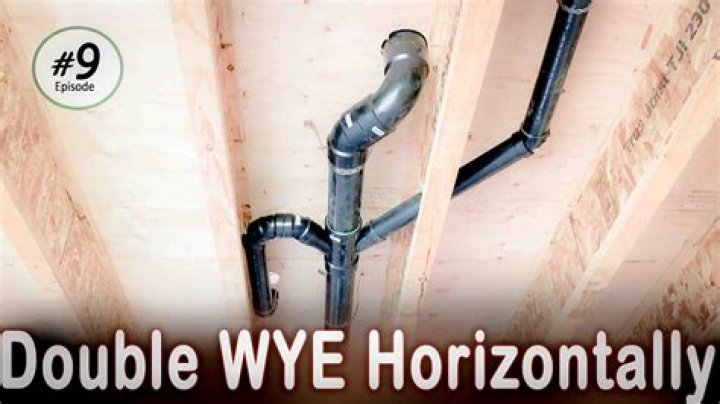

Can a double wye be installed horizontally?

Can a double wye be installed horizontally?

The double fixture fitting can’t be used on the horizontal. On the vertical, the new toilets tend to skip across that fitting, so while it had been a good fitting for the old toilets that took forever to clear a bowl, the new toilets with 3″ flush valves don’t work well.

What purpose does a double wye fitting serve?

A double wye creates a double S trap. A double fixture fitting is made so that air in the trap arm meets the stack before the drain drops down so that a siphon cannot be created. If the trap siphons it breaks the trap seal and there is nothing between your nose and whatever gas is in the sewer.

Can a plumbing Wye lay on its side?

A wye can lay on its side as long as it provides the proper grade or slope – 97 UPC 708, 97 IPC table 704.1.

Can you use a wye vertically?

Connecting a trap to a vertical drain with a wye fitting and a 45-degree elbow seems like a good idea. But it’s not. As water drains down the steep slope at the wye, it can create a siphon effect such that water will be sucked out of the trap.

Can I use a wye horizontally?

Q 2: Can I use a Wye Horizontally? Ans: Wye is only used for going from horizontal to the vertical plane. If you use them horizontally, they will be exposed to clogging.

Can you stack 2 sanitary tees?

No fitting having more than one (1) inlet at the same level shall be used unless such fitting is constructed so that the discharge from one (1) inlet cannot readily enter any other inlet. Double sanitary tees may be used when the barrel of the fitting is at least two (2) pipe sizes larger than the largest inlet.

Can you use a wye to vent?

The wye can be used on the horizontal, and is now required in case someone later uses that as a drain, (wet vent).

How does a double Wye pipe fitting work?

They also have a reusable gasket to guard against leaks. Connect the tube ends to tubing with a push, and an internal gripping ring and O-ring hold the tubing tight. To disconnect them, push the release ring and pull the tubing out of the fitting. These fittings are sometimes known as instant fittings.

Can you use a wye elbow on a vertical drain?

You can’t use it to connect two horizontal pipes or a vertical pipe to a horizontal drain. Different situations call for a tee, wye or a long or short sweep elbow. Plus, you can’t use 90-degree vent elbow to change direction in a drain line (unless you really like cleaning out clogs).

When to use sanitary tees with WYES and WYES?

A sanitary combo is a combination Wye & 1/8 bend already made in one fitting. The reason to form a long radius bend to insure the waste is directed in the downstream direction as it enters the horizontal run. A sanitary tee should be used when connecting a horizontal run, such as a waste arm to a vent stack or vertical riser.

How many outlets are in a double Wye faucet?

For technical drawings and 3-D models, click on a part number. Convert one faucet into two, four, or five convenient outlets. Each outlet has individually operated shutoff valves. Plastic valves are lighter than brass or zinc valves, and are durable enough to hold up to impacts and abrasion.
