Can a bathroom vent run horizontal?
Can a bathroom vent run horizontal?
To answer your specific question, yes, vent pipes can have horizontal runs, as long as there is no possibility of them becoming plugged with water. In other words, any water that gets into the vent pipe opening must be able to run freely all the way to the sewer, without creating a “trap”.
Does main vent stack have to be straight?
Tips for Installing Vent Pipes Vent pipes must be installed so they stay dry. This means that they should emerge from the top of the drainpipe, either straight vertically or at no less than a 45-degree angle from horizontal, so that water cannot back up into them.
Can you jog a vent pipe?
A jog in the line isn’t a problem. In one vent I have 5 90 degree and 1 45 degree turns before it mates up to a 3″ adapter to go through the roof.
Can a bathroom vent pipe have an elbow?
Note: You may have vent piping, but you still cannot use the tight 90-degree elbow — sometimes called a “vent elbow” — if the joint is below the water level, which is usually at the level of the sink. 3. The fitting called a “Sanitary Tee” looks like it could do the job, but it doesn’t.
What is the difference between a wet vent and a dry vent?
There are two basic ways to supply air to a drain line: through a dry vent or through a wet vent (if codes allow). A dry vent supplies only air to the drain line, whereas a wet vent functions as both a drain line and a vent.
Where are the vent pipes in the plumbing system?
The roof vent pipes are the point where the replacement air enters your plumbing system as a fixture drains water. Need to fix your Vent Pipe or install a water heater?
Where to put drain and vent lines in a bathroom?
Drain and vent lines must be positioned precisely, so you should install them before the supply pipes. It may be possible to simplify supply runs by moving a vent pipe over a few inches.

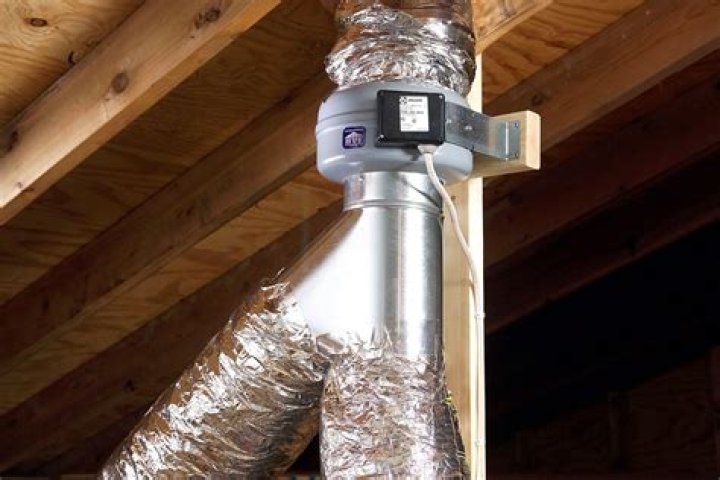

Is the bathroom vent run to the outside?
The bathroom fan vent was run to the outside of the house but was removed as the addition surrounded vent. The contract nicely wrapped the exhaust hose around the fan and installed the roofing with out re plumbing it. All the floor joists have some kind of wiring or vents running through them.
Can a bathroom exhaust fan be vented into a drain?
First is that you have a serious risk of venting sewer gasses into your home. This is why drain vents open above the roof line or use one-way air admittance valves. This is likely to be unpleasant and possibly unhealthy. Second is that a drain vent is typically too small and too moist to properly vent a bathroom fan.
The bathroom fan vent was run to the outside of the house but was removed as the addition surrounded vent. The contract nicely wrapped the exhaust hose around the fan and installed the roofing with out re plumbing it. All the floor joists have some kind of wiring or vents running through them.
First is that you have a serious risk of venting sewer gasses into your home. This is why drain vents open above the roof line or use one-way air admittance valves. This is likely to be unpleasant and possibly unhealthy. Second is that a drain vent is typically too small and too moist to properly vent a bathroom fan.
What kind of pipe do I need to install a bathroom vent?
Using a 1 1/2″ pipe, tie the bathroom sink into the 2″ vent pipe that was installed in the attic earlier. To attach the toilet to the system, you can simply tie into the same 1 1/2″ vent piping that comes down and supplies the second bathroom sink, using a tee and 1 1/2″ pipes.
How does a vent work in a plumbing system?
However, without the vent pipes supplying the system with air, your fixtures would experience a slow drain. Vent pipes run from the fixtures up to the attic where they connect to the roof vent pipe, which supplies the plumbing system with outside air. However, to function properly, they need to be installed properly.
