Are TV mounting holes centered

The VESA standard defines dimensions of the four-hole attachment interface on the back of displays and the screws used to fit those holes. It also dictates the placement of the hole pattern on the display. For attachment to VESA mounts, ideally the hole pattern should be centered on a display’s back .

Are TV mounts always centered?

The VESA standard defines dimensions of the four-hole attachment interface on the back of displays and the screws used to fit those holes. It also dictates the placement of the hole pattern on the display. For attachment to VESA mounts, ideally the hole pattern should be centered on a display’s back .

How do you measure TV mounting holes?

1. Measure the horizontal distance between the centers of the left and right holes. This will give you the first measurement.
2. Measure the vertical distance between the centers of the top and bottom holes. …
3. If you’re measuring in inches, convert to millimeters (1 inch = 25.4 mm)

Are TV VESA holes centered?

Usually they’re centered. Regardless, you usually have some wiggle room because you can slide the TV left or right on the rails. What’s a bit more challenging is the height. The mounting holes can vary in their vertical position a bit, which in turn, affects height.

Are TV mount holes universal?

There are two types of mounting hole patterns: VESA and Universal (Non-VESA). VESA standards state that the mounting holes must be in the exact same place on the back of a screen. … Common VESA screen standards are 75 x 75 mm, 100 x 100 mm, 200 x 100 mm and 200 x 200 mm, etc.

Does a TV have to be centered on a wall?

Generally speaking, you want the center of the TV to be about eye level, or even slightly lower. This is true whether you’re mounting the TV or putting it on a stand.

How do you center a TV if the studs aren't centered?

Using your stud finder, mark in pencil the placement of your studs. If a stud does not fall dead center to where you want to hang your television, you will need to mount a piece of scrap plywood on two studs in order to create a solid surface for your hardware mount.

How do I know if a wall mount is compatible with my TV?

To find TV mounts with the same VESA pattern, you can measure the distance between the mounting holes on the back of your TV. The SANUS MountFinder tool can be used to determine what TV wall mounts will fit a TV.

Are all monitors VESA compatible?

Is Your Computer Monitor VESA Compliant? Most modern flat-panel monitors and TVs are designed with VESA compliance in mind. To determine if your computer monitor complies with VESA standards, simply check the back. If it does comply, you should see the standard four-hole screw pattern in the back of your monitor.

Can a 65 inch TV be mounted on the wall?

Is it safe to mount your 65 inch, 75 inch or larger TV on the wall? The answer to this is yes, you can mount your XL TV on the wall. Safety is paramount, of course. That’s why it is always important to check whether the TV mount used is TÜV certified.

Article first time published on

What is the proper height to hang a TV?

To calculate how high your TV should be from the floor, simply measure the height of your TV and divide it by two. Then subtract that number from 42, and that’s how high the bottom of your TV should be from the floor.

Does TV mount size matter?

Generally speaking, TV size and weight go hand in hand. The larger the TV, the heavier it is. Mounts will have a maximum weight rating, as well as a range of VESA standards that are compatible. As long as your monitor falls within the designated guidelines, the mount should easily hold the weight of your TV.

Where are the mounting holes on my TV?

Locate the four holes in the back of your television, you just need to measure these from left to right and top to bottom. By now you should know the horizontal and vertical distance, between the holes and therefore the VESA size of your TV.

How do I find the right TV mount?

1. Check your television’s specifications. Get a wall mount that is compatible with the exact specifications of your television. …
2. Choose the amount of swivel. Decide whether you want your wall mount to swivel or remain stationary. …
3. Decide whether you want a mount with an arm. …
4. Consider the price.

What if my studs are too far apart?

Studs that are too far apart can also create problems because the material between them will actually bow in some cases. … If your wall seems flimsy, you’re usually better off drilling directly into studs and securing the mount with lag bolts.

How do you hang a TV with too far studs?

2 Answers. The best way to deal with this problem is to first mount a suitable piece of 3/4″ plywood on the wall such that it spans to studs where it can be securely attached. The TV mount can then be mounted to the plywood using suitable screws that go into properly sized pilot holes.

How do I center my TV?

1. 1 – Press “Menu” and find the “Picture” settings.
2. 2 – Go to “Screen” and then press “Enter”.
3. 3 – Move arrows on the TV remote to center the screen.
4. 4 – Once the screen is manually centered press “Enter”.
5. 5 – When the TV screen is perfectly centered press “Exit”.

Where should I place my TV?

Spacing. First of all, it’s always best to put the television at eye level. This is best so that when you are seated, you’re not straining your neck or eyes by looking up or down to see the screen. Usually, about 4 feet off the ground is good.

Do all monitors have mounting holes?

The simple answer to this question is yes, all monitors can be mounted. The vast majority of monitors today come with a mounting plate on the back, which makes it extremely easy to use popular monitor mounting products. Even older monitors or old CRTs that don’t have this setup can still be mounted.

What is VESA on a TV?

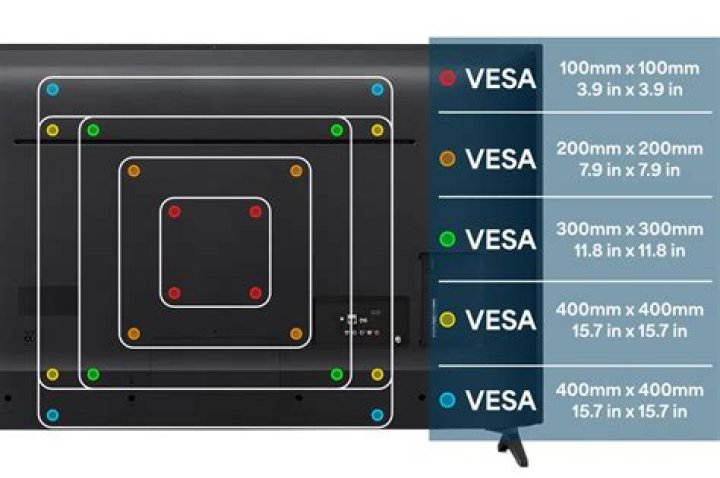

A VESA pattern refers to the configuration of the four mounting holes on the back of a flat panel TV or computer monitor. For example, in a 100 x 100 mm VESA pattern, the screw holes are arranged in a square 100 mm apart. Before you select a display mount, check the back of your display for the VESA mounting holes.

Can I use the same TV mount?

Most TV mounts follow compatibility standards set by the Video Electronics Standards Association, or VESA. … This standard ensures that all VESA-compatible TVs and mounts are totally interchangeable. It’s a good bet that any TV mount sold today is VESA-compatible, but you should always confirm, just to be sure.

How heavy is a 65 inch TV?

The TV’s weight is 55.1 pounds.

Is it better to wall mount a TV or put it on a stand?

One of the benefits of having a wall-mounted TV in your room is that it helps you save space. It eliminates the need for a stand or table that will usually take up space on the floor. … With wall-mounted TVs, you can reduce clutter and hide wires with ease.

How high should a 65 inch TV be off the ground?

As a rule, a 42” television should be mounted about 56 inches from floor to TV center, a 55” TV should be around 61 inches, a 65” TV should be around 65 inches’ floor to center, and a 70” television should be mounted about 67 inches to the center of the screen.

At what height should a 55 inch TV be mounted?

How High Should a 55-Inch TV Be Mounted? A 55” TV should be around 61 inches from the floor to the center of the TV screen.

How high should I hang my 50 inch TV?

A 50-inch TV should be mounted with the top of the TV approximately 67 inches from the floor. You can measure how far down the TV the mount attaches to know how many inches below 67 to install the mount. This mounting height will likely be about 64-65 inches from the floor.

How high should a 50 inch TV be from the floor?

For example, if you have a 50 inch TV, it’s about 24 inches tall. So if you plan on watching TV while sitting on the couch, you’ll have to take half of 24 (that’s 12) and subtract it from 42—that gives you 30. The bottom of your 50 inch TV, then, should be 30 inches from the floor.

Can you hang a 55 inch TV?

If you’re unsure of what size of a wall mount to use for mounting your TV, a 55 inch TV wall mount is a safe bet for a number reasons. … It’s a relatively sturdy, durable size that can easily adjusted, and some models can expand in size from 26 inches to up to as large as 84 inches.

Can I put a 55 inch TV on a 50 inch stand?

TV Stand SizeRecommended Minimum TV Size (Diagonal)Recommended Maximum TV Size (Diagonal)50″54″58″55″59″63″65″70″73″>70″70″>70″

Do TV mounts go by weight or size?

TV size and weight are the two deciding factors for what mount you can get. Every size/weight I checked was available in flush, tilt, and full-motion designs. Here’s the most interesting bit: Mounts designed for a certain size TV (50 inches, say) can support nearly every TV of that size.

Do all TVs have same mounting holes?

Not every mount will be compatible with every TV. In order for a mount to work with your TV, the mount needs to fit the hole pattern on the back of your TV.
