Are Sloan diaphragms interchangeable?
Are Sloan diaphragms interchangeable?
A: In general the bodies of these flushometers are identical and the parts for each are interchangeable. The webinar identified the similarities and differences between Regal, Sloan and Royal but if you have additional questions please contact Sloan Tech Support.
Why does my Sloan urinal keep running?
This occurs when a control stop does not open all the way when the unit is flushed, which then causes the water pressure to not be high enough for the diaphragm to function properly and reset. This causes water to continuously run into the unit.
How do you fix a urinal that keeps running?
How do you fix a urinal that won’t stop running?
- Locate Secondary Water Shut Off. Located under the first joint from the toilet wall or tile is the secondary water shut off.
- Stop the Flow of Water.
- Loosen the Flush Head Screw.
- Remove the Flush Head Cap.
- Locate the Diaphragm.
- Turn On the Water.
What would make a urinal keep running?
Why A Urinal Keeps Running In most cases, there is a problem with the diaphragm. The diaphragm moves up and down to allow water to flush the toilet. A small amount of debris can become stuck under the diaphragm, causing it to remain open after a flush, or it can wear out.
What does a diaphragm do in a toilet?
The natural compliance of the Diaphragm forces the centre down as the difference in water pressure above (high pressure) and below (low pressure) allows it. As the Diaphragm closes the water flow from Inlet to Outlet diminishes and the Outlet Pipe pressure falls.
Do you need to replace the diaphragm on a Sloan flushometer?
Sloan Diaphragm Kits are arguably the most popular part within a Sloan flushometer that needs to be replaced.
What is the model number of a Sloan flush valve?

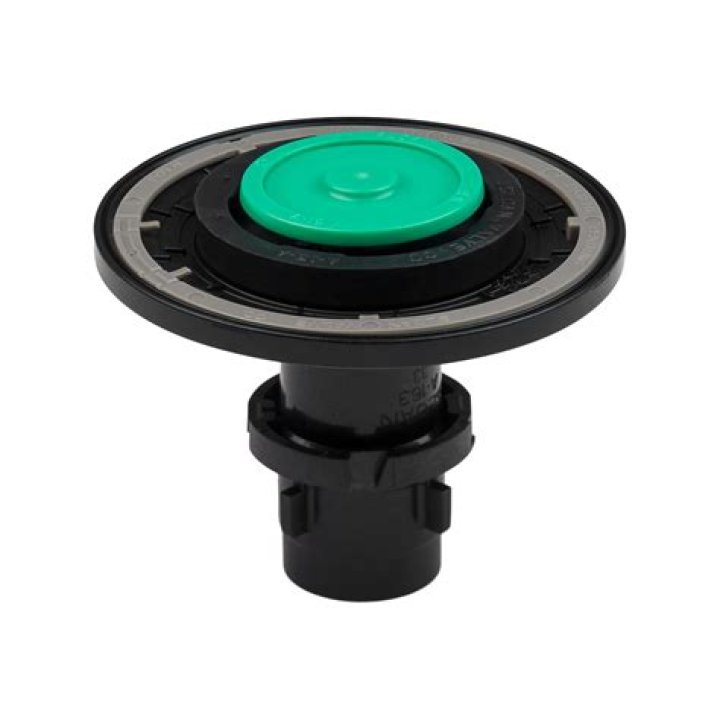

Part #08137 Drop-In Repair Kit Urinal w/ Batteries – 1.0 or 1.5 GPF (Sloan model number EBV1022A) The Sloan drop-in kits listed above are for Sloan Royal flushometers. They can also be installed in Regal flush valves for a longer lasting Regal diaphragm assembly replacement.
Can you use regal flush valves with Sloan?
Note: Dual-filtered permex assemblies do not come installed in Regal flushometers, but they can be installed in them when replacing regal flush valve drop-in kits. The Sloan drop-in kits listed above are for the following model Sloan flush valves: G2, ECOS, and SOLIS. They are designed for closet applications only.
When did Sloan come out with Permex diaphragm assemblies?
Sloan came out with Permex diaphragm assemblies in 1998, and have been installing them in new Royal Flushometers ever since. These assemblies feature a dual-filtered bypass, meaning that instead of only one bypass hole for water to filter through, there are two. This lessens the strain on the bypass and makes clogging less likely.
Sloan Diaphragm Kits are arguably the most popular part within a Sloan flushometer that needs to be replaced.
How to fix Sloan Regal and Royal flushometer valves?
Solution: Install Sloan handle repair kit (B-50-A) or replace handle. Cause: Relief valve is worn. Solution: Replace inside parts kit. Problem: Insufficient volume of water to adequately siphon fixture. Cause: Control stop not open enough. Solution: Adjust control stop for desired delivery of water.
Part #08137 Drop-In Repair Kit Urinal w/ Batteries – 1.0 or 1.5 GPF (Sloan model number EBV1022A) The Sloan drop-in kits listed above are for Sloan Royal flushometers. They can also be installed in Regal flush valves for a longer lasting Regal diaphragm assembly replacement.
Sloan came out with Permex diaphragm assemblies in 1998, and have been installing them in new Royal Flushometers ever since. These assemblies feature a dual-filtered bypass, meaning that instead of only one bypass hole for water to filter through, there are two. This lessens the strain on the bypass and makes clogging less likely.
